2009 Suzuki VL1500 Rear Caliper Diagram

← All diagrams

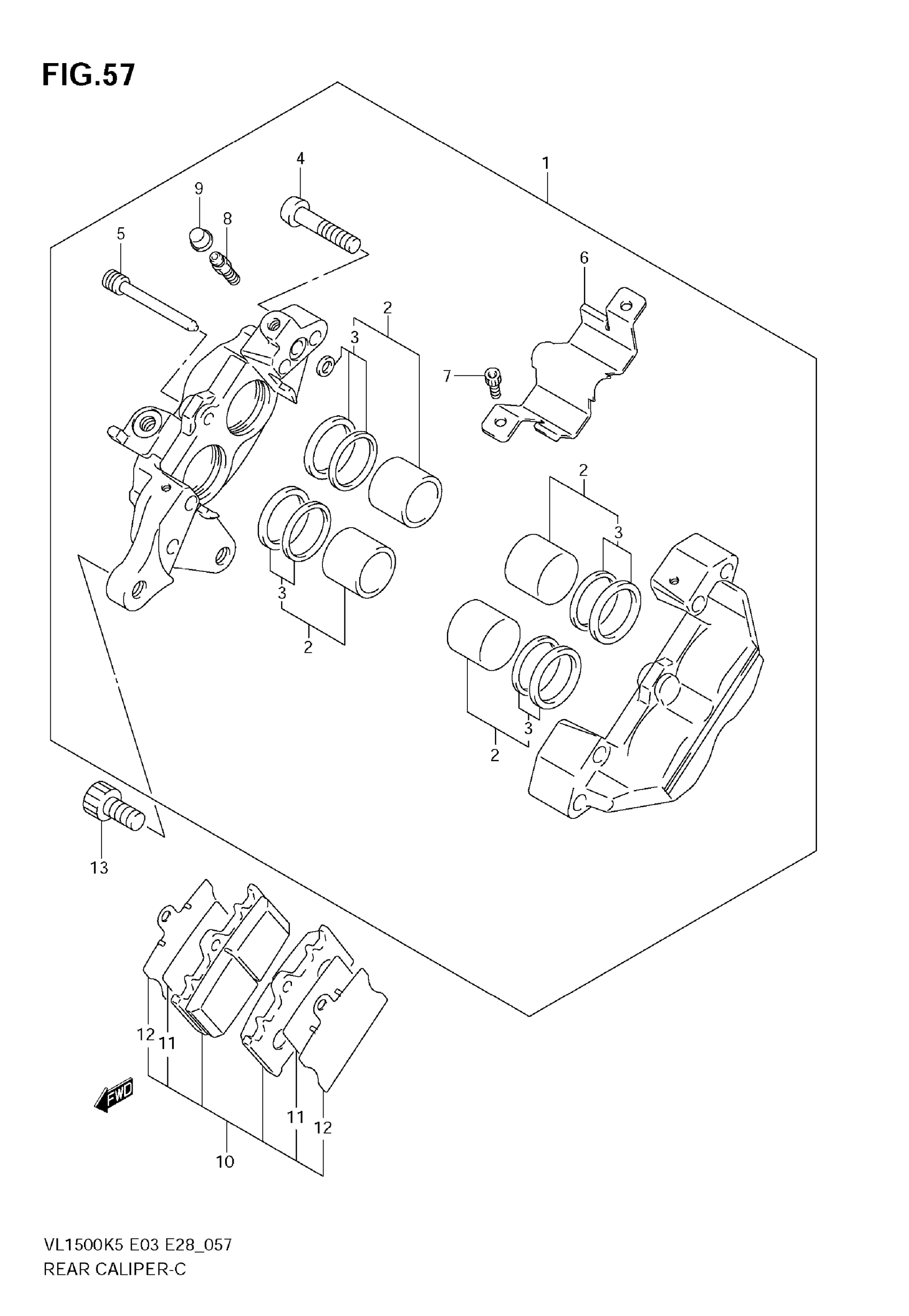

Find the part on the Rear Caliper diagram for your 2009 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VL1500 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 9

69100-10F10-999

1
Out of stock

2

PISTON SET

69100-10810

1
Out of stock

3

SEAL SET, PISTON

59300-18820

1
Out of stock

4

BOLT

59145-18G00

4

$11.20

In stock

5

PIN, PAD

59141-40F00

1
Out of stock

6

COVER

69151-10F10

1
Out of stock

7

.SCREW

59153-22D00

2
Out of stock

8

BLEEDER

59121-18410

1
Out of stock

9

CAP, BLEEDER

55156-66310

1
Out of stock

10

PAD & SHIM SET | Includes Item(s) 11 - 12

69100-10850

1
Out of stock

11

SHIM, PAD

69171-10F10

2
Out of stock

12

COVER, SHIM

69172-10F10

2
Out of stock

13

BOLT This part replaces 07130-10203.

07130-1020B

2
Out of stock
