Description

Price

1

CALIPER ASSY, FRONT RH

59100-33DD0-999

$380.90

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 12

59300-33DD0-999

Unavailable

2

PISTON SET This part replaces 59300-33831.

59301-20820

$35.39

3

SEAL SET, PISTON

59300-33841

$14.15

4

.SPRING, PAD RH

59115-33D00

$19.78

4

.SPRING, PAD LH

59315-33D00

$14.03

5

BOOT

59112-44B00

$8.15

6

.PIN, PAD

59141-44B01

$8.56

7

.INSULATOR, AXLE

59313-36500

$5.48

8

.CLIP, PAD PIN

69142-45000

$3.97

9

.CARRIER, CALIPER RH

59150-33D01

$123.97

9

.CARRIER, CALIPER LH

59350-33D01

$123.97

10

.GUIDE, PAD

59116-33D00

$7.51

11

BLEEDER

59121-18410

$7.99

12

CAP

55156-66310

$4.73

13

PAD & SHIM SET RH

59102-33880

$76.75

13

PAD & SHIM SET LH | Includes Item(s) 14 - 15

59302-33870

$73.68

14

.SHIM, PAD

59171-33D00

$16.77

15

.SHIM, PAD NO.2

59172-33D00

$18.93

16

BOLT

09106-10038

$4.53

17

CAP, BOLT

09250-08014

$2.80

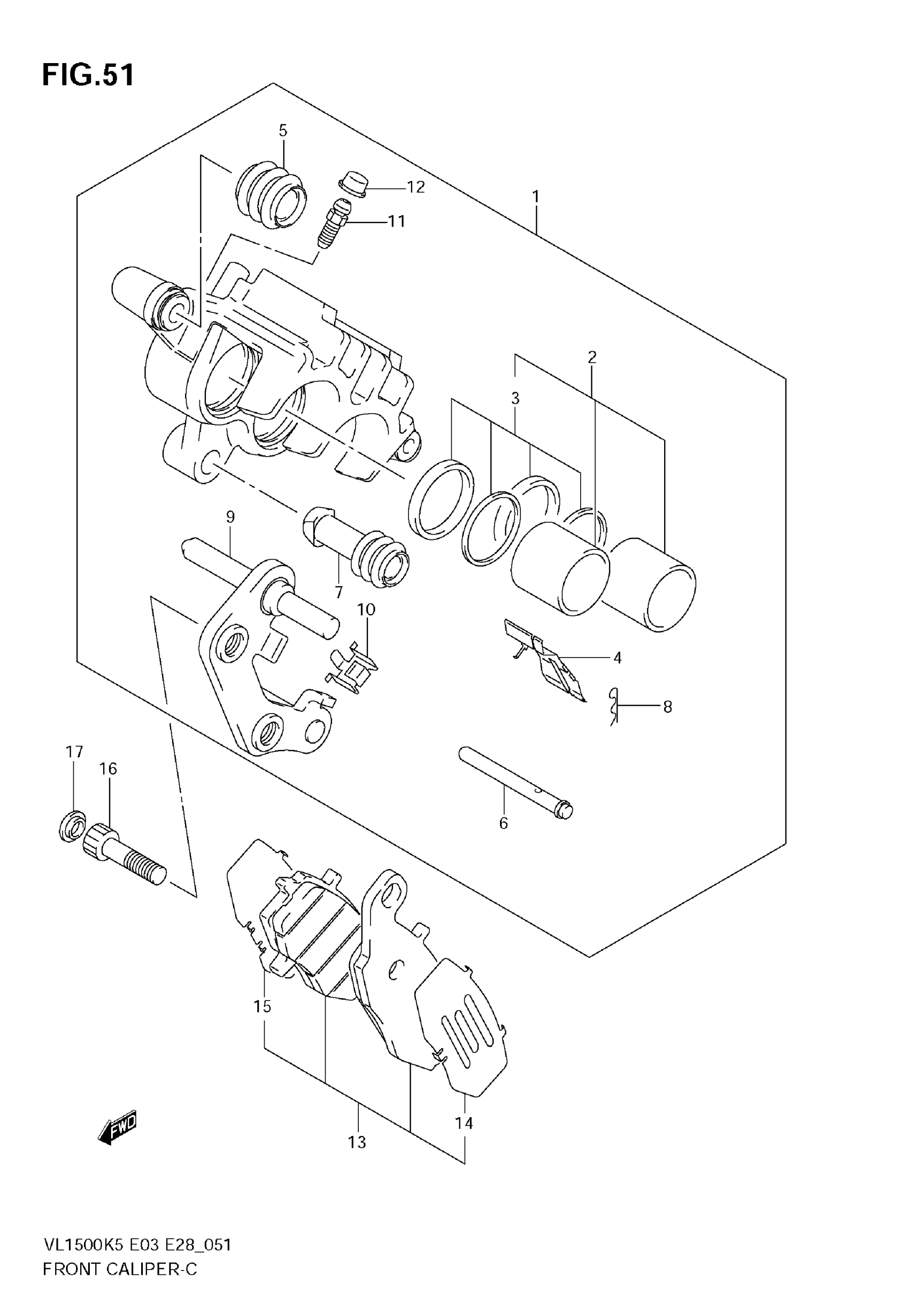

Suzuki VL1500 (2009) FRONT CALIPER Diagram
