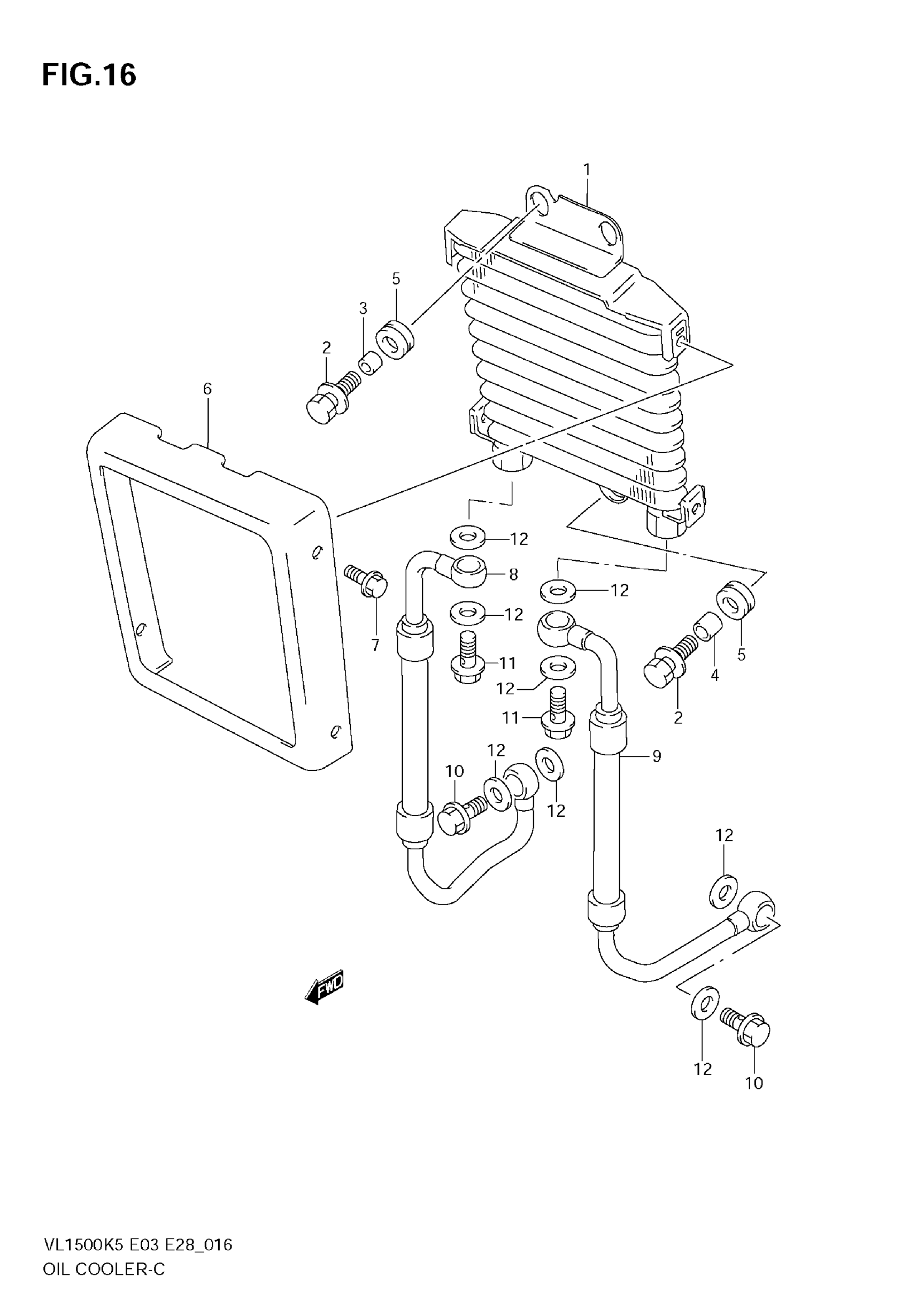

Suzuki VL1500 (2009) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-10F00

$732.28

2

BOLT

09116-06167

$2.19

3

SPACER

09180-06310

$1.91

4

SPACER, LOWER

09180-07004

$2.30

5

CUSHION

09320-10015

$2.54

6

COVER, OIL COOLER

16621-10F00

$145.32

7

BOLT

09139-06091

$3.04

8

HOSE, OIL COOLER RH

16460-10F10

$170.76

9

HOSE, OIL COOLER LH

16470-10F10

$193.52

10

BOLT, OIL HOSE UNION

09360-14012

$10.86

11

BOLT, OIL HOSE UNION

09360-14009

$14.18

12

.GASKET (14X20X1.5)

09168-14015

$2.03
