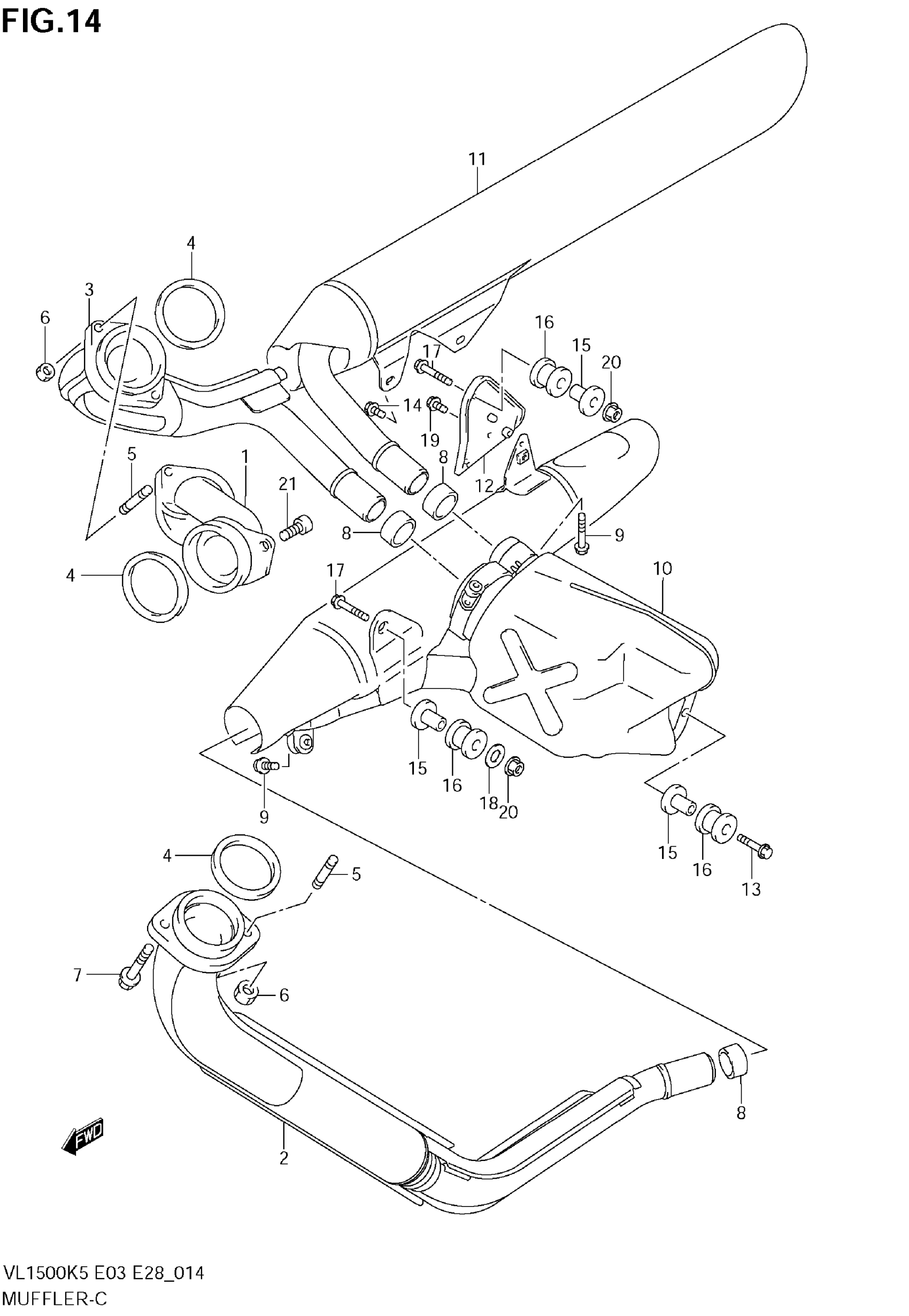

Suzuki VL1500 (2009) MUFFLER Diagram

#

Description
Price

1

MANIFOLD, EXHAUST REAR

14111-10F01

$202.92

2

PIPE, EXHAUST FRONT RH

14150-10FA0

Unavailable

3

PIPE, EXHAUST REAR LH

14160-10FA0

Unavailable

4

GASKET, EXHAUST PIPE

14181-10F00

$12.91

5

STUD BOLT

01421-0820A

$1.91

6

NUT

08313-20087

$2.19

7

BOLT, FRONT UPPER

09104-08038

$5.07

8

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$15.57

9

BOLT

09106-08137

$5.92

10

MUFFLER, LOWER RH | MODEL K5 E3,E28

14305-10FC0-H01

Unavailable

10

MUFFLER, LOWER RH | MODEL K5 E33 MODEL K6/K7/K8/K9

14305-10FB0-H01

Unavailable

11

BODY, MUFFLER UPPER LH | MODEL K5 E3,E28

14340-10FC0-H01

Unavailable

11

BODY, MUFFLER UPPER LH | MODEL K5 E33 MODEL K6/K7/K8/K9

14340-10FB0-H01

Unavailable

12

BRACKET, MUFFLER SUPPORT

14770-10FA0

$31.05

13

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

14

BOLT (8X16) | MODEL K5/K6 This part replaces 01550-08163.

01550-0816A

$2.32

14

BOLT, MUFFLER SUPPORT | MODEL K7/K8/K9

09118-08118

Unavailable

15

SPACER

09180-08156

$6.70

16

CUSHION

09320-12073

Unavailable

17

BOLT, MUF SUPPORT RH

09103-08004

$2.53

18

WASHER, MUF SUPPORT RH FRONT

09160-08146

$2.60

19

BOLT, MUF BODY SUPPORT RH

09103-10310

$3.10

20

NUT, MUFFLER RH

08361-2508A

$1.97

21

BOLT, REAR MUFFLER

07130-0825B

$3.37
