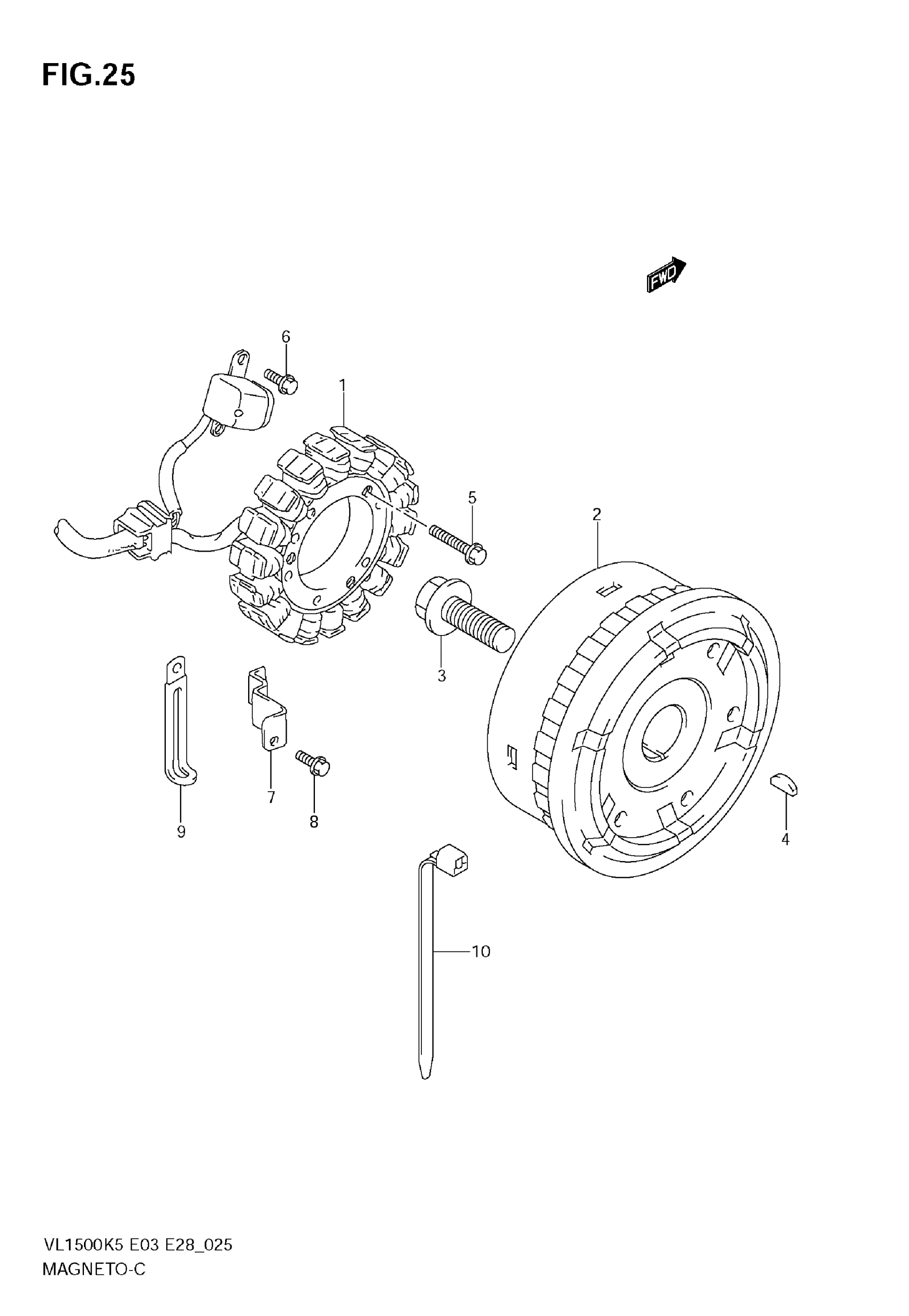

Suzuki VL1500 (2009) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL K5/K6/K7 This part replaces 32101-10F10.

32101-10F12

$662.48

1

STATOR ASSY | MODEL K8/K9 This part replaces 32101-10F11.

32101-10F12

$662.48

2

ROTOR ASSY

32102-10F10

$663.43

3

BOLT, ROTOR (14X43)

09103-14001

$11.82

4

KEY

09420-05007

$4.60

5

BOLT, STATOR

01547-0630B

$2.73

6

BOLT

01547-0510B

$2.97

7

CLAMP, LEAD WIRE

32371-45C00

$4.58

8

BOLT

01547-0510B

$2.97

9

CLAMP (L:45)

09404-06429

$1.83

9

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

10

CLAMP (L:165)

09407-18402

$2.19
