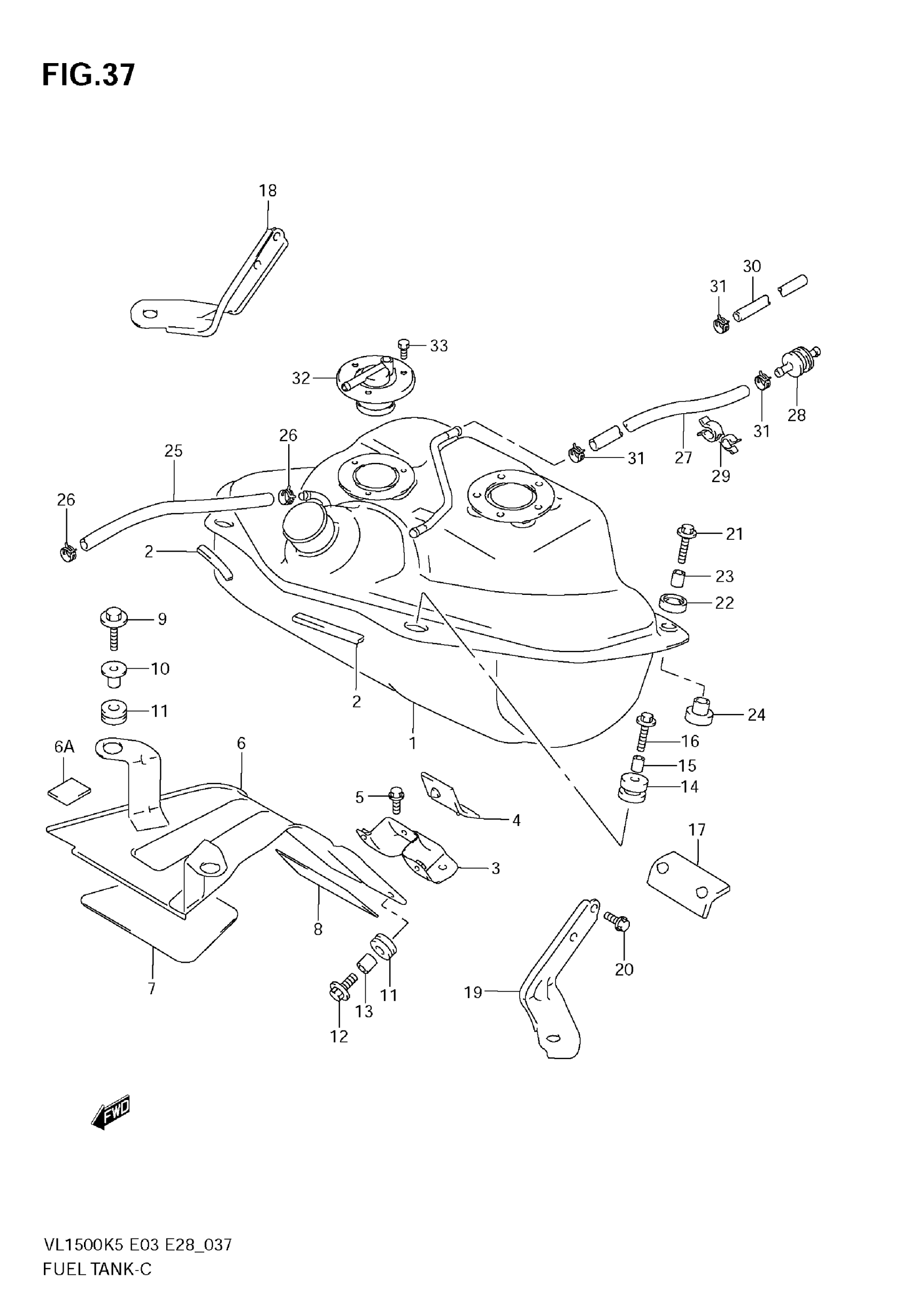

Suzuki VL1500 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK COMP,FUEL This part replaces 44110-10FA0.

44110-10FA1

$924.75

2

MOLDING

68241-04X50-300

$7.32

3

BRACKET, FRONT

44130-10F00

Unavailable

4

CUSHION, BRACKET | MODEL K5/K6

44500-10830

Unavailable

4

CUSHION, BRACKET | MODEL K7/K8/K9

44511-10F10

Unavailable

5

BOLT

01550-0610B

$2.42

6

COVER, FUEL TANK FRONT

44270-10F02

Unavailable

6A

CUSHION

61544-94500

$1.68

7

SHIELD, COVER UPPER

44267-10F00

Unavailable

8

SHIELD, COVER LOWER

44268-10F00

Unavailable

9

BOLT, COVER UPPER

09116-06171

$3.08

10

WASHER

09169-06070

$4.77

11

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

12

BOLT, COVER LOWER

09116-06115

$1.97

13

SPACER

09180-06248

$2.12

14

CUSHION, FRONT

44512-10F00

Unavailable

15

SPACER

09180-06351

Unavailable

16

BOLT | MODEL K5/K6/K7

09116-06172

$2.50

16

BOLT | MODEL K8/K9

09116-06214

$2.50

17

CUSHION, REAR CENTER

44541-10F00

Unavailable

18

BRACKET, REAR RH

44150-10F00

Unavailable

19

BRACKET, REAR LH

44160-10F00

Unavailable

20

BOLT, BRACKET

01550-0610B

$2.42

21

BOLT, FUEL TANK REAR | MODEL K5/K6/K7

09116-06172

$2.50

21

BOLT, FUEL TANK REAR | MODEL K8/K9

09116-06214

$2.50

22

CUSHION, UPPER

09320-14022

$3.63

23

SPACER

09180-06271

$2.35

24

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

25

HOSE, AIR VENT (L:600!190)

09355-11165-600

$15.65

26

CLIP

09401-15404

$2.26

27

HOSE, TANK & VALVE (L:600!150) | MODEL K5/K6/K7

09355-54116-600

$12.06

27

HOSE, TANK & VALVE | MODEL K8/K9

44434-10FB0

Unavailable

28

VALVE,2 WAY CHECK

85451-75100

$46.78

29

CLAMP

09408-00140

Unavailable

30

HOSE, VALVE & CATCH (L:600!440) | MODEL K5/K6/K7

09355-54116-600

$12.06

30

HOSE, VALVE & CATCH | MODEL K8/K9

44435-10FB0

Unavailable

31

CLIP (ID:10.5,H:8)

09401-10409

$2.26

32

VALVE, FUEL CUT | MODEL K5/K6/K7

89485-65D00

$90.23

32

VALVE,FUEL CUT | MODEL K8/K9

89480-52DA0

$63.60

33

BOLT This part replaces 09117-05003.

01570-0510B

$2.53
