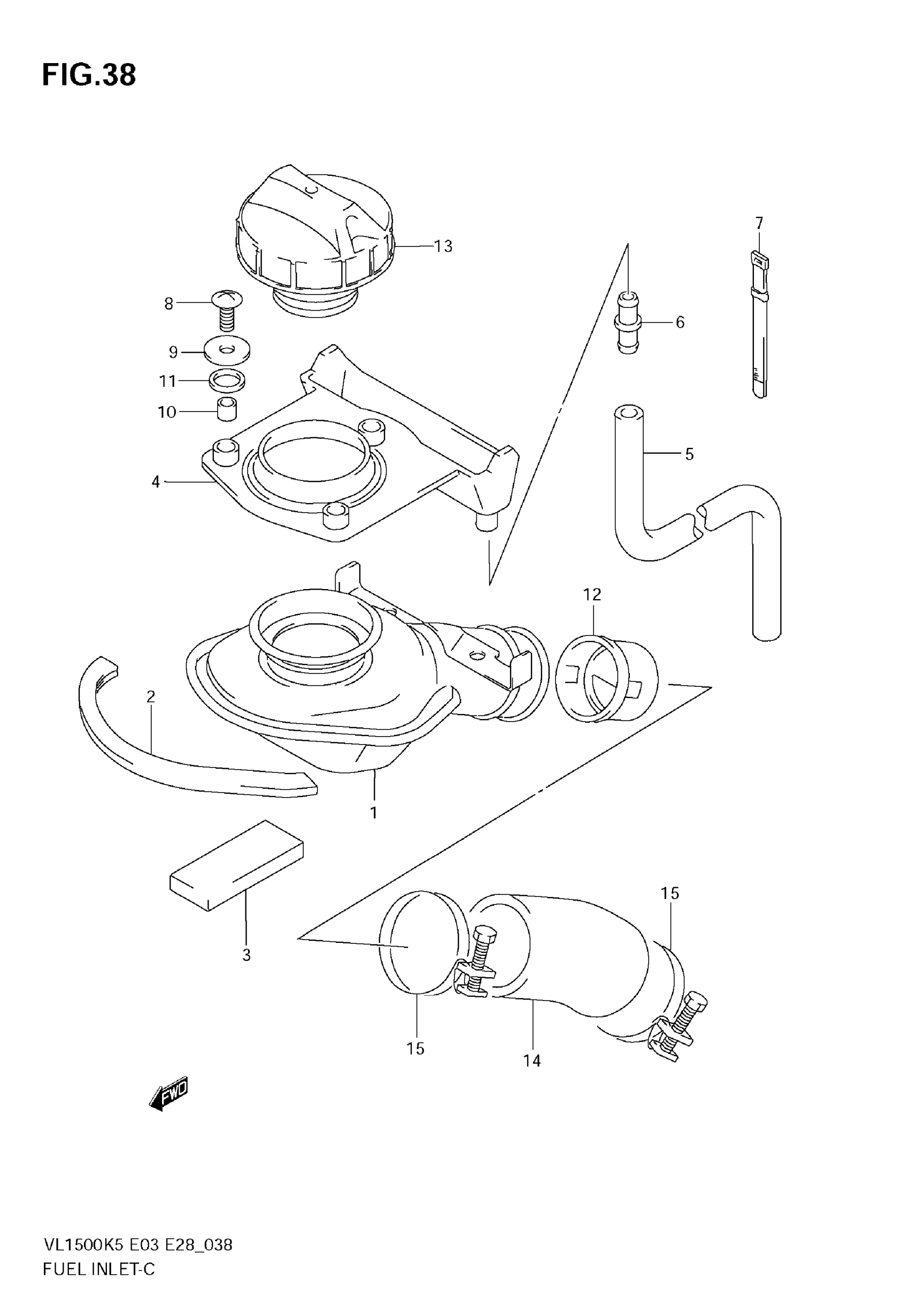

Find the part on the Fuel Inlet diagram for your 2009 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VL1500 Fuel Inlet Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INLET, FUEL TANK

44190-10F00

1
Out of stock

2

MOLDING

68241-04X50-300

1
Out of stock

3

CUSHION

11179-45D00

1
Out of stock

4

TRAY,FUEL TANK This part replaces 44261-10F00.

44261-10F01

1
Out of stock

5

HOSE(7X10.2X200 This part replaces 09352-70103-00B.

09352-70104-00B

1
Out of stock

6

JOINT

09367-08001

1
Out of stock

7

CLAMP

09407-18402

1
Out of stock

8

SCREW

02142-0516B

3
Out of stock

9

WASHER

09160-05046

3
Out of stock

10

SPACER

09180-05047

3
Out of stock

11

CUSHION,FUEL TA This part replaces 44559-10F00.

44559-10F01

3
Out of stock

12

VALVE, FUEL INLET

89280-50F00

1
Out of stock

13

CAP ASSY, FUEL TANK

44200-10F01

1
Out of stock

14

HOSE,FUEL TANK This part replaces 44422-10F00.

44422-10F01

1
Out of stock

15

CLAMP

09400-52313

2
Out of stock
