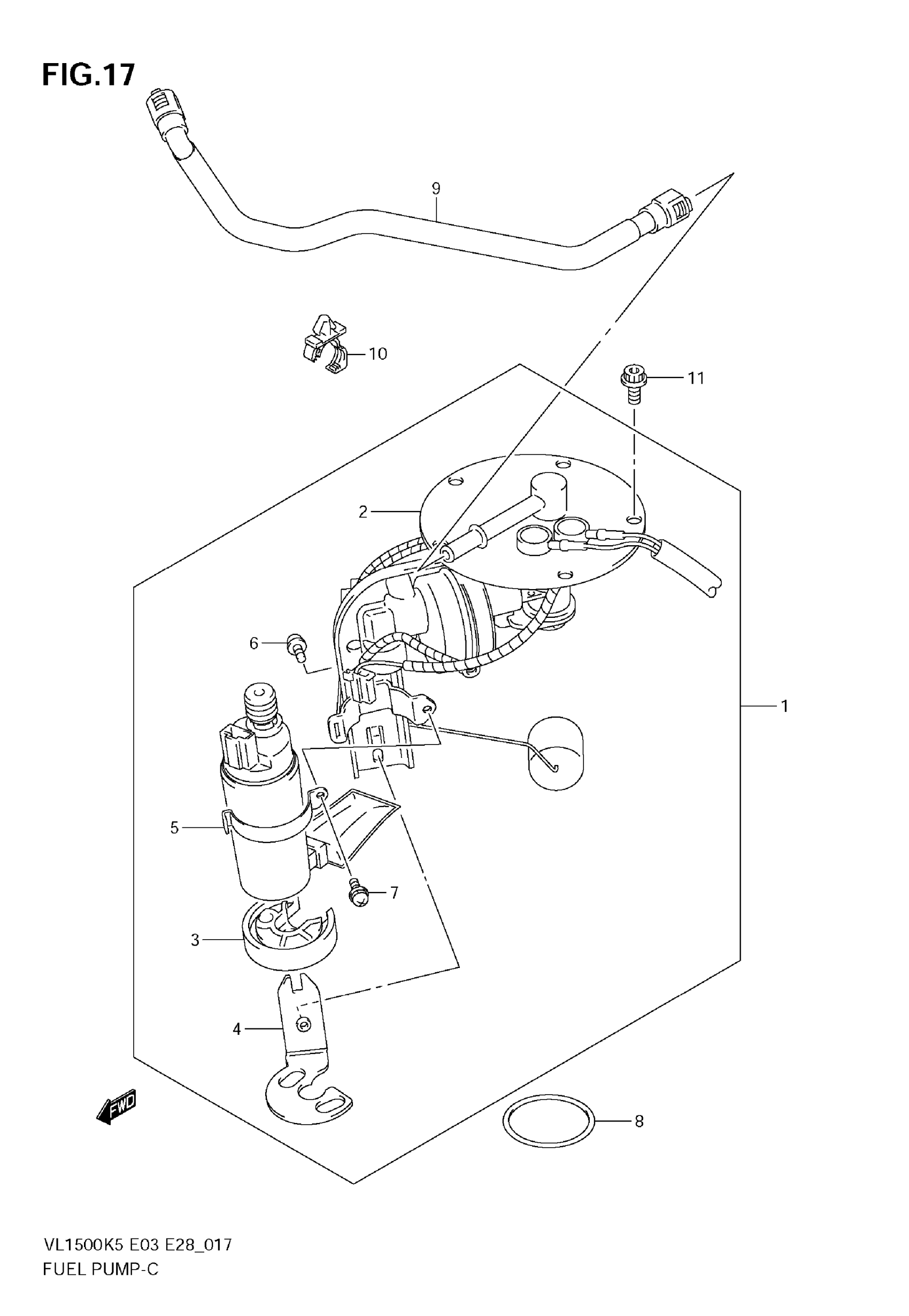

Suzuki VL1500 (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 7

15100-10F10

$663.63

2

PLATE ASSY

15110-10F00

$610.30

3

CUSHION, FUEL PUMP

15111-35F00

$9.11

4

HOLDER, FUEL PUMP

15112-10F00

Unavailable

5

BAND, FUEL PUMP

15115-10F00

Unavailable

6

SCREW

15116-10F00

$6.30

7

SCREW

15116-10F10

Unavailable

8

O-RING

15201-35F00

$26.41

9

HOSE,FUEL This part replaces 15810-10F00.

15810-10F01

$77.90

10

CLAMP

09403-12412

$3.85

11

BOLT

07120-0612B

$2.88
