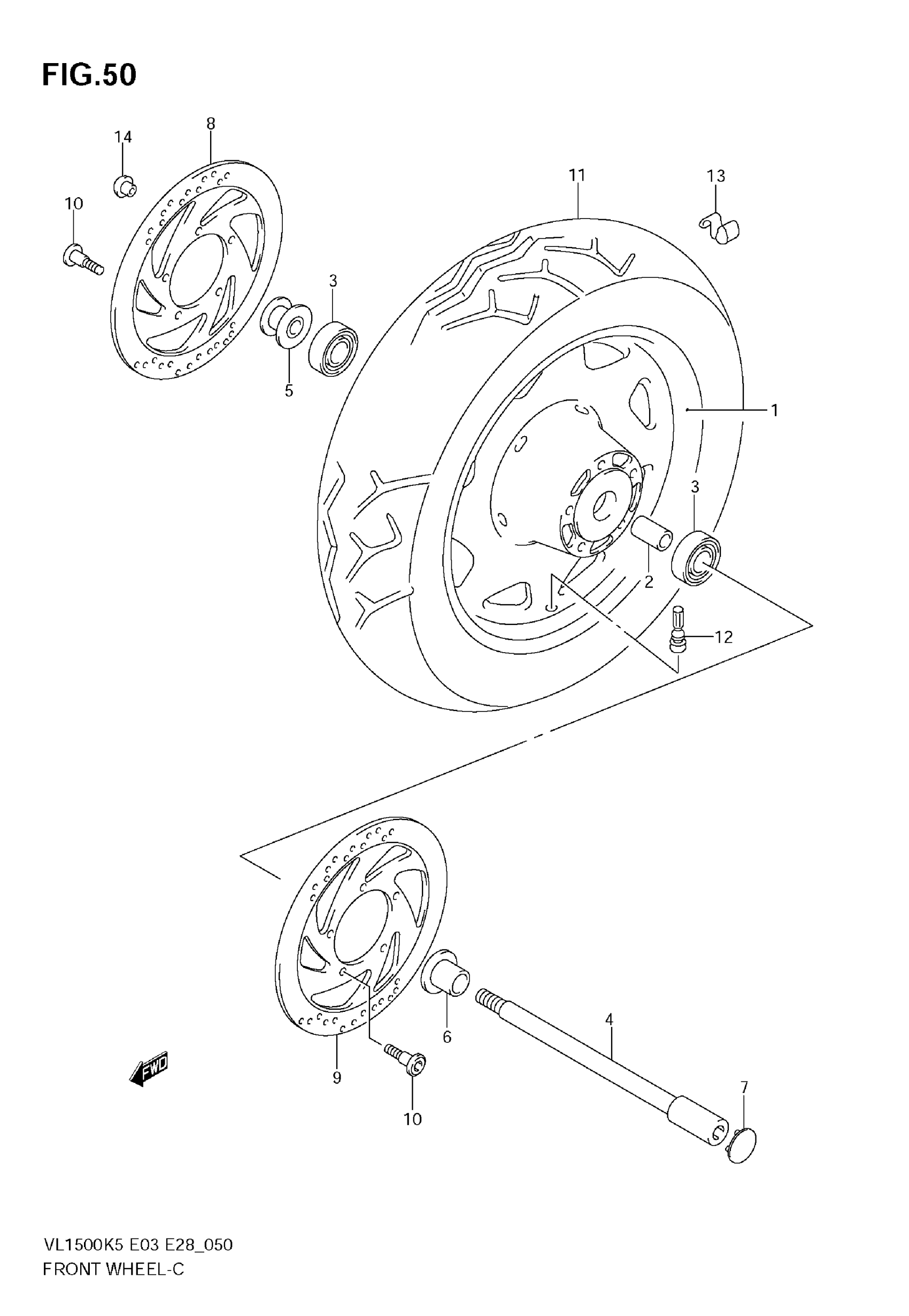

Suzuki VL1500 (2009) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (MT3.50X16) (SILVER)

54111-10F20-YAA

Unavailable

2

SPACER, HUB BEARING

54731-10F00

$20.22

3

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

4

AXLE, FRONT

54711-10F01

$125.17

5

SPACER, AXLE RH

54740-10F00

$26.88

6

SPACER, AXLE LH

54740-32C00

$18.43

7

CAP, LH

54792-38B00

$22.33

8

DISC, FRONT BRAKE RH

59211-10F10

$326.52

9

DISC, FRONT BRAKE LH

59221-10F10

Unavailable

10

BOLT, DISC

09106-08148

$4.80

11

TIRE, FRONT (150/80-16 71H) (BRIDGESTONE) | VL1500

55110-10F01

Unavailable

11

TIRE, FRONT (150/80-16M/C 71H) (BRIDGESTONE) | VL1500T

55110-10F10

Unavailable

12

VALVE ASSY, WHEEL RIM TR412

43130-24A00

$8.85

13

BALANCER, WHEEL NO.1

43222-73H10

$5.82

13

BALANCER, WHEEL NO.2

43224-73H10

$5.50

13

BALANCER, WHEEL NO.3

43226-73H10

$6.42

14

CAP, AXLE RH

54791-38B01

$5.58
