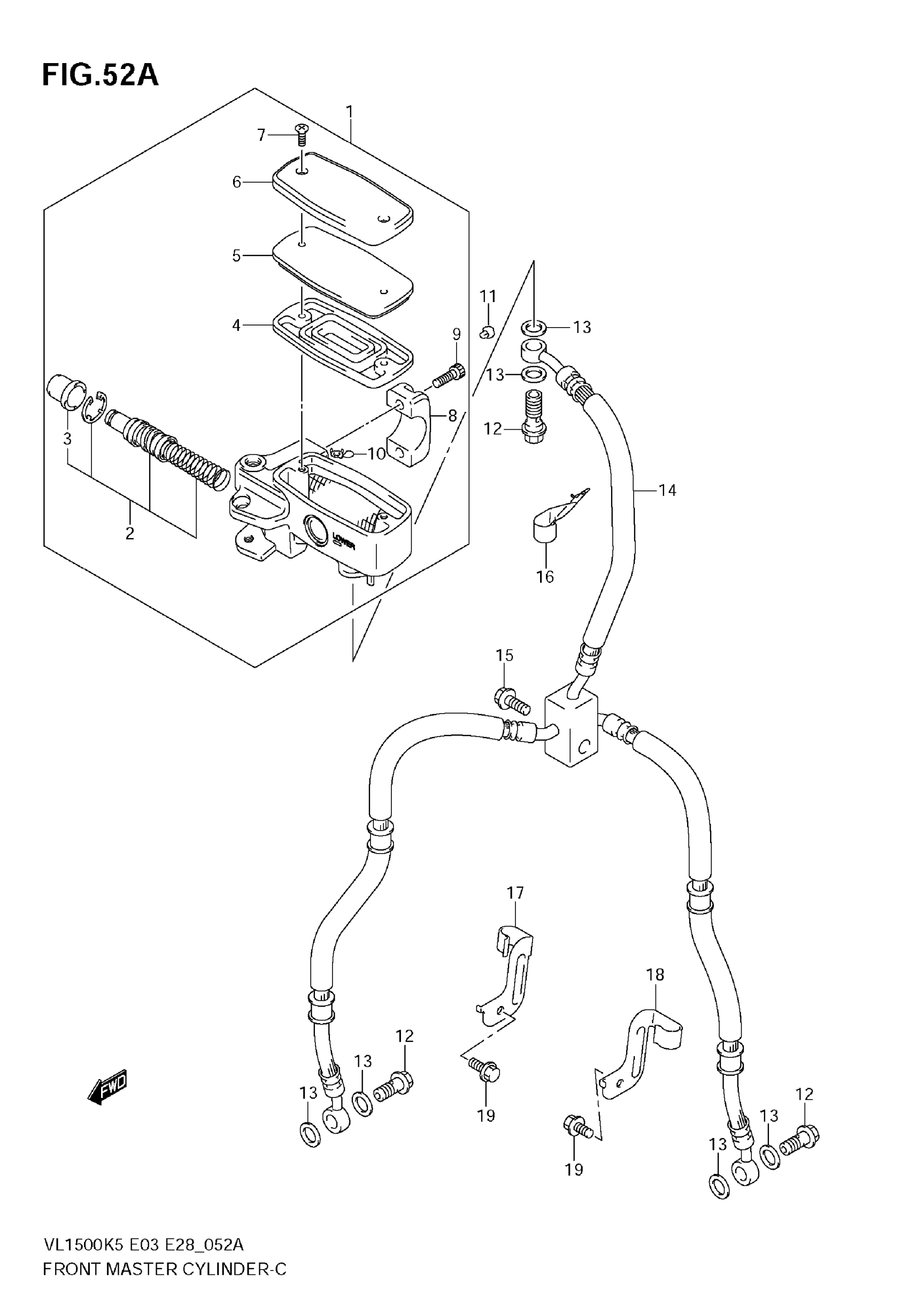

Suzuki VL1500 (2009) FRONT MASTER CYLINDER (MODEL K7/K8/K9) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-10FB1

Unavailable

2

PISTON & CUP SET

59601-45810

$54.75

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-10F00

$10.10

5

PLATE

57437-10F00

$21.03

6

CAP

59669-10F20

Unavailable

7

SCREW

02122-04127

$1.97

8

HOLDER

59671-10F10

Unavailable

9

BOLT

07130-06207

$3.04

10

PROTECTOR

59664-32F00

$11.68

11

CAP

09250-05008

$3.76

12

UNION | MODEL K7 This part replaces 09360-10042.

09360-10062

$6.43

12

BOLT | MODEL K8/K9

09360-10062

$6.43

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

HOSE, FRONT BRAKE | MODEL K7 This part replaces 59480-10F30.

59480-10F40

Unavailable

14

HOSE, FRONT BRAKE | MODEL K8/K9

59480-10F40

Unavailable

15

BOLT, BRAKE HOSE

09103-06272

Unavailable

16

CLAMP, FR BRAKE HOSE

59266-10F10

Unavailable

17

CLAMP, FR BRAKE HOSE RH

59268-10F10

Unavailable

18

CLAMP, FR BRAKE HOSE LH

59278-10F10

Unavailable

19

BOLT

09103-06222

$2.26
