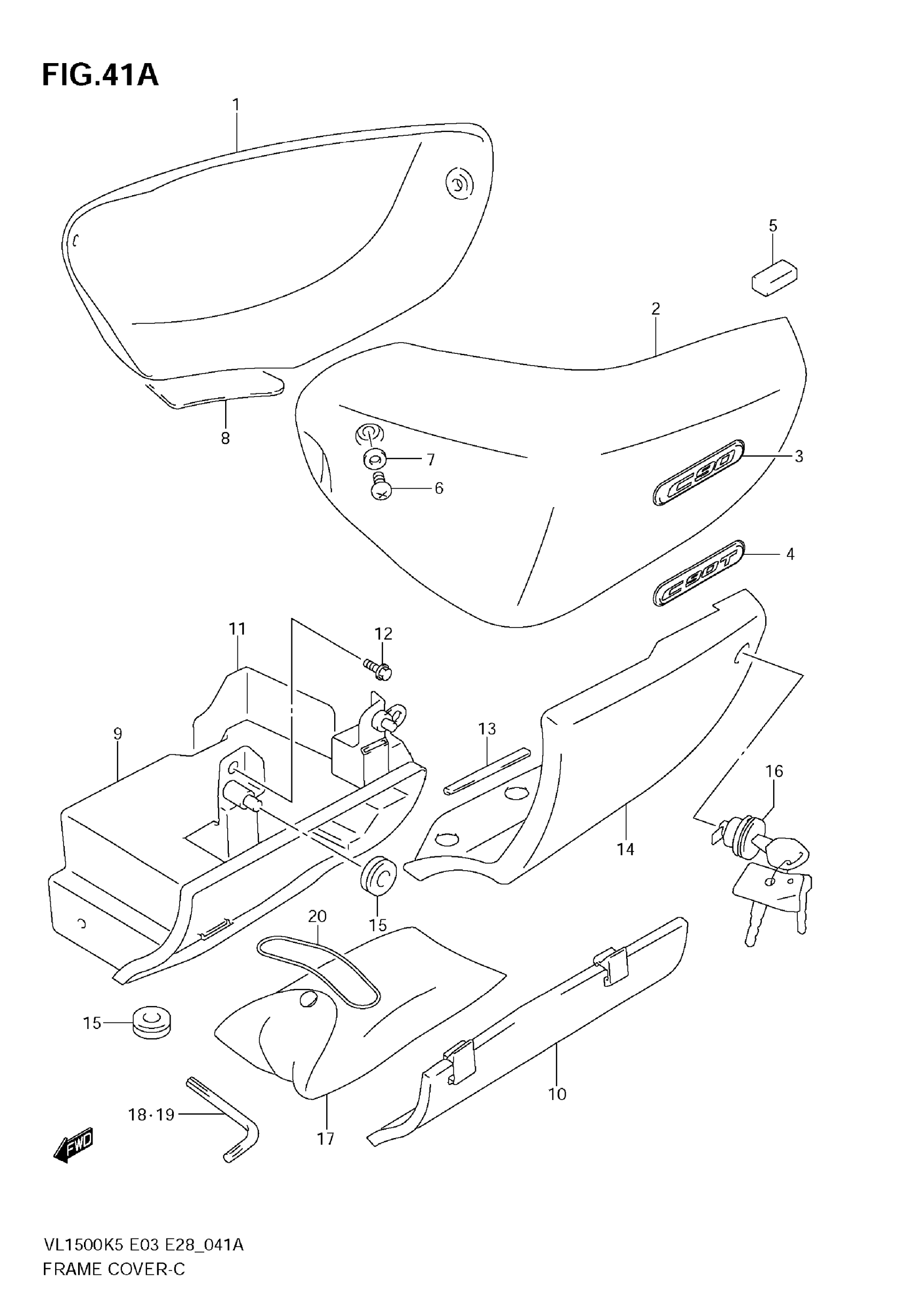

Suzuki VL1500 (2009) FRAME COVER (MODEL K7) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | VL1500T FOR YAY

47110-10F00-YAY

Unavailable

1

COVER, FRAME RH (GRAY) | VL1500T

47110-10F00-YHG

Unavailable

1

COVER, FRAME RH (BLACK) | VL1500 FOR YAY

47110-10F00-YAY

Unavailable

1

COVER, FRAME RH (RED) | VL1500 FOR CZW

47110-10F00-YHL

Unavailable

1

COVER, FRAME RH (WHITE) | VL1500 FOR CZZ

47110-10F00-YC3

Unavailable

2

COVER COMP,FRAM | VL1500T FOR YAY This part replaces 47210-10F00-YAY.

47210-10F00-13L

$346.60

2

COVER, FRAME LH (GRAY) | VL1500T

47210-10F00-YHG

Unavailable

2

COVER COMP,FRAM | VL1500 FOR YAY This part replaces 47210-10F00-YAY.

47210-10F00-13L

$346.60

2

COVER, FRAME LH (RED) | VL1500 FOR CZW

47210-10F00-YHL

Unavailable

2

COVER, FRAME LH (WHITE) | VL1500 FOR CZZ

47210-10F00-YC3

Unavailable

3

EMBLEM, "C90" | VL1500 This part replaces 68131-10FA0.

68131-10FA1

$38.60

4

EMBLEM, "C90T" | VL1500T This part replaces 68131-10FB0.

68131-10FB1

$34.55

5

CUSHION

47117-10F00

Unavailable

6

SCREW

09139-06030

$3.70

7

WASHER

09160-06094

$1.49

8

SHIELD, FRAME COVER RH

47166-10F00

Unavailable

9

BODY, TOOL HOLDER

47431-10F00

Unavailable

10

CAP, TOOL HOLDER

47432-10F00

$29.90

11

SHIELD, BODY

47436-10F00

Unavailable

12

BOLT

09113-06001

$2.73

13

MOLDING, LH

47212-10F00

$5.33

14

COVER, TOOL HOLDER

47440-10F00

Unavailable

15

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.60

16

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

17

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

18

HEXAGON SPANNER, 6

09816-00050

$5.03

19

HEXAGON SPANNER, 5

09816-00059

$8.45

20

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60
