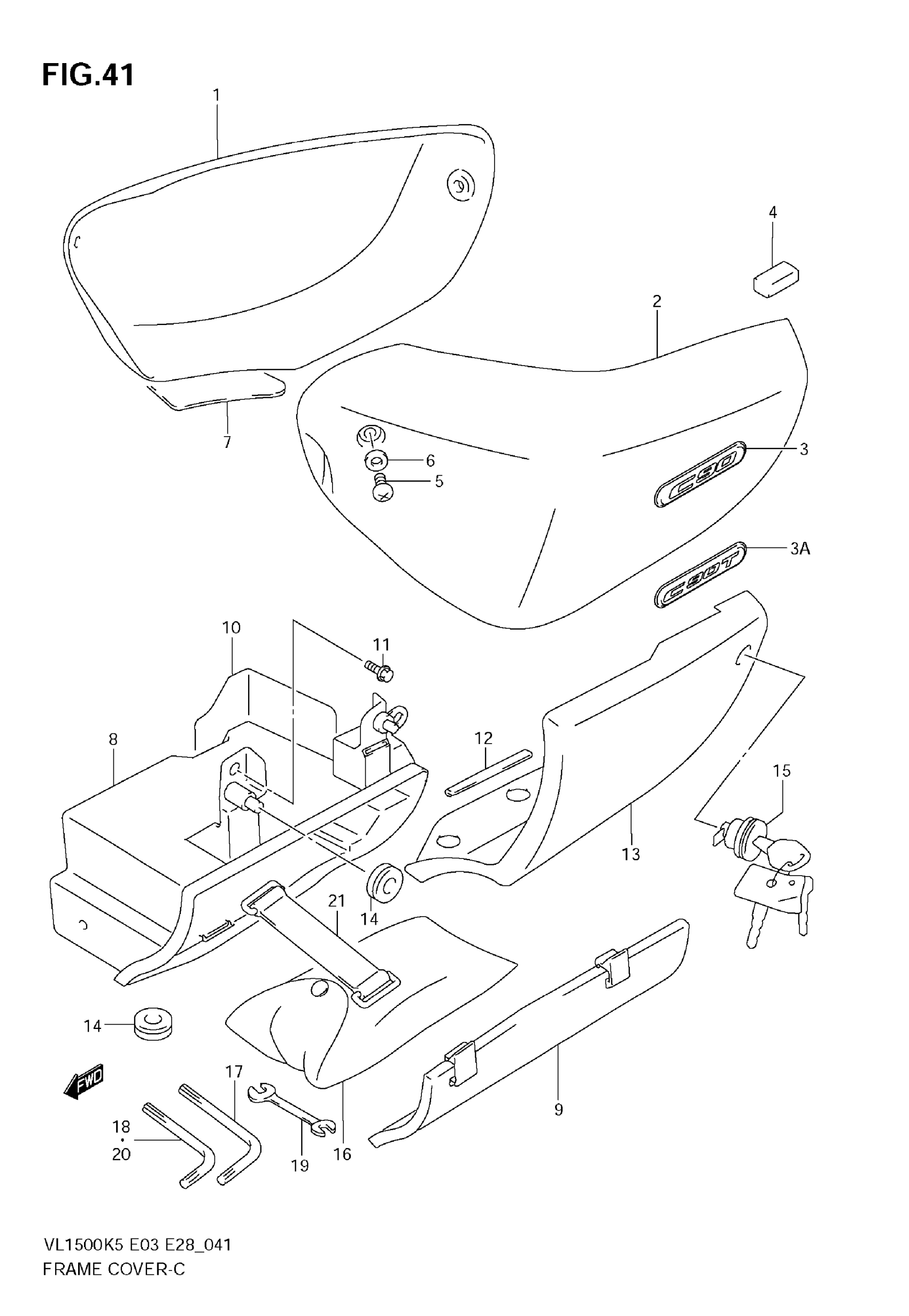

Suzuki VL1500 (2009) FRAME COVER (MODEL K5/K6) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | MODEL K5 FOR YAY

47110-10F00-YAY

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K5 FOR NY3

47110-10F00-YBA

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL K5 FOR AVU

47110-10F00-YM6

Unavailable

1

COVER, FRAME RH (BLACK) | VL1500K6/TK6 FOR YAY

47110-10F00-YAY

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL K6 FOR CFG

47110-10F00-YD8

Unavailable

1

COVER,FRAME,R(S | MODEL K6 FOR CFH This part replaces 47110-10F00-YAR.

47110-10F00-13L

$361.75

1

COVER, FRAME RH (GRAY) | VL1500TK6

47110-10F00-YHF

Unavailable

2

COVER COMP,FRAM | MODEL K5 FOR YAY This part replaces 47210-10F00-YAY.

47210-10F00-13L

$346.60

2

COVER, FRAME LH (BLUE) | MODEL K5 FOR NY3

47210-10F00-YBA

Unavailable

2

COVER, FRAME LH (SILVER) | MODEL K5 FOR AVU

47210-10F00-YM6

Unavailable

2

COVER COMP,FRAM | VL1500K6/TK6 FOR YAY This part replaces 47210-10F00-YAY.

47210-10F00-13L

$346.60

2

COVER, FRAME LH (SILVER) | MODEL K6 FOR CFG

47210-10F00-YD8

Unavailable

2

COVER COMP,FRAM | MODEL K6 FOR CFH This part replaces 47210-10F00-YAR.

47210-10F00-13L

$346.60

2

COVER, FRAME LH (GRAY) | VL1500TK6

47210-10F00-YHF

Unavailable

3

EMBLEM, "C90" | VL1500 This part replaces 68131-10FA0.

68131-10FA1

$38.60

3A

EMBLEM, "C90T" | VL1500T This part replaces 68131-10FB0.

68131-10FB1

$34.55

4

CUSHION

47117-10F00

Unavailable

5

SCREW

09139-06030

$3.70

6

WASHER

09160-06094

$1.49

7

SHIELD, FRAME COVER RH

47166-10F00

Unavailable

8

BODY, TOOL HOLDER

47431-10F00

Unavailable

9

CAP, TOOL HOLDER

47432-10F00

$29.90

10

SHIELD, BODY

47436-10F00

Unavailable

11

BOLT

09113-06001

$2.73

12

MOLDING, LH

47212-10F00

$5.33

13

COVER, TOOL HOLDER

47440-10F00

Unavailable

14

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.60

15

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

16

TOOL ASSY This part replaces 09800-21016.

09800-21073

$96.88

17

HEXAGON SPANNER, 12

09816-00139

Unavailable

18

HEXAGON SPANNER, 4

09816-00103

$6.17

19

SPANNER (8X10)

09813-00027

Unavailable

20

HEXAGON SPANNER, 5

09816-00059

$8.45

21

BAND, TOOL

09462-00067

$5.11
