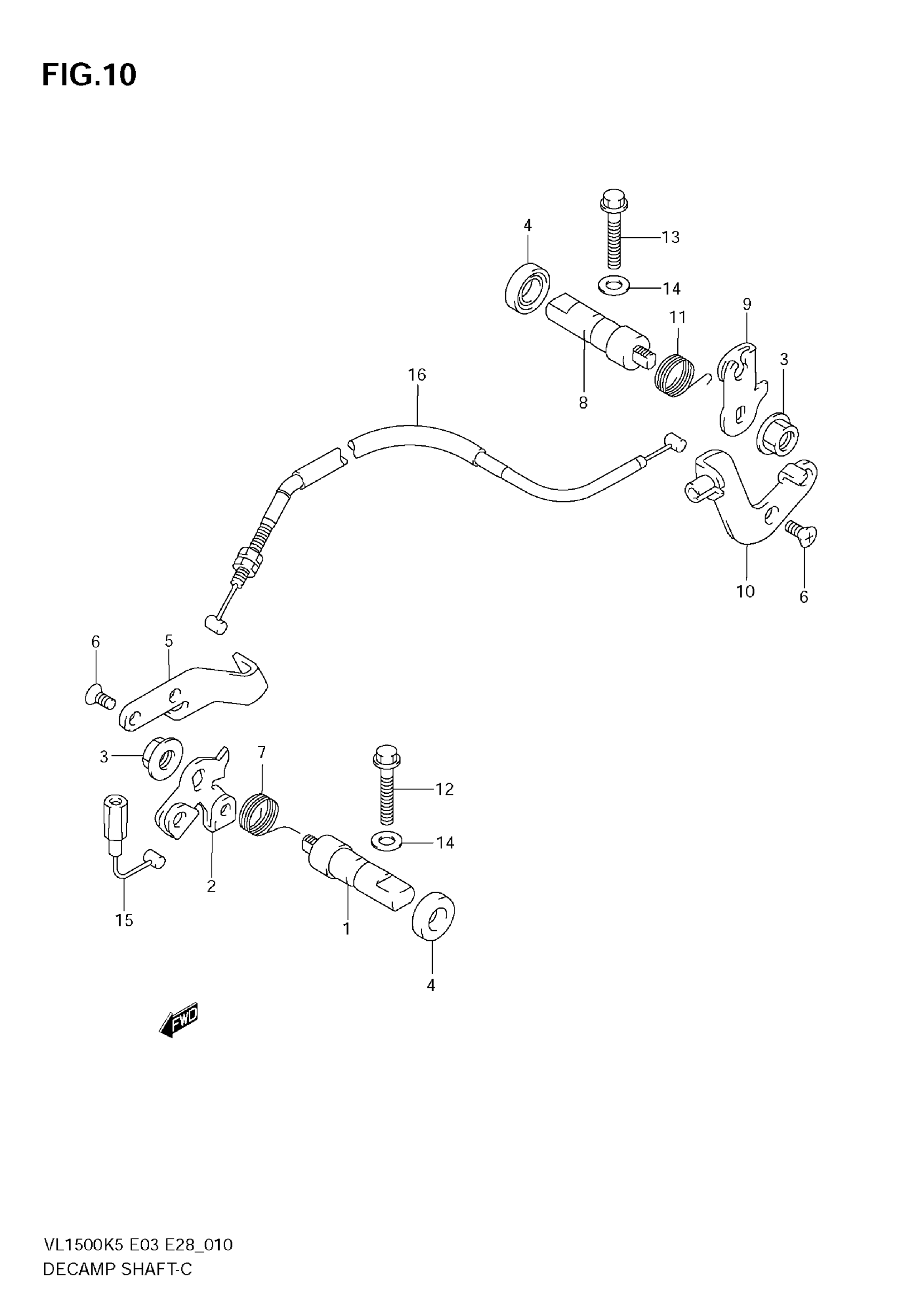

Suzuki VL1500 (2009) DECOMP SHAFT Diagram

#

Description
Price

1

SHAFT, DECOMP FRONT

12939-38B00

Unavailable

2

LEVER, DECOMP FRONT

12942-10F00

$9.42

3

NUT

08316-1008B

$2.66

4

OIL SEAL (10X20X6)

09282-10012

$7.98

5

HOLDER, DECOMP CABLE FRONT

12944-10F00

Unavailable

6

SCREW

02122-0510B

Unavailable

7

SPRING, DECOMP SHAFT FRONT

09448-17031

Unavailable

8

SHAFT, DECOMP REAR

12941-38B00

Unavailable

9

LEVER, DECOMP REAR

12952-10F00

Unavailable

10

HOLDER, DECOMP CABLE REAR

12950-10F00

Unavailable

11

SPRING, DECOMP SHAFT REAR

09448-17020

Unavailable

12

BOLT

02162-0630B

Unavailable

13

BOLT

02162-0625B

$2.10

14

GASKET

09168-06023

$2.35

15

CABLE, DECOMP FRONT

58900-10F00

$17.21

16

CABLE, DECOMP REAR

58910-10F10

$42.27
