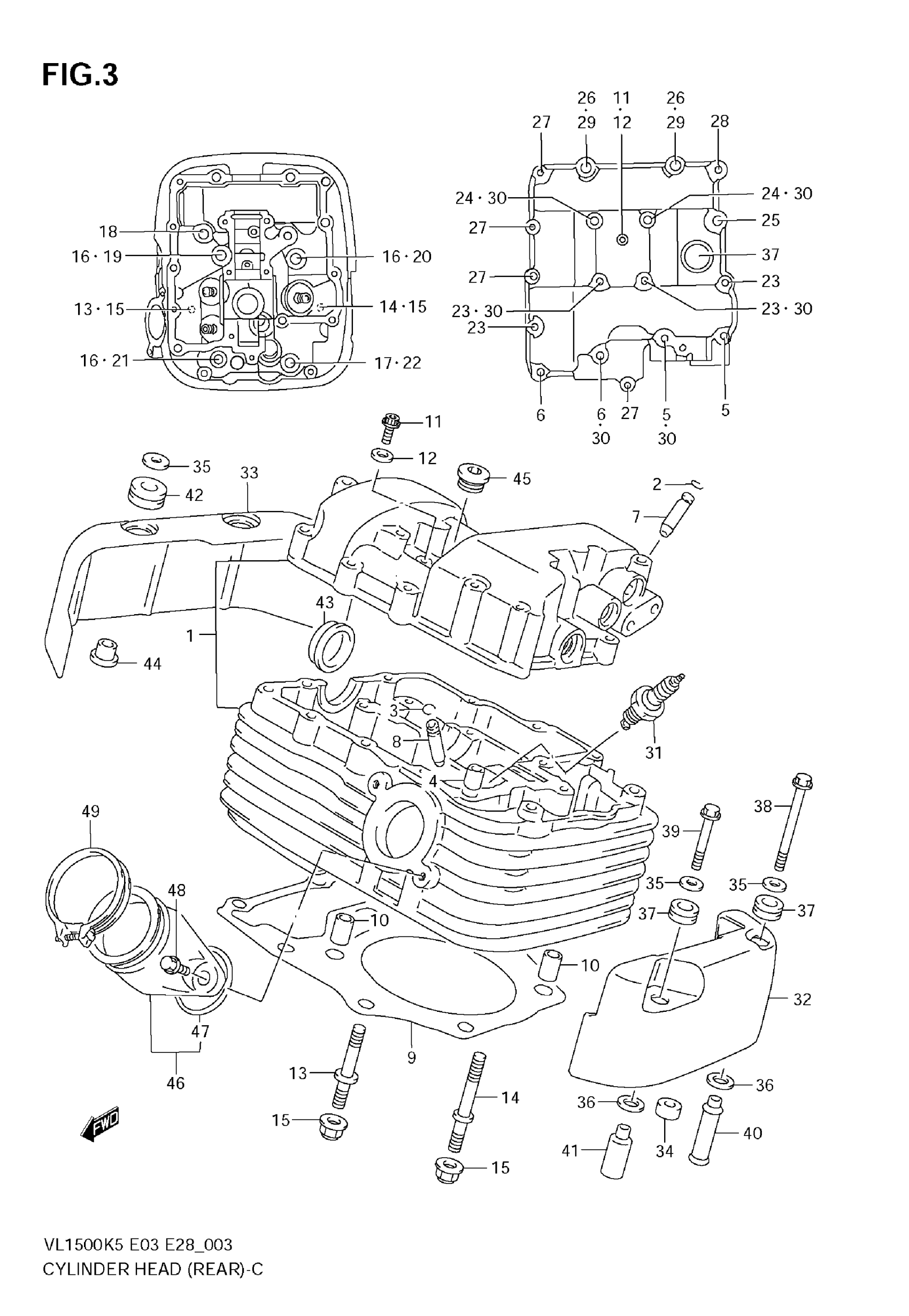

Suzuki VL1500 (2009) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 6

11103-10F10

Unavailable

2

.RING (10X85)

09381-10004

$1.50

3

RING, VALVE GUIDE EXHAUST

09381-10003

$2.47

4

PIN

09206-08001

$1.78

5

BOLT (6X60)

09103-06064

$2.12

6

BOLT (6X55)

09103-06102

$2.10

7

GUIDE, VALVE INTAKE (OS:0.3) | OPT

11115-38B70

Unavailable

8

GUIDE, VALVE EXHAUST (OS:0.3) | OPT

11115-45740

$40.73

9

GASKET, CYLINDER HEAD REAR

11142-10F00

$61.55

10

PIN

04211-13189

$2.19

11

BOLT, OIL GALLERY

07120-0612B

$3.04

12

GASKET

09168-06018

$1.77

13

STUD BOLT (L:30)

09108-08142

$3.18

14

STUD BOLT (M12/8)

09108-08205

$14.43

15

NUT

08316-1008B

$2.66

16

WASHER

09160-10039

$2.26

17

WASHER

09168-10017

$3.04

18

BOLT (8X57)

09103-08181

Unavailable

19

BOLT (10X180)

09103-10178

$14.74

20

BOLT (10X190)

09103-10179

$15.32

21

BOLT (L:200)

09103-10180

$15.32

22

BOLT (10X215)

09103-10181

Unavailable

23

BOLT (6X50)

09103-06101

$2.16

24

BOLT (6X45)

09103-06112

Unavailable

25

BOLT (8X130)

09103-08086

Unavailable

26

BOLT (8X268)

09103-08213

$27.75

27

BOLT

01550-0630B

$2.85

28

BOLT

01550-0635B

$2.73

29

WASHER

09160-08130

$2.03

30

GASKET

09168-06023

$2.35

31

SPARK PLUG (NGK,DPR7EA-9)

09482-00354

$3.32

31

SPARK PLUG (NGK,DPR7EA-9) | !09482-00354 This part replaces 09482-00355.

09482-00354

$3.32

31

SPARK PLUG (NGK,DPR8EA-9) | OPT

09482-00334

$3.03

31

SPARK PLUG (DENSO,X24EPR-U9) | OPT

09482-00335

$5.36

31

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$3.11

31

SPARK PLUG (DENSO,X27EPR-U9) | OPT

09482-00331

$5.28

32

CAP, HEAD COVER LH

11173-10F00

$195.92

33

CAP, HEAD COVER RH

11174-10F00

Unavailable

34

CUSHION, HEAD COVER CAP

11273-24B00

$4.52

35

WASHER, HEAD COVER CAP UPPER

09160-06084

$1.78

36

WASHER, HEAD COVER CAP LOWER

09160-09016

$2.30

37

CUSHION, HEAD COVER CAP NO.2

09320-09016

$1.97

38

BOLT, HEAD COVER CAP NO.1

01547-06707

$2.75

39

BOLT, HEAD COVER CAP NO.2

01547-06507

$2.41

40

SPACER, HEAD COVER CAP NO.1

11179-10F00

$16.15

41

SPACER, HEAD COVER CAP NO.2

11179-10F10

$12.17

42

CUSHION

09320-13015

$2.85

43

PLUG, CYLINDER HEAD

09241-30008

$7.05

44

BUSH

09301-08007

$6.80

45

PLUG, HEAD COVER

09248-22004

$16.43

46

PIPE ASSY,INTAK | Includes Item(s) 47 This part replaces 13102-10F10.

13102-10F11

$84.20

47

O RING (D:1.9,ID:40.7)

09280-41007

$9.04

48

SCREW

09119-06092

$2.38

49

CLAMP, INTAKE PIPE

09402-62208

$6.58
