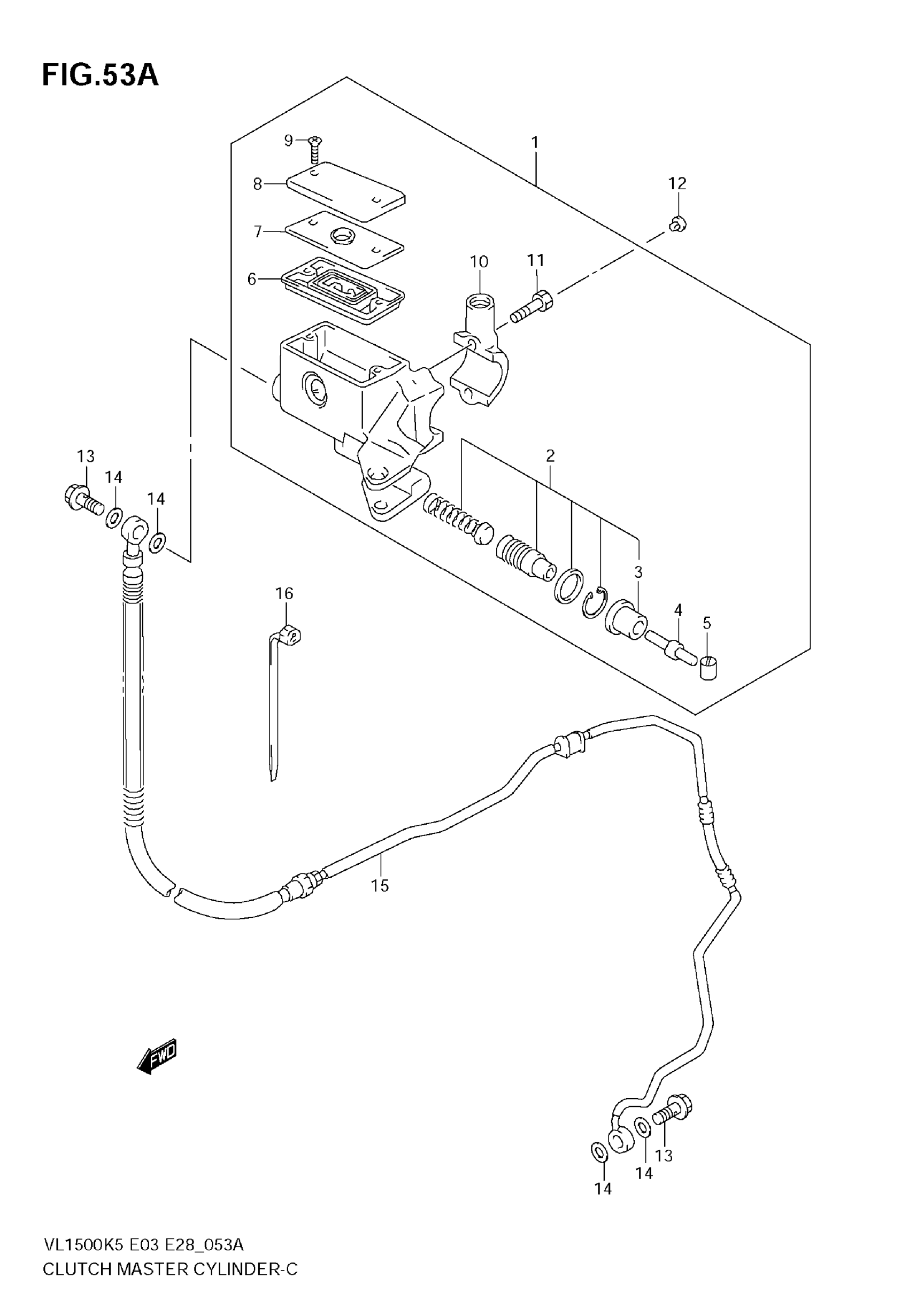

Suzuki VL1500 (2009) CLUTCH MASTER CYLINDER (MODEL K7/K8/K9) Diagram

#

Description
Price

1

CYLINDER ASSY, CLUTCH MASTER | Includes Item(s) 2 - 11

59800-10F20

$360.67

2

PISTON & CUP SET

59800-08810

$36.14

3

BOOT

59666-44300

$5.30

4

PUSH ROD

59871-10F00

$10.62

5

BUSH

59892-08A00

$4.63

6

DIAPHRAGM

59667-49460

$8.95

7

PLATE

59668-41C00

$8.54

8

CAP

59669-10F00

$80.65

9

SCREW

02122-04127

$1.97

10

HOLDER

59671-38A00

$33.97

11

BOLT

07130-06207

$2.80

12

CAP

09250-05008

$3.44

13

UNION | MODEL K5/K6/K7 This part replaces 09360-10042.

09360-10062

$5.81

13

BOLT, LOWER | MODEL K8/K9

09360-10062

$5.81

14

WASHER (10X15X1.5)

09161-10009

$1.83

15

HOSE ASSY, CLUTCH | MODEL K5/K6/K7 This part replaces 59900-10F30.

59900-10F40

Unavailable

15

HOSE ASSY, CLUTCH | MODEL K8/K9

59900-10F40

Unavailable

16

CLAMP (L:235)

09407-25401

$4.21
