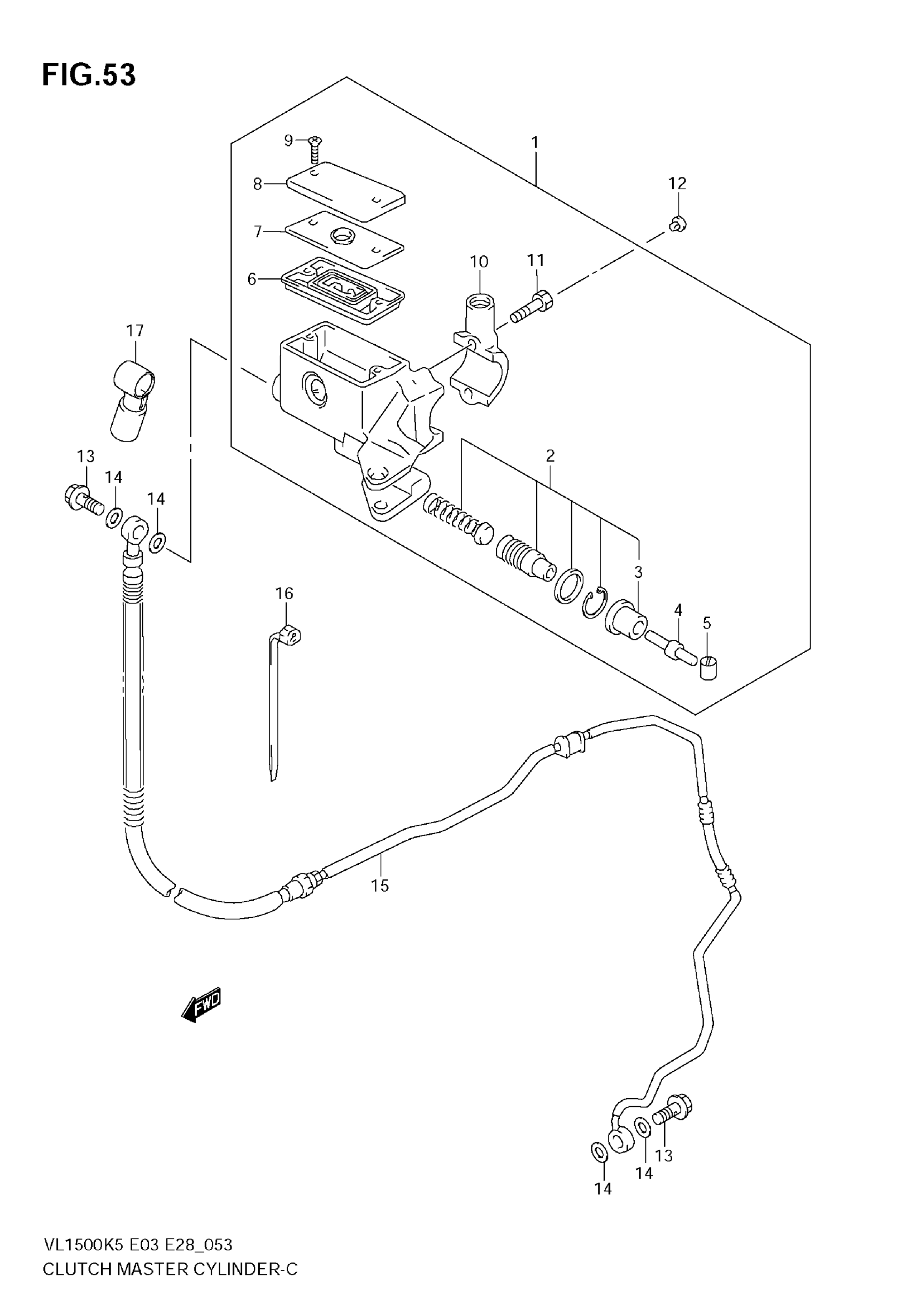

Suzuki VL1500 (2009) CLUTCH MASTER CYLINDER (MODEL K5/K6) Diagram

Description

Price

CYLINDER ASSY, CLUTCH MASTER | Includes Item(s) 2 - 11

59800-10F10

Unavailable

PISTON & CUP SET

59800-08810

$36.14

BOOT

59666-44300

$5.30

PUSH ROD

59871-10F00

$10.62

BUSH

59892-08A00

$4.63

DIAPHRAGM

59667-49460

$8.95

PLATE

59668-41C00

$8.54

CAP

59669-10F00

$80.65

SCREW

02122-04127

$1.97

HOLDER

59671-38A00

$33.97

BOLT

07130-06207

$2.80

CAP

09250-05008

$3.44

BOLT, LOWER (10X1.25X22)

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE ASSY, CLUTCH

59900-10F21

Unavailable

CLAMP (L:235)

09407-25401

$4.21

BOOT, CLUTCH MASTER CYLINDER

59711-10F10

Unavailable
