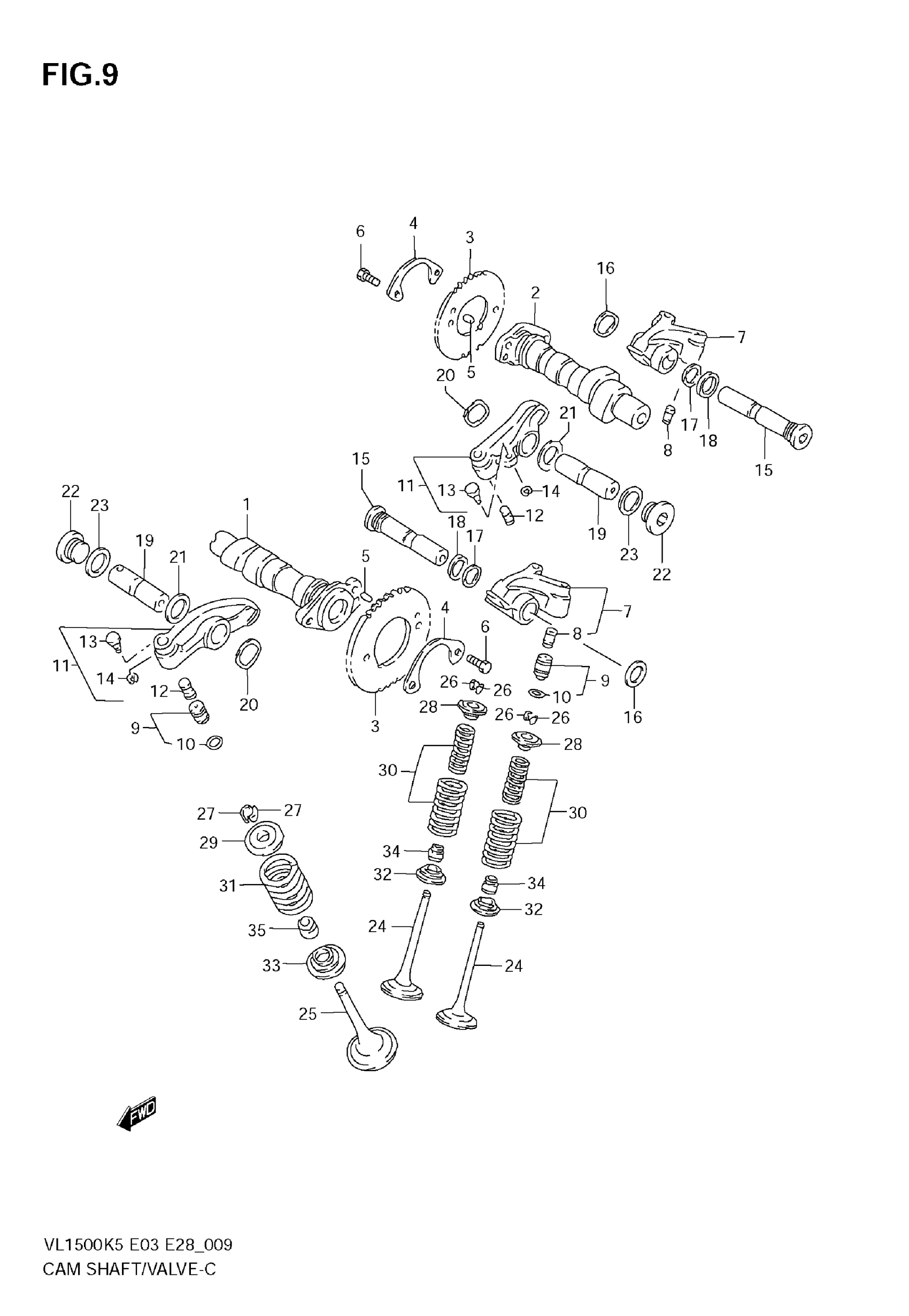

Suzuki VL1500 (2009) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, FRONT

12711-10F10

Unavailable

2

CAMSHAFT, REAR

12713-10F10

Unavailable

3

SPROCKET, CAMSHAFT

12741-38B01

Unavailable

4

WASHER

12747-44001

$2.50

5

PIN (5X8)

09261-05005

$1.49

6

BOLT (6X12.5)

09111-06027

$1.72

7

ARM, VALVE ROCKER IN | Includes Item(s) 8

12840-38B01

Unavailable

8

CHAMBER, ADJUSTER

12863-38B00

$7.95

9

ADJUSTER, VALVE LASH | Includes Item(s) 10

12860-38B01

$86.13

10

O RING

12864-38B01

$8.18

11

ARM, VALVE ROCKER FRONT EX | Includes Item(s) 12 - 14

12850-38B02

Unavailable

12

CHAMBER, ADJUSTER

12863-38B00

$7.95

13

PIN, DECOMP

12844-38B00

Unavailable

14

E RING

08332-1103A

$2.15

15

SHAFT, VALVE ROCKER ARM IN

12861-38B00

Unavailable

16

WASHER, WAVE

09164-14012

Unavailable

17

WASHER

09181-14139

$2.60

18

GASKET

09168-16003

$1.91

19

SHAFT, VALVE ROCKER ARM EX

12871-38B00

Unavailable

20

WASHER, WAVE

09164-16003

$2.45

21

WASHER

09160-16033

$2.90

22

PLUG, ROCKER ARM SHAFT

09248-18004

$15.42

23

GASKET

09168-18003

$1.49

24

VALVE, INTAKE

12911-38B00

$59.87

25

VALVE, EXHAUST

12912-38B00

$71.38

26

COTTER, VALVE

12932-24400

$1.94

27

COTTER, VALVE EX

12932-82000

$3.05

28

RETAINER, SPRING IN

12931-33201

$8.28

29

RETAINER, SPRING EX

12931-45001

$8.12

30

SPRING SET, VALVE IN

12920-06B00

$13.81

31

SPRING, VALVE EX

12922-44110

Unavailable

32

SEAT, SPRING IN

12933-33201

$6.05

33

SEAT, SPRING EX

12933-45001

$6.27

34

OIL SEAL, IN (5.5X11X8.2)

09289-05015

$6.70

35

OIL SEAL, EX (7X14.4X9)

09289-07002

$7.98
