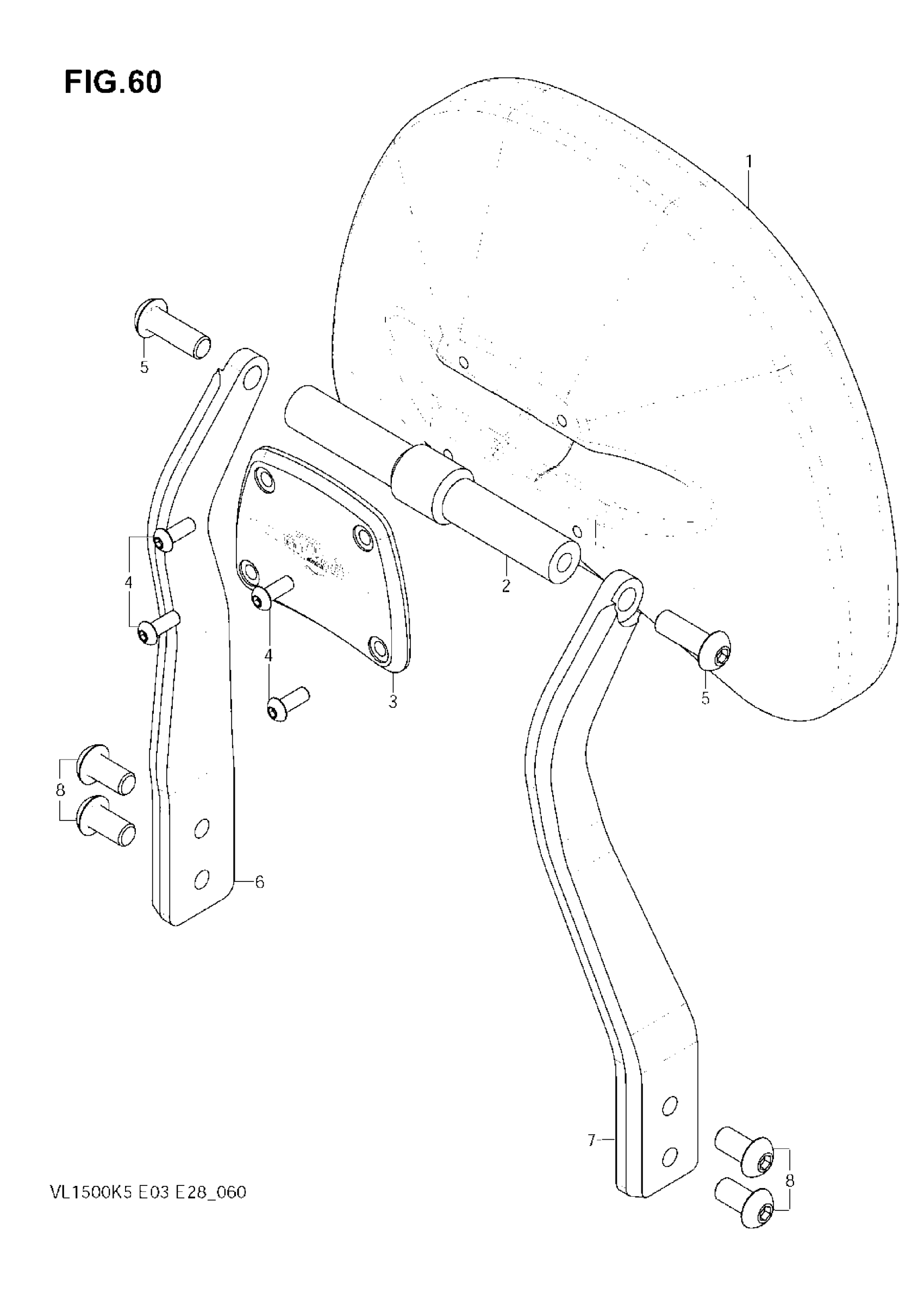

Suzuki VL1500 (2009) BACKREST, MOUNTS, SADDLEBAGS C90T Diagram

#

Description
Price

BACKREST ASSY | Includes Item(s) 1 - 8 This part replaces 990A0-75039-TRG.

990A0-75059-TRG

Unavailable

1

PAD ASSY

990A0-75039-001

Unavailable

1A

PAD COVER | NOT ILLUSTRATED

990A0-75039-008

Unavailable

2

CROSSBAR

990A0-75039-002

Unavailable

3

BACK PLATE

990A0-75039-003

Unavailable

4

SCREW, M6x1.0x20

990A0-75039-004

$4.95

5

SCREW, M10x1.5x25

990A0-75039-005

$7.95

6

UPRIGHT, LH

990A0-75039-006

Unavailable

7

UPRIGHT, RH

990A0-75039-007

Unavailable

8

SCREW, M10x1.5x20

990A0-75012-001

Unavailable

9

BACKREST MOUNT PLATE, LH | NOT ILLUSTRATED

990A0-75003-001

Unavailable

10

BACKREST MOUNT PLATE, RH | NOT ILLUSTRATED

990A0-75003-002

Unavailable

11

SADDLEBAG SUPPORT, LH | NOT ILLUSTRATED

990A0-75015-001

Unavailable

12

SUPERCEEDED BY 990A0-75015-TRG | NOT ILLUSTRATED This part replaces 990A0-75015-002.

990A0-75015

Unavailable

13

NO DESCRIPTION AVAILABLE | K6 NOT ILLUSTRATED This part replaces 990A0-77020-001.

990A0-77040-001

Unavailable

14

NO DESCRIPTION AVAILABLE | K6 NOT ILLUSTRATED This part replaces 990A0-77020-002.

990A0-77040-002

Unavailable

15

NO DESCRIPTION AVAILABLE | K7,K8 NOT ILLUSTRATED This part replaces 990A0-77030-001.

990A0-77040-001

Unavailable

16

NO DESCRIPTION AVAILABLE | K7,K8 NOT ILLUSTRATED This part replaces 990A0-77030-002.

990A0-77040-002

Unavailable

17

BOLT, M8x1.25x70 | NOT ILLUSTRATED

990A0-77020-003

Unavailable

18

TOPHAT WASHER, SADDLEBAG | NOT ILLUSTRATED

990A0-77020-004

$7.95
