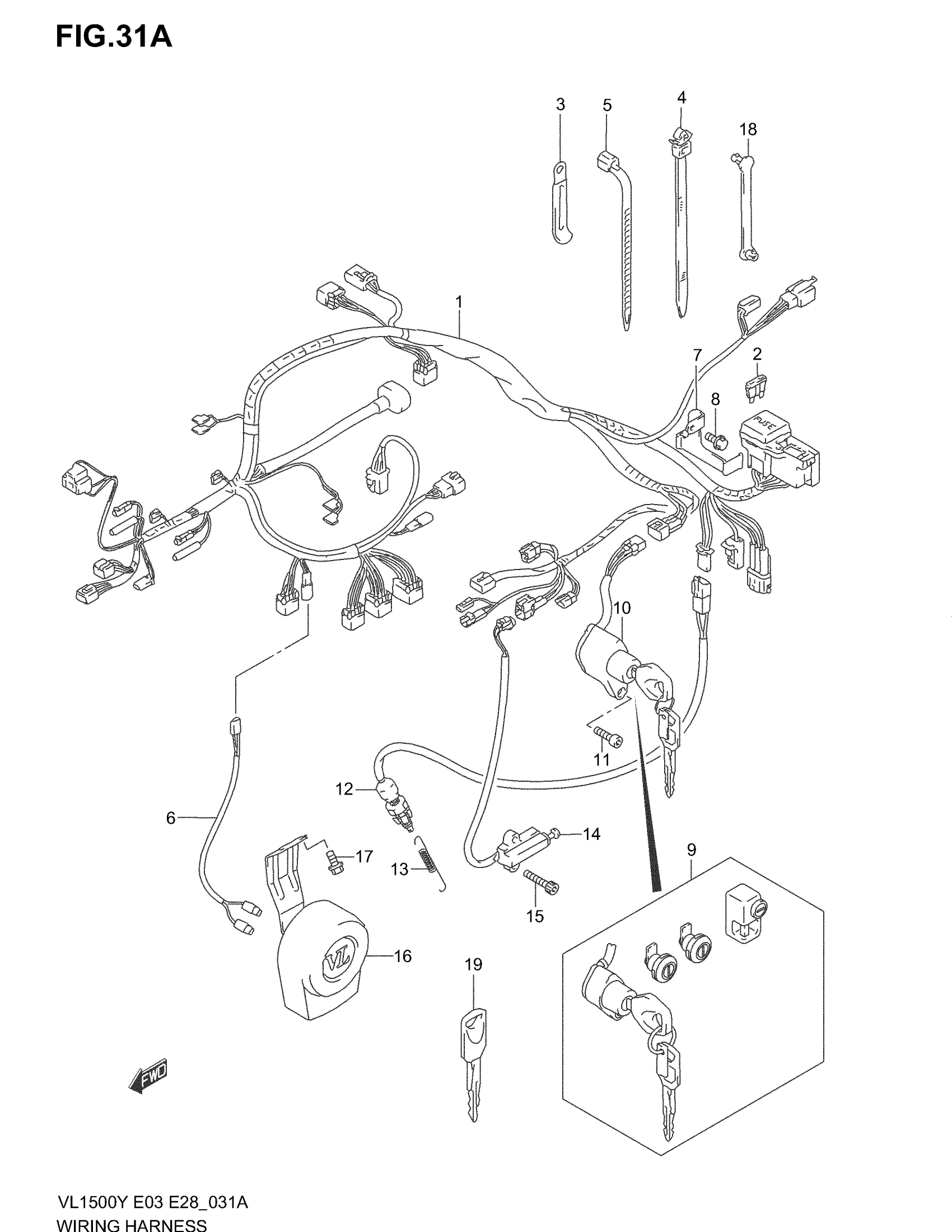

Suzuki VL1500 (2004) WIRING HARNESS (MODEL Y/K1/K2) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL Y This part replaces 36610-10F60.

36610-10F90

Unavailable

1

HARNESS, WIRING | MODEL K1 This part replaces 36610-10F61.

36610-10F90

Unavailable

1

HARNESS, WIRING | MODEL K2; Includes Item(s) 2 - 2

36610-10F90

Unavailable

2

FUSE (10A)

09481-10501

$2.07

2

FUSE (15A)

09481-15501

$2.07

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

3

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.76

4

CLAMP (L:90)

09407-11402

$1.81

5

CLAMP (L:125)

09407-14403

$2.24

5

CLAMP (L:235)

09407-25401

$4.21

5

CLAMP (L:165)

09407-18402

$2.21

6

WIRE, HORN LEAD

36852-21E10

Unavailable

7

BRACKET, FUSE

36744-10F00

Unavailable

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

9

LOCK SET | MODEL Y This part replaces 37000-26830.

37000-26833

Unavailable

9

LOCK SET | MODEL K1 This part replaces 37000-26832.

37000-26833

Unavailable

9

LOCK SET | MODEL K2 This part replaces 37100-26880.

37000-26833

Unavailable

10

SWITCH ASSY, IGNITION | MODEL Y This part replaces 37110-26F00.

37110-26F02

$131.43

10

SWITCH ASSY, IGNITION | MODEL K1

37110-26F02

$131.43

10

SWITCH ASSY, IGNITION | MODEL K2 This part replaces 37110-26F20.

37110-26F02

$131.43

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

12

SWITCH ASSY, STOP LAMP

37740-10F00

$40.32

13

SPRING, STOP LAMP

43139-10F00

$8.37

14

SWITCH ASSY,SID This part replaces 37840-10F00.

37840-10F01

$93.25

15

SCREW This part replaces 02142-06203.

02142-0620A

$1.38

16

HORN ASSY

38500-10F00

Unavailable

17

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

18

CLAMP (L:33)

09407-03401

$2.81

19

KEY, BLANK | OPT This part replaces 37146-48E00.

37146-48E10

$27.73
