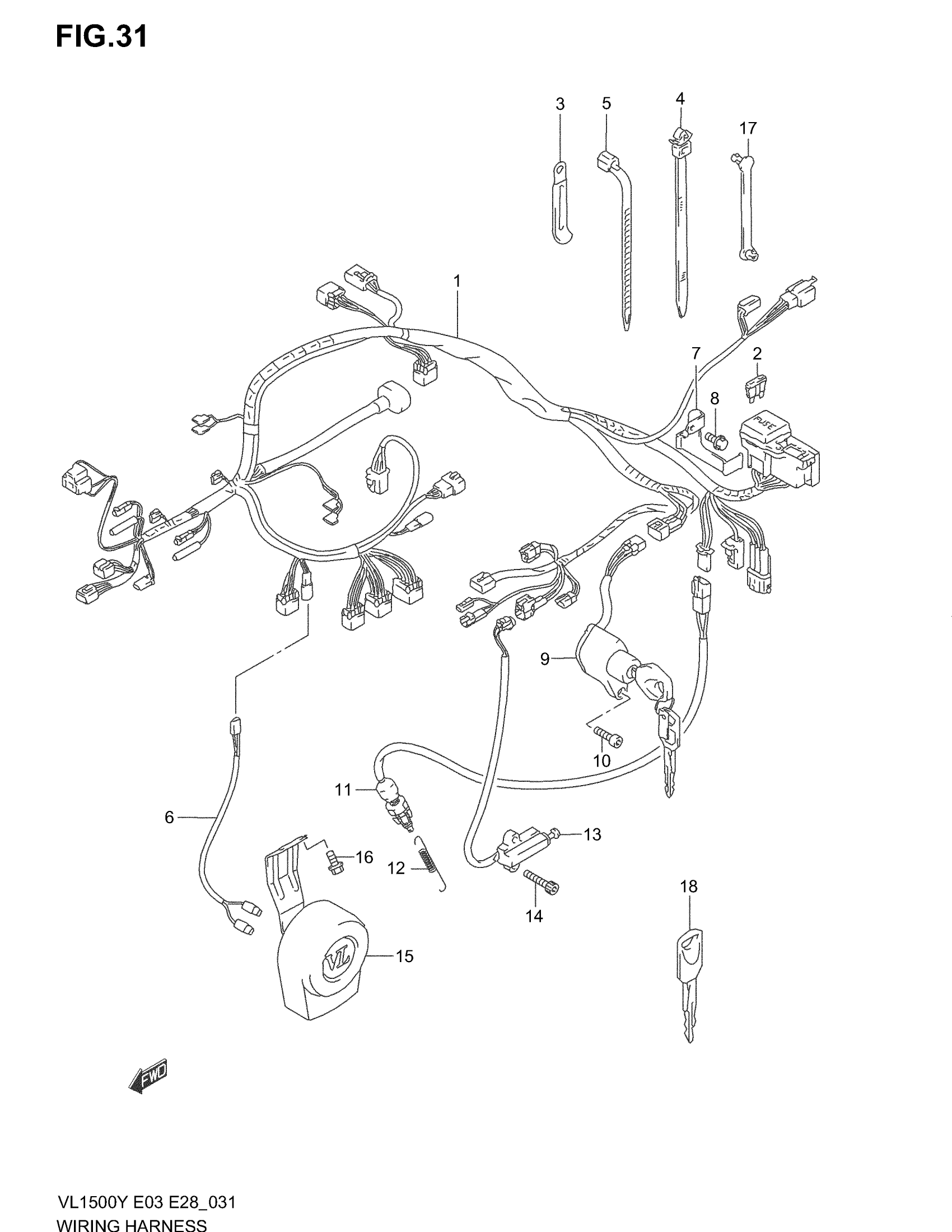

Suzuki VL1500 (2004) WIRING HARNESS (MODEL W/X) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL W

36610-10F10

Unavailable

1

HARNESS, WIRING | MODEL X; Includes Item(s) 2 - 2 This part replaces 36610-10F60.

36610-10F90

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

CLAMP (L:60)

09404-06429

$1.83

3

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

4

CLAMP (L:90)

09407-11402

$1.80

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:235)

09407-25401

$4.66

5

CLAMP (L:165)

09407-18402

$2.19

6

WIRE, HORN LEAD

36852-21E10

Unavailable

7

BRACKET, FUSE

36744-10F00

Unavailable

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

9

SWITCH ASSY, IGNITION

37110-10F00

$90.61

10

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

11

SWITCH ASSY, STOP LAMP

37740-10F00

$35.72

12

SPRING, STOP LAMP

43139-10F00

$7.42

13

SWITCH ASSY,SID This part replaces 37840-10F00.

37840-10F01

$83.03

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

15

HORN ASSY

38500-10F00

Unavailable

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

CLAMP (L:33)

09407-03401

$3.07

18

KEY, BLANK | OPT This part replaces 37146-48E00.

37146-48E10

$25.27
