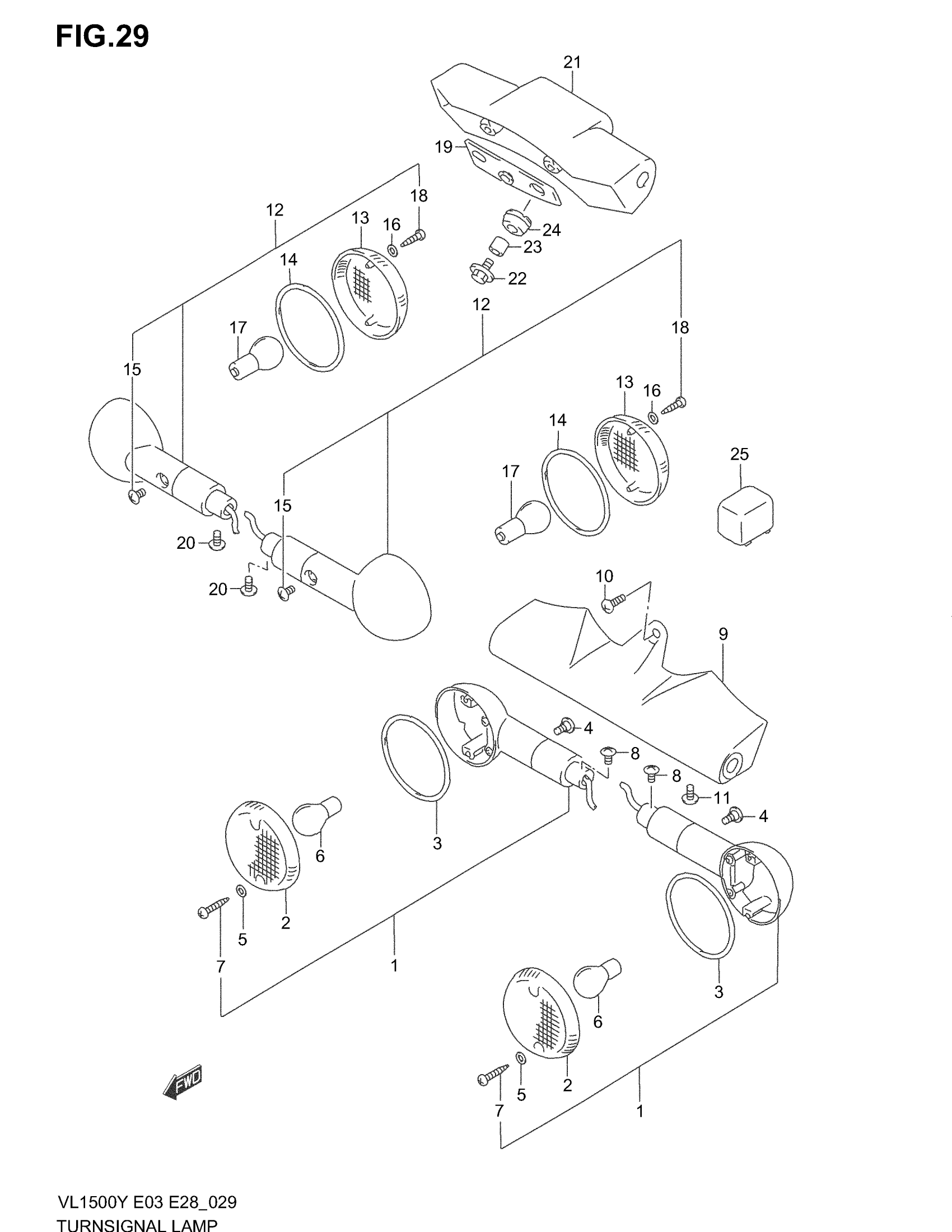

Suzuki VL1500 (2004) TURNSIGNAL LAMP (MODEL W/X/Y/K1) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-10F30

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 7

35602-10F30

$150.65

2

LENS

35612-38A30

$20.22

3

GASKET

35613-38A00

$10.99

4

SCREW

35623-38A01

$4.75

5

GASKET

35627-43010

$2.29

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

7

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

8

SCREW

02142-06107

Unavailable

9

STAY, FRONT TURNSIGNAL

35671-10F00

Unavailable

10

BOLT, FRONT TURN STAY (6X16) | MODEL W/X

09139-06030

$3.33

10

BOLT, FRONT TURN STAY (6X12) | MODEL Y/K1

09139-06027

$2.00

11

BOLT, FRONT TURN STAY (8X16)

09139-08007

$3.38

12

LAMP ASSY, REAR TURNSIGNAL RH

35603-10F10

Unavailable

12

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 13 - 18

35604-10F10

Unavailable

13

LENS

35652-38A21

$15.43

14

GASKET

35613-38A00

$10.99

15

SCREW

35623-38A01

$4.75

16

GASKET

35627-43010

$2.29

17

BULB (12V,21W)

09471-12045

$2.95

18

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

19

CUSHION, REAR TURN STAY

35674-10F00

$15.28

20

SCREW

02142-06107

Unavailable

21

STAY, REAR TURN SIGNAL

35621-10F00

$391.20

22

BOLT (6X20)

09116-06115

$1.97

23

SPACER (6.5X10X10)

09180-06310

$1.92

24

CUSHION

09320-09010

$2.80

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
