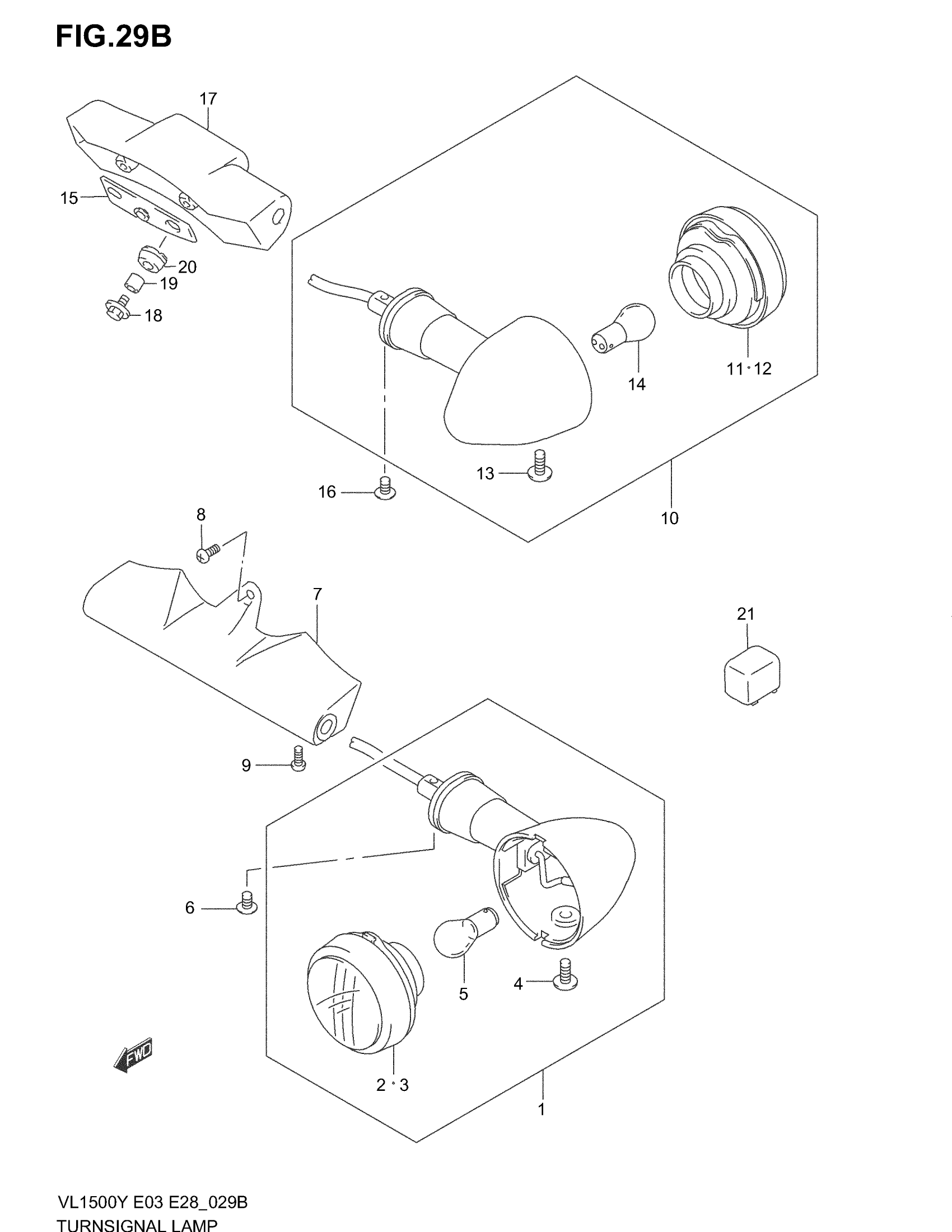

Suzuki VL1500 (2004) TURNSIGNAL LAMP (MODEL K4) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-38AB0

$140.17

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 5

35602-38AB0

$135.57

2

LENS | FOR RH

35610-38AA0

$31.91

3

LENS | FOR LH

35630-38AA0

$31.91

4

SCREW

35623-38AA0

$5.11

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

6

SCREW

02142-06107

Unavailable

7

STAY, FRONT TURNSIGNAL

35671-10F00

Unavailable

8

BOLT, FRONT TURN STAY (6X12)

09139-06027

$2.16

9

BOLT, FRONT TURN STAY (8X16)

09139-08007

$3.70

10

LAMP ASSY,TURNS This part replaces 35603-38AB0.

35603-38AB4

$88.47

10

LAMP ASSY,TURNS | Includes Item(s) 11 - 14 This part replaces 35604-38AB0.

35604-38AB4

$88.89

11

.LENS | FOR RH This part replaces 35630-38AE0.

35630-38AE1

$31.91

12

.LENS | FOR LH This part replaces 35610-38AE0.

35610-38AE1

$31.91

13

SCREW

35623-38AA0

$5.11

14

BULB (12V,21W)

09471-12045

$3.27

15

CUSHION, REAR TURN STAY

35674-10F00

$13.55

16

SCREW

02142-06107

Unavailable

17

STAY, REAR TURN SIGNAL

35621-10F00

$351.55

18

BOLT (6X20)

09116-06115

$1.97

19

SPACER (6.5X10X10)

09180-06310

$1.91

20

CUSHION

09320-09010

$2.84

21

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
