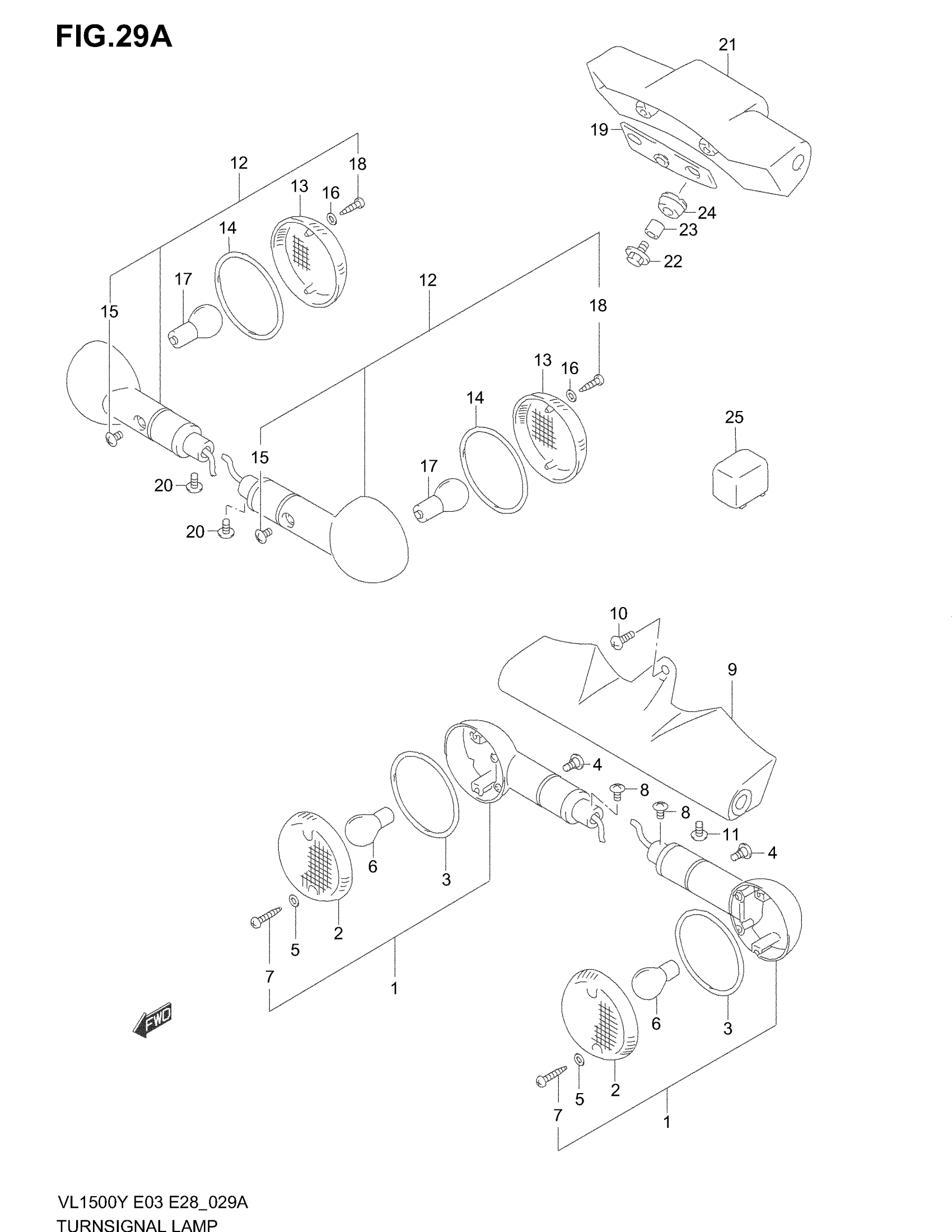

Suzuki VL1500 (2004) TURNSIGNAL LAMP (MODEL K2/K3) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-10F60

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 7

35602-10F60

Unavailable

2

LENS

35612-38A30

$17.90

3

GASKET

35613-38A00

$9.74

4

SCREW

35623-38A01

$5.05

5

GASKET

35627-43010

$2.28

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

8

SCREW

02142-06107

Unavailable

9

STAY, FRONT TURNSIGNAL

35671-10F00

Unavailable

10

BOLT, FRONT TURN STAY (6X12)

09139-06027

$2.16

11

BOLT, FRONT TURN STAY (8X16)

09139-08007

$3.70

12

LAMP ASSY, REAR TURNSIGNAL RH

35603-10F50

Unavailable

12

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 13 - 18

35604-10F50

Unavailable

13

LENS

35652-38A21

$13.67

14

GASKET

35613-38A00

$9.74

15

SCREW

35623-38A01

$5.05

16

GASKET

35627-43010

$2.28

17

BULB (12V,21W)

09471-12045

$3.27

18

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

19

CUSHION, REAR TURN STAY

35674-10F00

$13.55

20

SCREW

02142-06107

Unavailable

21

STAY, REAR TURN SIGNAL

35621-10F00

$351.55

22

BOLT (6X20)

09116-06115

$1.97

23

SPACER (6.5X10X10)

09180-06310

$1.91

24

CUSHION

09320-09010

$2.84

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
