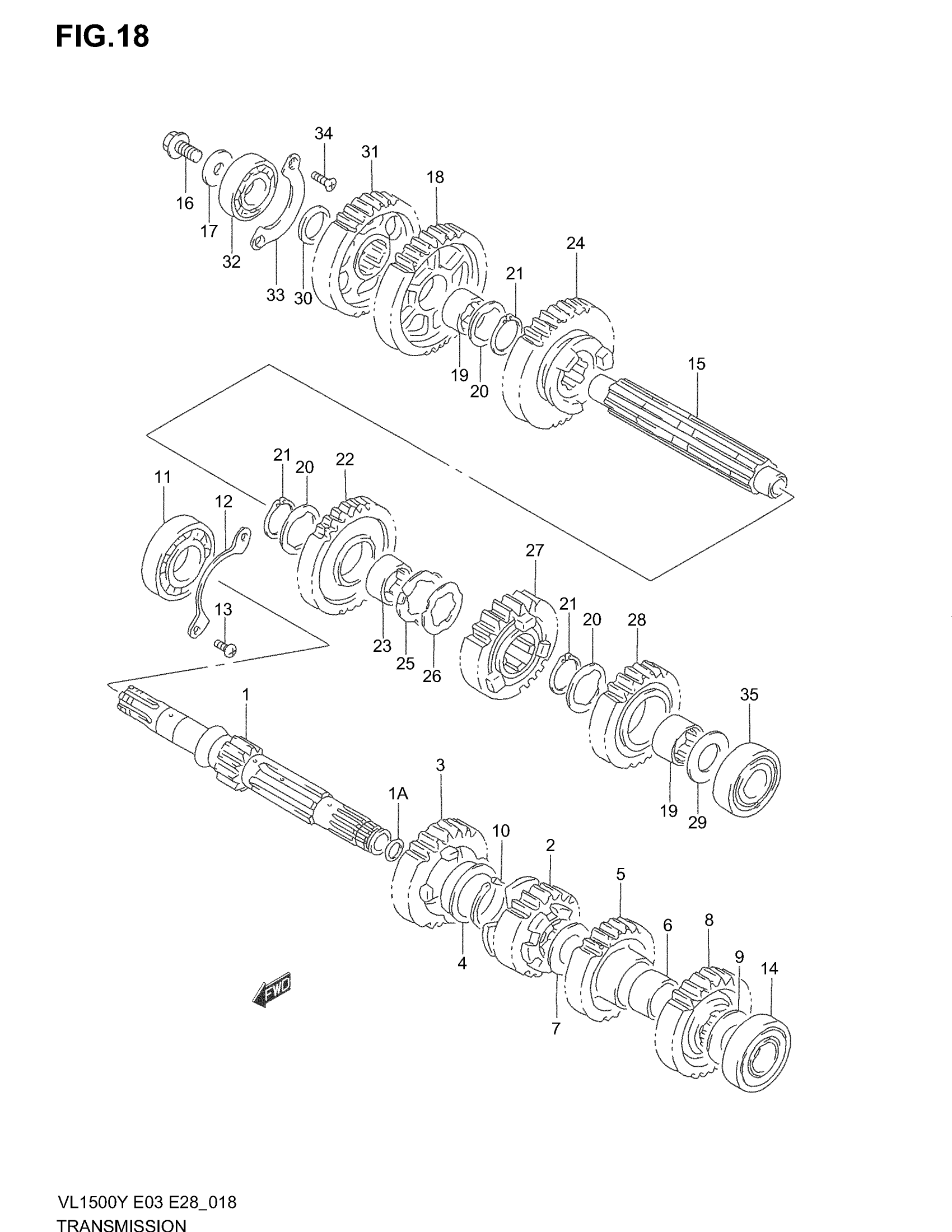

Suzuki VL1500 (2004) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24120-38B20

Unavailable

1A

O RING (D:1.9,ID:16.6)

09280-17004

$3.67

2

BEAR, 2ND DRIVE (NT:17) | MODEL W This part replaces 24221-38B11.

24221-38B12

Unavailable

2

BEAR, 2ND DRIVE (NT:17) | MODEL X/Y/K1/K2/K3/K4

24221-38B12

Unavailable

3

GEAR, 3RD DRIVE (NT:21)

24231-38B11

Unavailable

4

BUSH, 3RD DRIVE GEAR

09301-28001

$19.93

5

GEAR, 4TH DRIVE (NT:24)

24241-38B21

Unavailable

6

BUSH, 4TH DRIVE GEAR

24242-38B10

Unavailable

7

WASHER (22X32X1.0)

09181-22195

Unavailable

8

GEAR, 5TH DRIVE (NT:26)

24251-38B20

Unavailable

9

WASHER (20X32X1.0)

09181-20223

$2.92

10

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

11

BEARING, RH (25X62X17)

09262-25080

$38.77

12

RETAINER

24741-38A00

Unavailable

13

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

14

BEARING, LH (20X52X15)

09262-20080

$38.77

15

DRIVE SHAFT

24131-38B20

Unavailable

16

BOLT (10X24)

09103-10112

$3.40

17

WASHER

08211-10305

$4.25

18

GEAR, 1ST DRIVEN (NT:36)

24311-38B20

Unavailable

19

BUSH, 1ST & 5TH

24332-24A00

Unavailable

20

WASHER

09167-28001

$4.60

21

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

22

GEAR, 2ND DRIVEN (NT:31)

24321-38B20

Unavailable

23

BUSH, 2ND DRIVEN GEAR

24332-49000

$17.68

24

GEAR, 3RD DRIVEN (NT:28) | MODEL W This part replaces 24331-38B11.

24331-38B12

Unavailable

24

GEAR, 3RD DRIVEN (NT:28) | MODEL X/Y/K1/K2/K3/K4

24331-38B12

Unavailable

25

LOCK WASHER, RH

09169-28001

$3.85

26

LOCK WASHER, RH

09167-28002

$4.77

27

GEAR, 4TH DRIVEN (NT:25) | MODEL W This part replaces 24341-38B11.

24341-38B12

Unavailable

27

GEAR, 4TH DRIVEN (NT:25) | MODEL X/Y/K1/K2/K3/K4

24341-38B12

Unavailable

28

GEAR, 5TH DRIVEN (NT:23)

24351-38B20

Unavailable

29

WASHER

08211-20382

Unavailable

30

WASHER (22X32X3)

09160-22032

$5.33

31

GEAR, OVERDRIVING (NT:34)

24621-38B00

Unavailable

32

BEARING, RH (22X56X16)

09262-22029

$64.59

33

RETAINER

24741-38401

Unavailable

34

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

35

BEARING, LH (20X52X15)

09262-20080

$38.77
