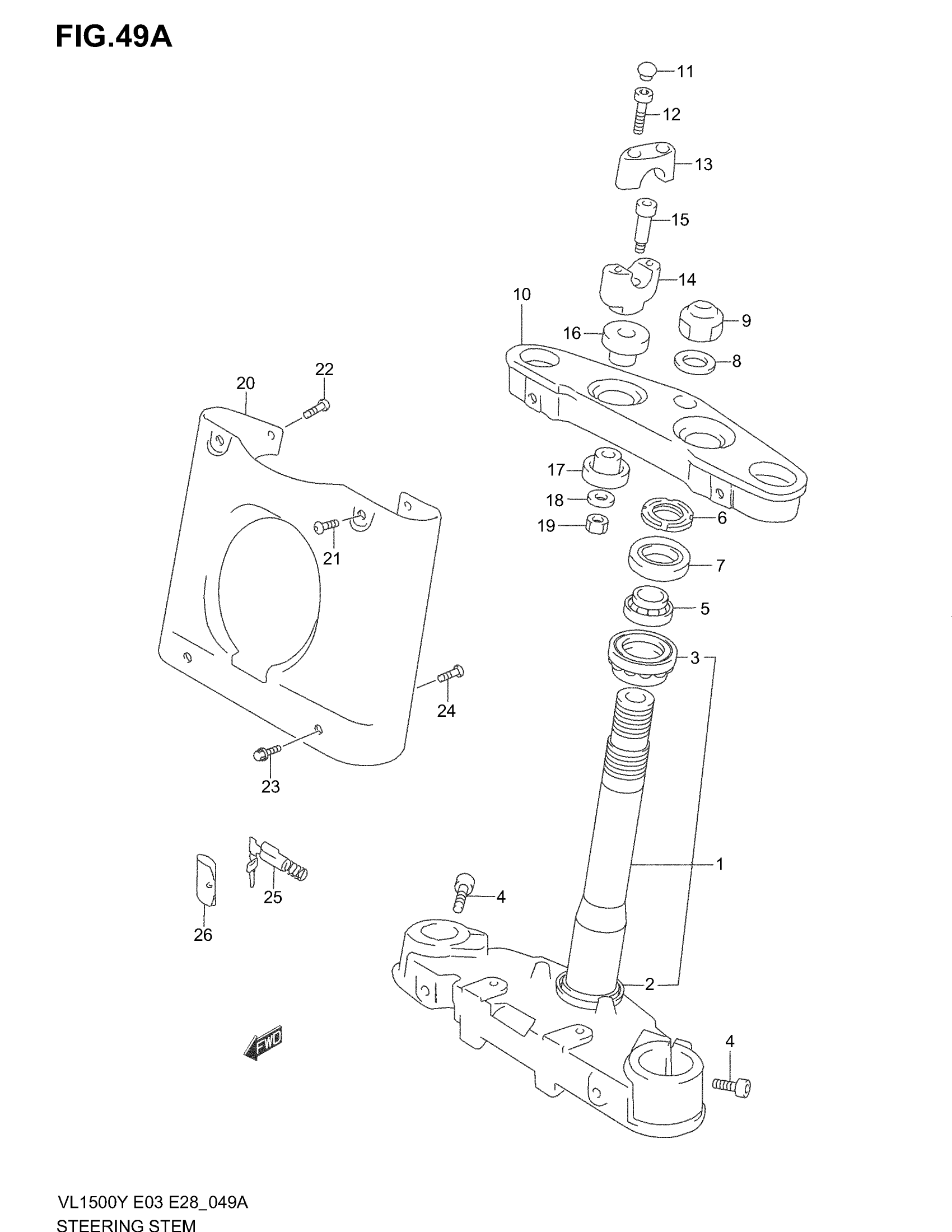

Suzuki VL1500 (2004) STEERING STEM (MODEL Y) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-10F20

Unavailable

2

SEAL, LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09267-30010

$48.11

4

BOLT, STEM

51147-10F00

Unavailable

5

BEARING (25X47X15)

09267-25009

$52.18

6

NUT, STEM

51631-28000

$17.37

7

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

8

WASHER, STEM

51356-24B01

$5.38

9

NUT, STEM

51353-24B00

$30.67

10

HEAD, STEERING STEM

51311-10F00

Unavailable

11

CAP, BOLT

09250-06009

$3.42

12

BOLT, HOLDER

07130-08307

$3.89

13

HOLDER, HANDLE UPPER

56211-38A01

$62.07

14

HOLDER, HANDLE LOWER

56221-10F00

Unavailable

15

BOLT, STAY

51226-10F00

Unavailable

16

CUSHION, UPPER

56240-38A42

$52.73

17

CUSHION, LOWER

56242-39A12

$46.22

18

WASHER

51354-38A40

$8.07

19

NUT

09159-10027

$3.10

20

COVER, FRONT FORK

51515-10F00

Unavailable

21

SCREW, UPPER FRONT (8X16)

09139-08007

$3.70

22

SCREW, UPPER REAR (6X12)

09139-06027

$2.16

23

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

24

SCREW, LOWER REAR (6X12)

09139-06027

$2.16

25

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

26

CASE, KEY

51920-48E00

$16.13
