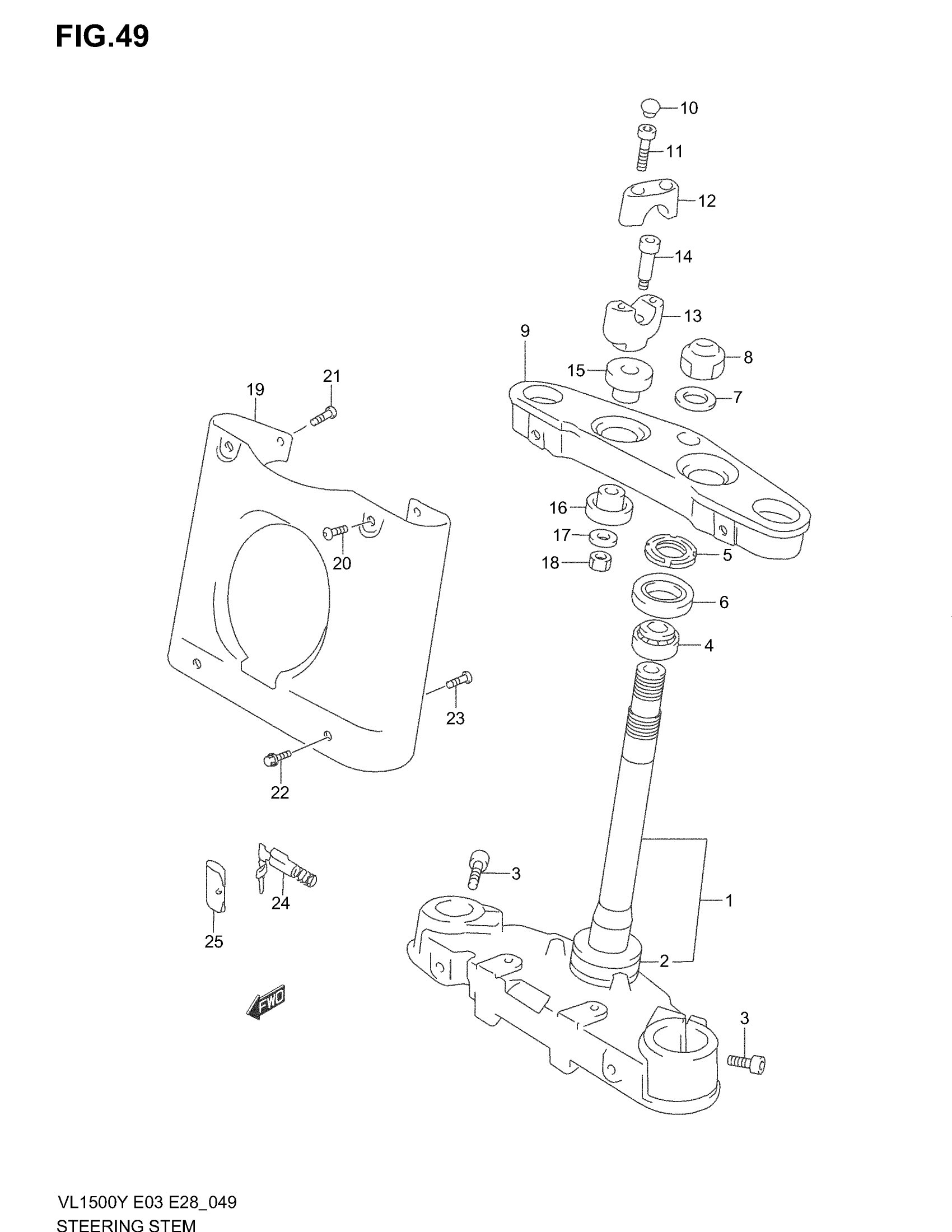

Suzuki VL1500 (2004) STEERING STEM (MODEL W/X) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-10F00

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT, STEM

51147-10F00

Unavailable

4

BEARING (25X47X15)

09265-25019

$56.53

5

NUT, STEM

51631-28000

$17.37

6

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

7

WASHER, STEM

51356-24B01

$5.38

8

NUT, STEM

51353-24B00

$30.67

9

HEAD, STEERING STEM

51311-10F00

Unavailable

10

CAP, BOLT

09250-06009

$3.42

11

BOLT, HOLDER

07130-08307

$3.89

12

HOLDER, HANDLE UPPER

56211-38A01

$62.07

13

HOLDER, HANDLE LOWER

56221-10F00

Unavailable

14

BOLT, STAY

51226-10F00

Unavailable

15

CUSHION, UPPER

56240-38A42

$52.73

16

CUSHION, LOWER

56242-39A12

$46.22

17

WASHER

51354-38A40

$8.07

18

NUT

09159-10027

$3.10

19

COVER, FRONT FORK

51515-10F00

Unavailable

20

SCREW, UPPER FRONT (8X16)

09139-08007

$3.70

21

SCREW, UPPER REAR (6X12)

09139-06027

$2.16

22

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

23

SCREW, LOWER REAR (6X12)

09139-06027

$2.16

24

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

25

CASE, KEY

51920-48E00

$16.13
