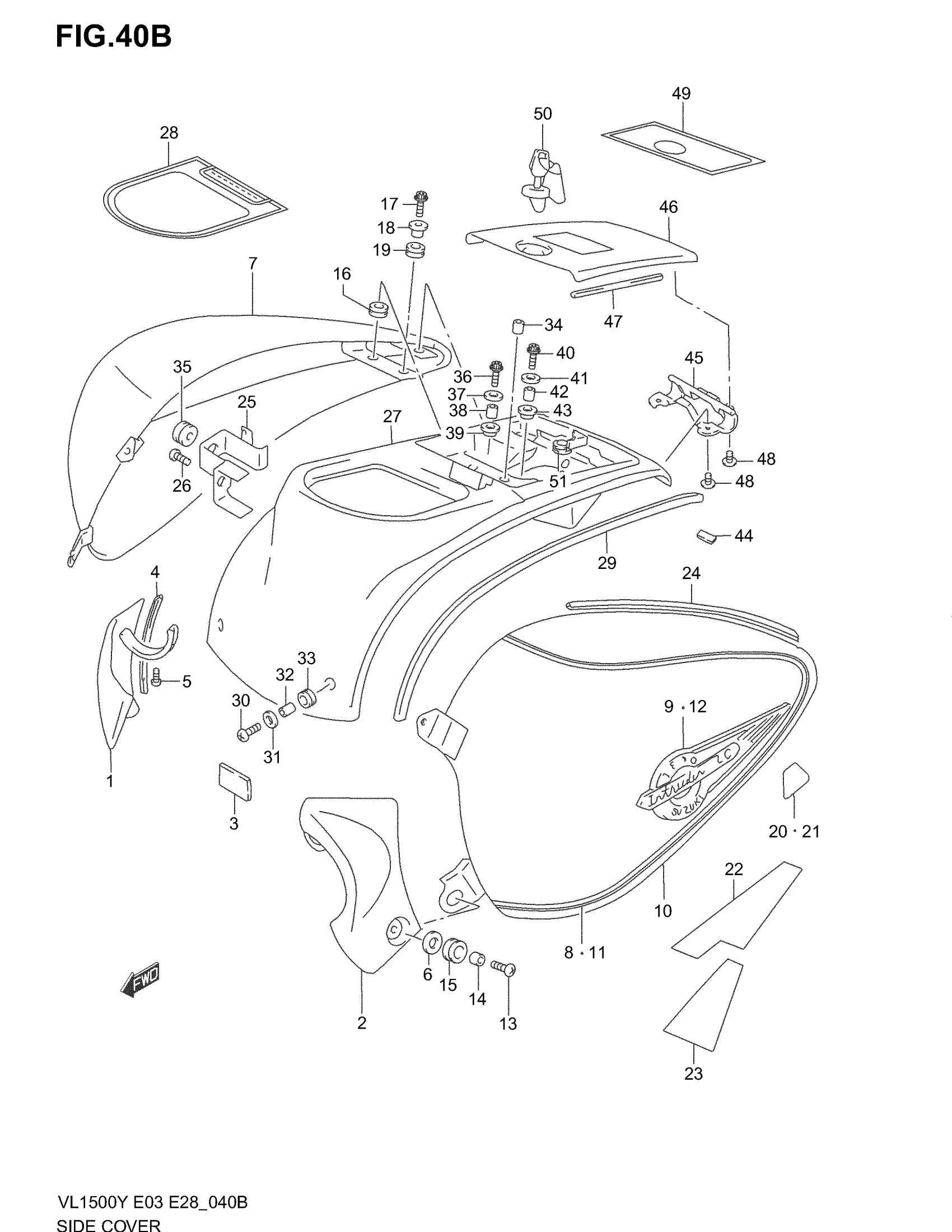

Suzuki VL1500 (2004) SIDE COVER (MODEL K1) Diagram

#

Description
Price

1

COVER, FRAME HEAD RH This part replaces 47510-10F00.

47510-10F01

$199.62

2

COVER, FRAME HEAD LH This part replaces 47520-10F01.

47520-10F02

$195.92

3

CUSHION This part replaces 47829-10F00.

44612-13600

$4.65

4

MOLDING

47514-10F00

$9.23

5

SCREW

09139-06028

$3.70

6

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

7

COVER ASSY,SIDE This part replaces 47800-10F10-33J.

47800-10F20-33J

Unavailable

7

COVER ASSY,SIDE This part replaces 47800-10F10-FG1.

47800-10F20-FG1

Unavailable

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 8 This part replaces 47800-10F10-FG2.

47800-10F20-FG2

Unavailable

8

TAPE,COVER SIDE | FOR 33J This part replaces 68135-10F10-BU8.

68135-10F20-BU8

Unavailable

8

TAPE,COVER SIDE | FOR FG1 This part replaces 68135-10F10-EZ7.

68135-10F20-EZ7

Unavailable

8

NO DESCRIPTION AVAILABLE | FOR FG2 This part replaces 68135-10F10-EZ9.

68135-10F20-EZ9

Unavailable

9

EMBLEM, RH

68111-10F00

$72.42

10

NO DESCRIPTION AVAILABLE This part replaces 47900-10F10-33J.

47900-10F20-33J

Unavailable

10

COVER ASSY,SIDE This part replaces 47900-10F10-FG1.

47900-10F20-FG1

Unavailable

10

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 11 This part replaces 47900-10F10-FG2.

47900-10F20-FG2

Unavailable

11

TAPE,COVER SIDE | FOR 33J This part replaces 68145-10F10-BU8.

68145-10F20-BU8

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR FG1 This part replaces 68145-10F10-EZ7.

68145-10F20-EZ7

Unavailable

11

TAPE,COVER SIDE | FOR FG2 This part replaces 68145-10F10-EZ9.

68145-10F20-EZ9

Unavailable

12

EMBLEM, LH

68121-10F00

$72.42

13

SCREW

09139-06030

$3.70

14

SPACER

09180-06260

$3.37

15

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

16

CUSHION,SIDE UP This part replaces 47822-10F00.

47822-10F01

$8.55

17

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

$3.04

18

WASHER

47827-10F00

$6.19

19

CUSHION,SIDE UP This part replaces 47826-10F00.

47826-10F01

$6.70

20

TAPE, SIDE COVER UPPER RH

47838-10F00

Unavailable

21

TAPE, SIDE COVER UPPER LH

47848-10F00

Unavailable

22

CUSHION, SIDE UPPER RH NO.1

47835-10F00

Unavailable

23

CUSHION, SIDE UPPER RH NO.2

47836-10F00

Unavailable

24

MOLDING, SIDE UPPER LOWER This part replaces 47837-10F00.

47837-10FA0

$15.45

25

BRACKET, SIDE COVER RH

47850-10F00

Unavailable

26

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

27

COVER, METER

47821-10F00

Unavailable

28

TAPE, METER COVER

68897-10F10

Unavailable

29

MOLDING

47824-10F00

$14.03

30

SCREW, FRONT

09139-06030

$3.70

31

WASHER

09160-06036

$2.28

32

SPACER

09180-06256

$2.09

33

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

34

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

35

CUSHION, SIDE

09321-10007

$2.71

36

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

37

WASHER

09160-06084

$1.78

38

SPACER

09180-06265

$3.68

39

CUSHION,METER C This part replaces 47825-10F00.

47825-10F01

$6.60

40

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

$2.45

41

WASHER

09160-06084

$1.78

42

SPACER

09180-06256

$2.09

43

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

44

CUSHION This part replaces 47829-10F00.

44612-13600

$4.65

45

HINGE, FUEL LID This part replaces 47380-10F00.

47380-10F01

Unavailable

46

LID, FUEL INLET

47811-10F00

Unavailable

47

CUSHION, LID

47812-10F00

$4.82

48

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

49

TAPE, FUEL LID

68898-10F10

Unavailable

50

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

51

CUSHION,REAR,L This part replaces 47828-10F00.

47828-10F01

$11.29
