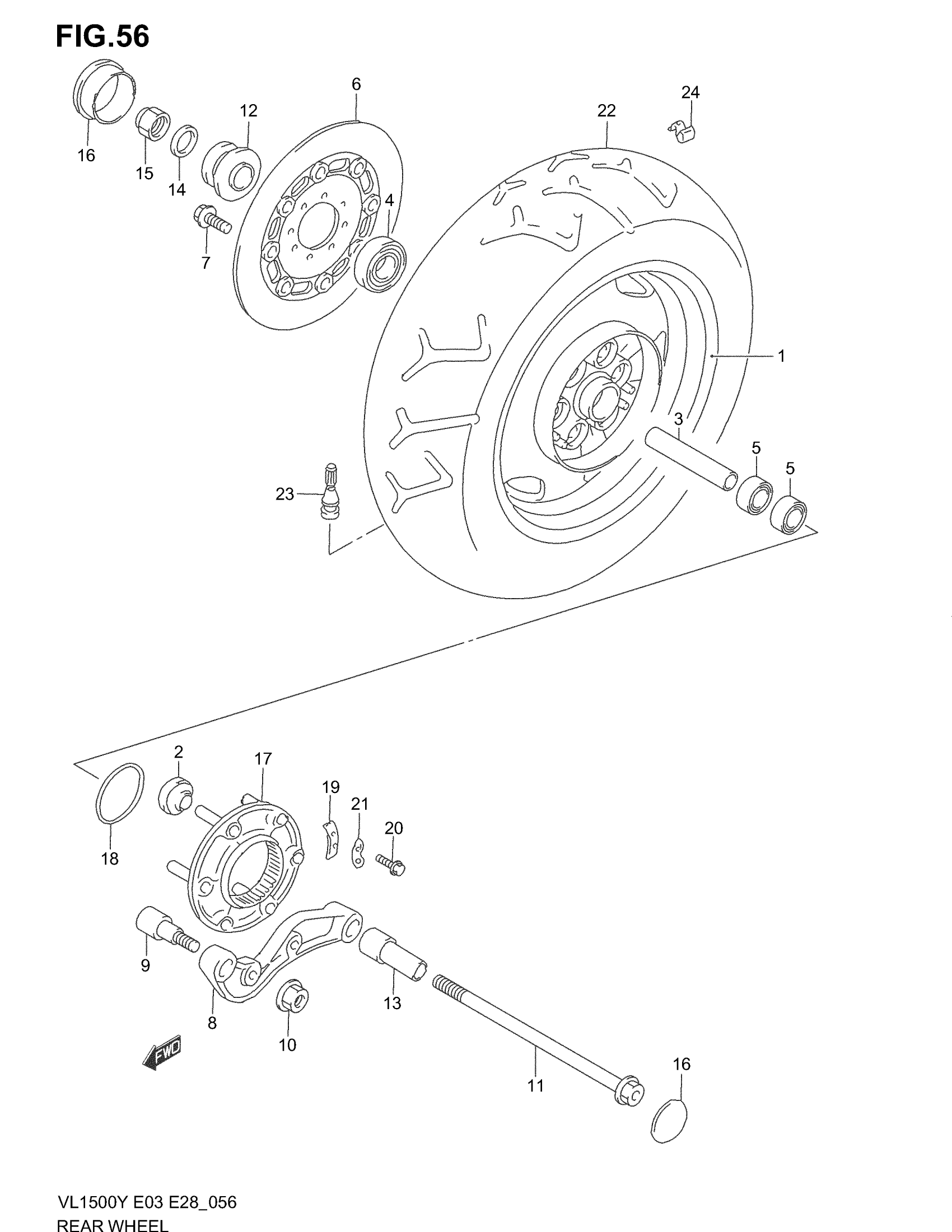

Suzuki VL1500 (2004) REAR WHEEL (MODEL W/X) Diagram

#

Description
Price

1

WHEEL SET, REAR (MT5.00X15) (SILVER) | Includes Item(s) 2

64100-10810-12R

Unavailable

2

BUSHING (12X41X34)

09319-12019

$13.11

3

SPACER (20.8X27.2X124)

09180-20112

$37.45

4

BEARING, RH

08133-62047

$28.61

5

BEARING, LH (20X47X14)

09262-20042

$23.28

6

DISC, REAR BRAKE

69210-10F00

Unavailable

7

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

8

BRACKET, REAR CALIPER This part replaces 69721-10F00.

69721-10F01

Unavailable

9

PIN, BRACKET

64241-10F00

$26.93

10

NUT This part replaces 08319-31123.

08319-3112B

$5.00

11

AXLE, REAR

64711-10F00

Unavailable

12

SPACER, AXLE RH

64740-10F00

Unavailable

13

SPACER, AXLE LH

64772-10F00

$25.68

14

WASHER This part replaces 08322-01183.

08322-0118B

$2.70

15

NUT

09159-18004

$24.75

16

CAP, REAR AXLE

64792-38B00

$28.92

17

JOINT ASSY, REAR HUB

64680-24A00

$277.25

18

O RING (D:2.1,ID:65.0)

09280-65003

$3.72

19

WASHER, THRUST

64677-45110

$2.92

20

BOLT (6X16)

09119-06049

$1.56

21

WASHER

09169-06030

$3.15

22

TIRE, REAR (180/70-15M/C 76H) (BRIDGESTONE)

65110-10F00

Unavailable

23

VALVE ASSY, WHEEL RIM TR412

43130-24A00

$8.85

24

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

$5.82

24

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

$5.50

24

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

$6.42
