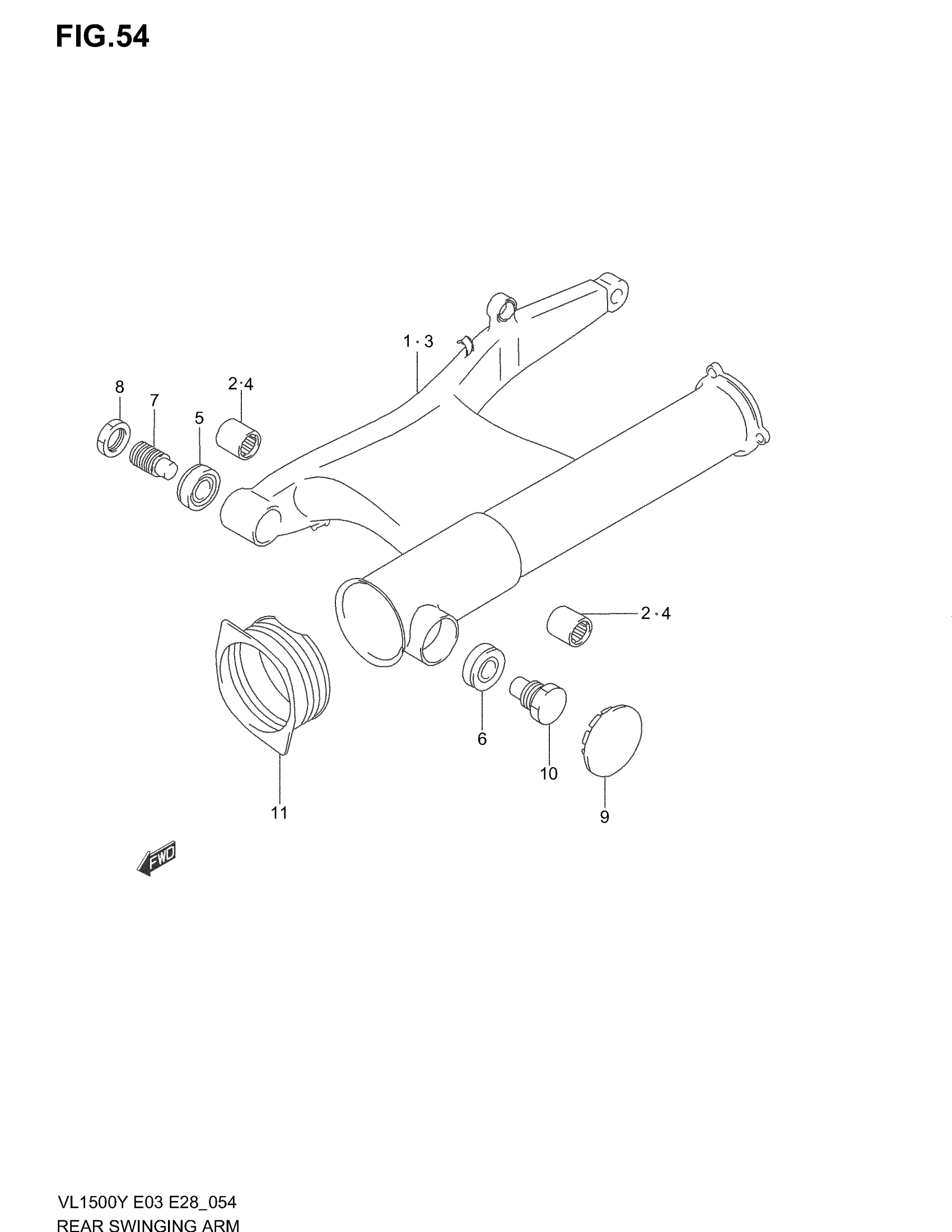

Suzuki VL1500 (2004) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR (BLACK) | MODEL W/X

61100-10F00-019

Unavailable

2

BEARING, ROD (20X27X23.5) | MODEL W/X

09263-20071

$25.92

3

SWINGING ARM SET, REAR (BLACK) | MODEL Y/K1/K2/K3/K4; Includes Item(s) 4

61100-10820-019

Unavailable

4

BEARING, ROD (20X27X23.5) | MODEL Y/K1/K2/K3/K4

09263-20071

$25.92

5

BEARING, PIVOT RH (17X40X13.25,WITH PLATE)

09265-17013

$82.55

6

BEARING, PIVOT LH (17X40X13.25)

09265-17012

$69.07

7

BOLT, PIVOT RH

61213-24A00

Unavailable

8

NUT, PIVOT RH

09140-24007

$3.89

9

CAP, PIVOT LH

61222-05A01

$14.52

10

BOLT, PIVOT LH

61213-10F00

Unavailable

11

BOOT,PROPELLER This part replaces 61372-10F00.

61372-10F01

$23.60
