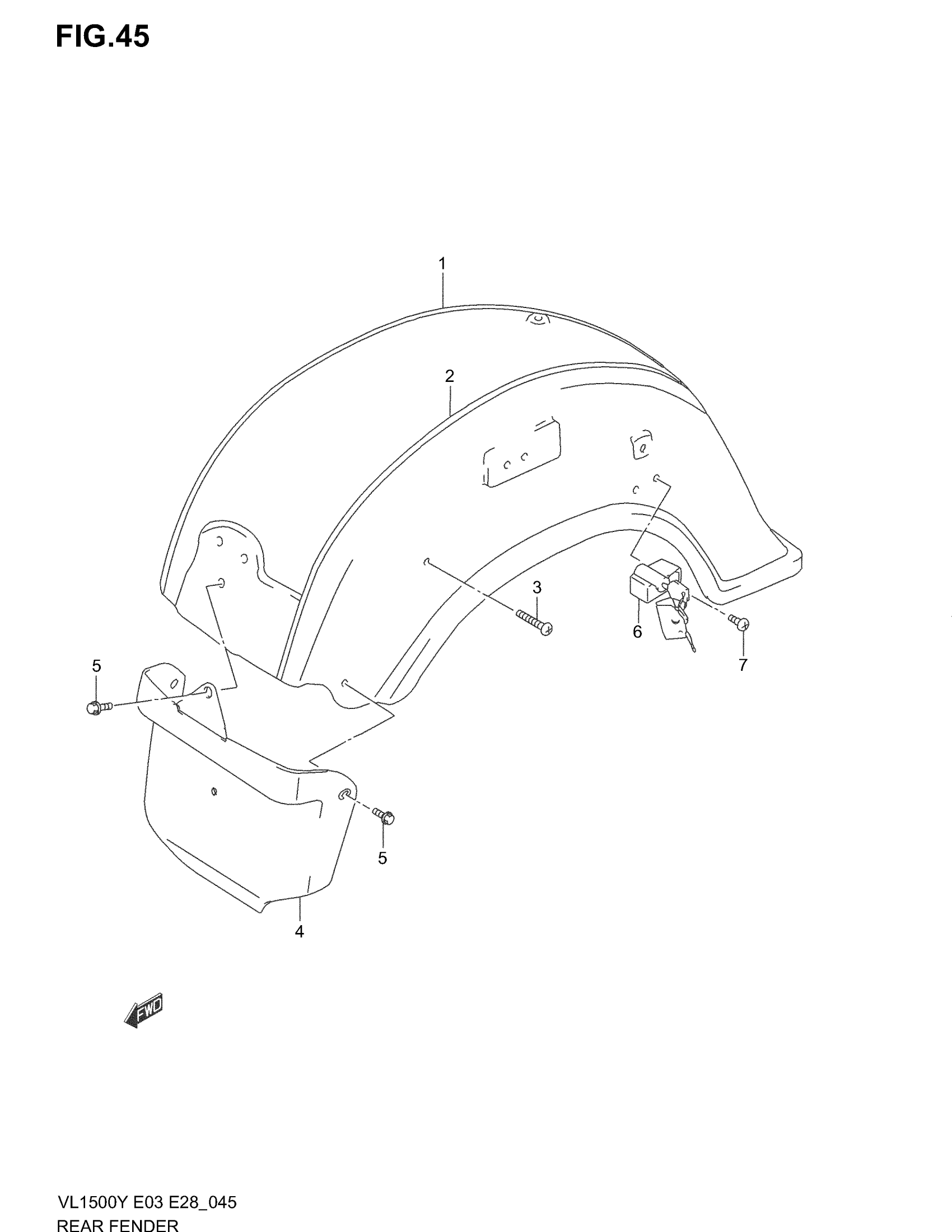

Suzuki VL1500 (2004) REAR FENDER (MODEL W/X) Diagram

#

Description
Price

1

FENDER, REAR | MODEL W This part replaces 63110-10F10-E6M.

63110-10F12-E6M

Unavailable

1

FENDER,REAR | MODEL W This part replaces 63110-10F10-K7D.

63110-10F12-K7D

Unavailable

1

FENDER, REAR | MODEL W This part replaces 63110-10F10-K7E.

63110-10F12-K7E

Unavailable

1

FENDER, REAR | MODEL X

63110-10F12-E6M

Unavailable

1

FENDER, REAR | MODEL X

63110-10F12-K7E

Unavailable

1

FENDER, REAR | MODEL X

63110-10F12-M4P

Unavailable

1

FENDER, REAR | MODEL X E28; Includes Item(s) 2 - 2

63110-10F12-M4R

Unavailable

2

TAPE SET | FOR E6M

68170-10F00-K7W

Unavailable

2

TAPE SET | FOR K7D

68170-10F00-K7Y

Unavailable

2

TAPE SET | FOR K7E

68170-10F00-K8A

Unavailable

2

TAPE SET | FOR M4P

68170-10F00-M5M

Unavailable

2

TAPE SET | FOR M4R

68170-10F00-M5N

Unavailable

3

BOLT This part replaces 63161-10F00.

09106-08156

$7.83

4

MUD GUARD, FRONT | MODEL W This part replaces 63411-10F00.

63411-10F01

$41.98

4

MUD GUARD, FRONT | MODEL X

63411-10F01

$41.98

5

BOLT

09111-06066

$2.62

6

LOCK SET, HELMET This part replaces 95700-10840.

95700-10841

Unavailable

7

SCREW

09139-06089

$3.03
