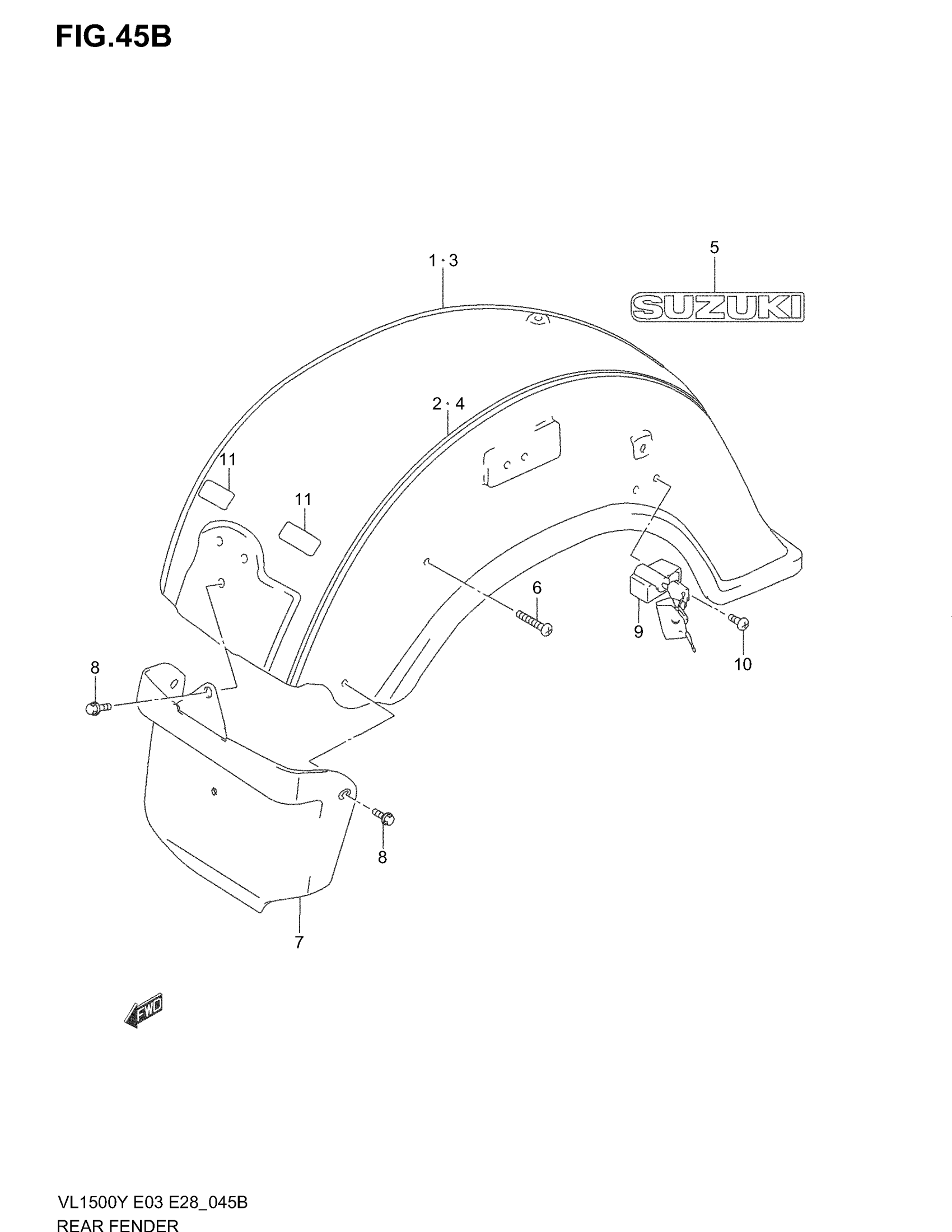

Suzuki VL1500 (2004) REAR FENDER (MODEL K3/K4) Diagram

#

Description
Price

1

FENDER, REAR (BLACK) | MODEL K3

63100-10F10-33J

Unavailable

1

FENDER, REAR | MODEL K3

63100-10F10-LA1

Unavailable

1

FENDER, REAR | MODEL K3; Includes Item(s) 2 - 2

63100-10F10-LT9

Unavailable

2

TAPE SET | MODEL K3 FOR 33J

68170-10F10-LW9

Unavailable

2

TAPE SET | MODEL K3 FOR LA1

68170-10F10-LA1

Unavailable

2

TAPE SET | MODEL K3 FOR LT9

68170-10F10-LT9

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 63100-10F50-YAY.

63100-10F51-YAY

Unavailable

3

FENDER, REAR | MODEL K4

63100-10F50-AAV

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL K4; Includes Item(s) 4 - 5 This part replaces 63100-10F50-AAW.

63100-10F51-AAW

Unavailable

4

TAPE SET | MODEL K4 FOR YAY

68170-10F20-ADH

Unavailable

4

TAPE SET | MODEL K4 FOR AAV

68170-10F20-ADJ

Unavailable

4

TAPE SET | MODEL K4 FOR AAW

68170-10F20-ADC

Unavailable

5

EMBLEM | MODEL K4 FOR YAY

68171-26F00-ACV

Unavailable

5

EMBLEM | MODEL K4 FOR AAV

68171-26F00-ADF

Unavailable

5

EMBLEM | MODEL K4 FOR AAW

68171-26F00-ADG

Unavailable

6

BOLT

09106-08156

$7.83

7

MUD GUARD, FRONT

63411-10F01

$41.98

8

BOLT

09113-06001

$2.73

9

LOCK SET, HELMET This part replaces 95700-10840.

95700-10841

Unavailable

10

SCREW

09139-06089

$3.03

11

TAPE, REAR FENDER

63131-10F00

$14.02
