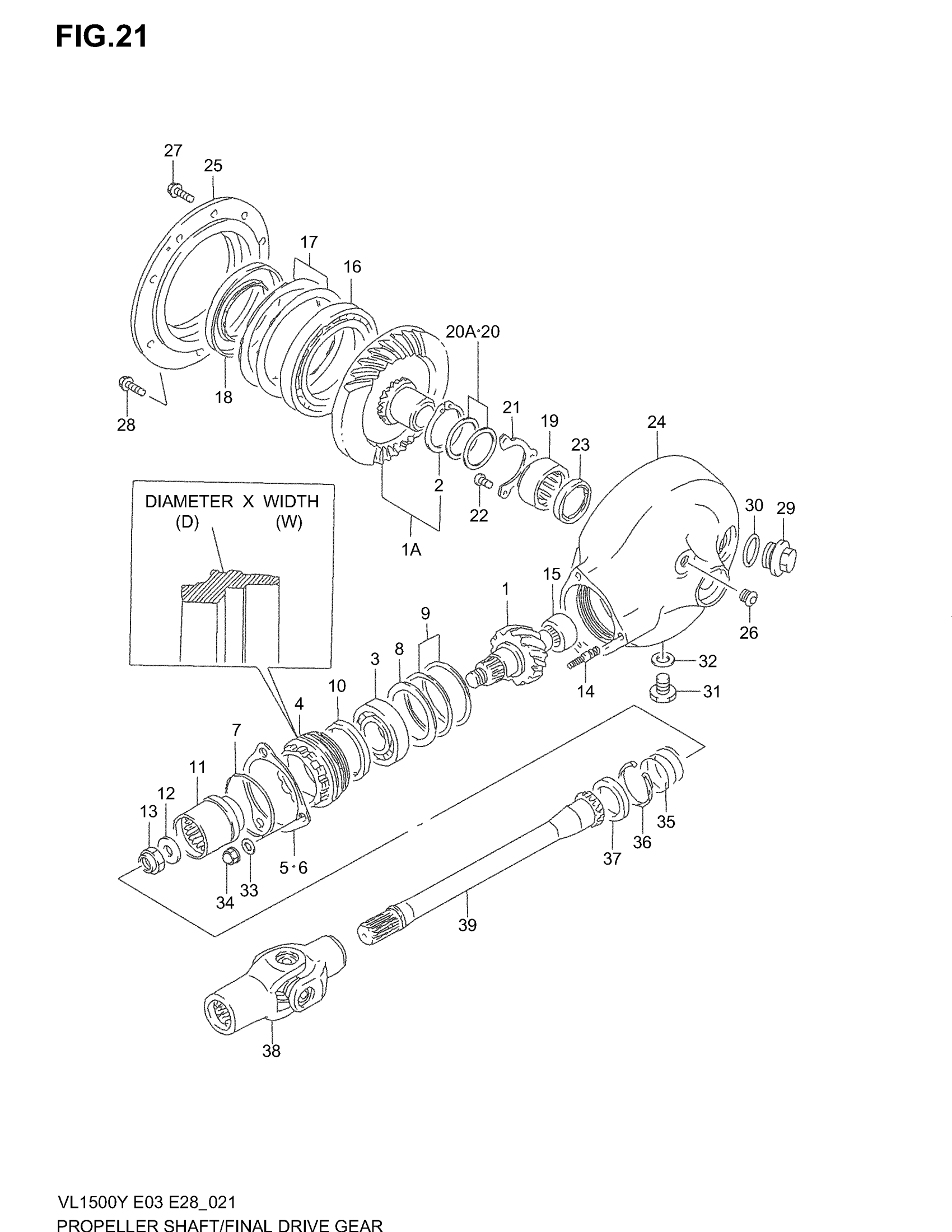

Suzuki VL1500 (2004) PROPELLER SHAFT/FINAL DRIVE GEAR Diagram

#

Description
Price

GEAR & CASE SET, FINAL BEVEL | Includes Item(s) 1 - 34 This part replaces 27300-10810.

27300-10813

Unavailable

1

GEAR, FINAL DRIVE BEVEL

27311-24A03

Unavailable

1A

GEAR, FINAL DRIVEN BEVEL

27320-38B00

Unavailable

2

CIRCLIP

08331-31526

Unavailable

3

BEARING (28X68X18)

09262-28023

$127.87

4

STOPPER, BEARING

27312-24A02

$74.08

5

PLATE, STOPPER

27313-38B00

$7.37

6

PLATE, STOPPER

27313-38B10

$7.37

7

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

8

WASHER (54X68X1.5)

09160-54001

Unavailable

9

.SHIM SET,FINAL DRIVE GEAR (T | T:0.3/0.35/0.4/0.5/0.6

27445-24810

$28.18

10

OIL SEAL (47X58X7)

09283-47002

$17.18

11

COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

12

WASHER (16X29X4)

09160-16029

$6.35

13

NUT

09159-16003

$4.00

14

BOLT,STUD This part replaces 01421-10253.

01421-1025B

$3.16

15

BEARING (20X34X18)

09263-20062

$46.98

16

BEARING, RH (85X130X14)

09262-85001

$202.27

17

SHIM SET, FINAL DRIVEN GEAR | T:0.35/0.4/0.5/0.6

27327-38810

$108.97

18

OIL SEAL (70X110X14.7)

09289-70002

$62.05

19

BEARING, LH (35X48X23.7)

09263-35004

$73.18

20

SHIM (35X46X0.95)

09160-35008

$4.92

20A

SHIM SET, FINAL DRIVE GEAR | T:1.05/1.1/1.2/1.25/1.35/ 1.4/1.45/1.50

27326-45811

Unavailable

21

HOLDER, BEARING

27329-45100

Unavailable

22

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

23

OIL SEAL (35X43X5)

09283-35033

$14.73

24

CASE, FINAL GEAR

27450-38B10

Unavailable

25

CASE, FINAL GEAR BEARING

27461-38B00

$239.92

26

PLUG, OIL DRAIN | MODEL W This part replaces 09248-16010.

09248-16012

$4.64

26

PLUG | MODEL X/Y/K1/K2/K3/K4

09248-16012

$4.64

27

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

28

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

$3.05

29

PLUG, OIL FILLER

09259-30007

$18.39

30

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

31

PLUG (MAGNETO) | MODEL W/X/Y This part replaces 09247-14001.

09247-14002

$5.24

31

PLUG (MAGNETO) | MODEL K1/K2/K3/K4

09247-14002

$5.24

32

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

33

WASHER

09164-10008

$1.71

34

NUT

09159-10026

$6.20

35

SPRING

09440-30008

$3.72

36

CIRCLIP

09381-40003

$4.64

37

OIL SEAL (30X40.5X5.5)

09283-30026

$10.40

38

YOKE,UNIVERSAL This part replaces 27100-38B00.

27100-38B01

$348.15

39

SHAFT, PROPELLER

27151-10F00

$260.67
