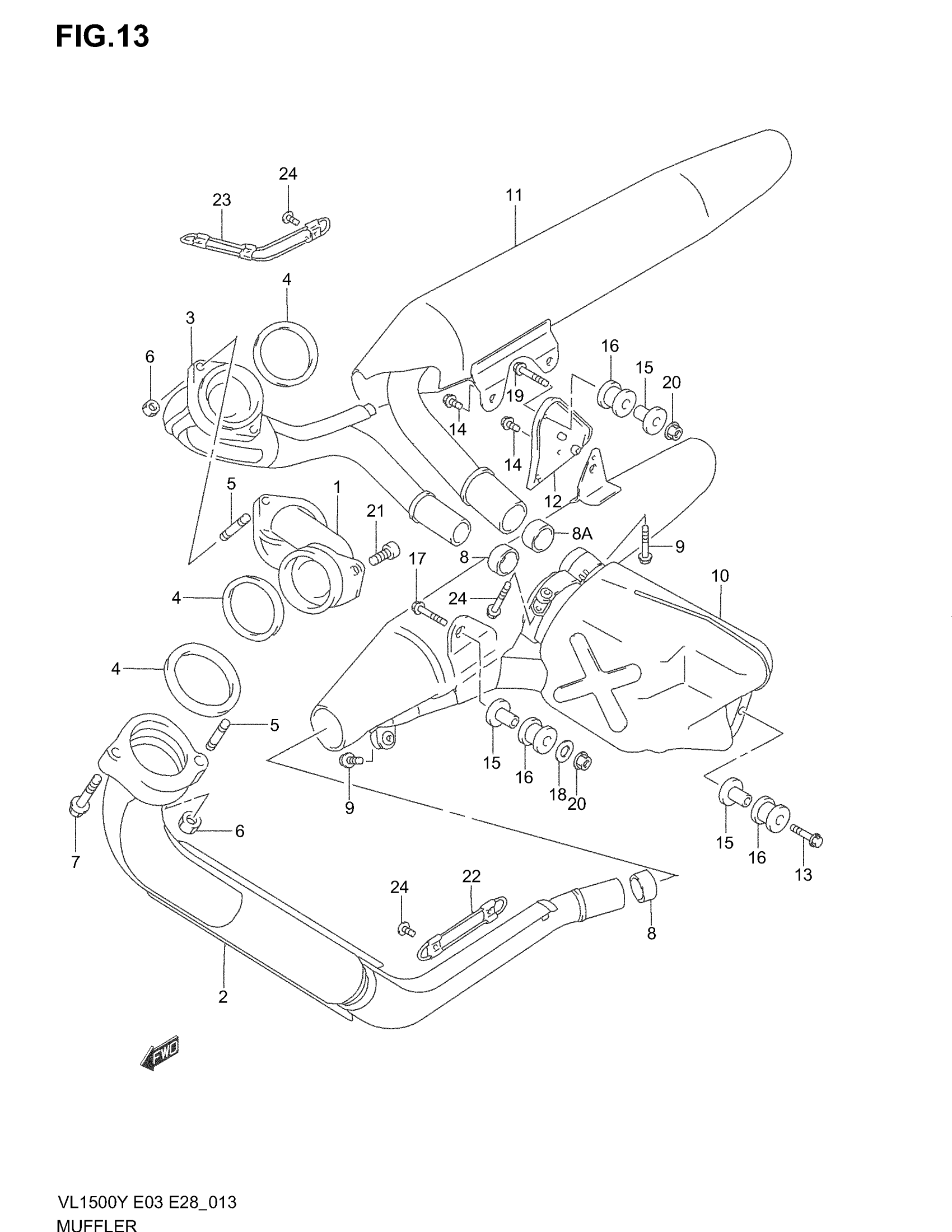

Suzuki VL1500 (2004) MUFFLER Diagram

#

Description
Price

1

MANIFOLD, EXHAUST REAR

14111-10F01

$202.92

2

PIPE, EXHAUST FRONT RH | MODEL W/X This part replaces 14150-10F00.

14150-10FA0

Unavailable

2

PIPE, EXHAUST FRONT RH | MODEL Y/K1/K2/K3/K4 This part replaces 14150-10F20.

14150-10FA0

Unavailable

3

PIPE, EXHAUST REAR LH

14160-10F00

Unavailable

4

GASKET, EXHAUST PIPE | MODEL W/X

14181-45C00

$7.38

4

GASKET, EXHAUST PIPE | MODEL Y/K1/K2/K3/K4

14181-10F00

$12.91

5

STUD BOLT (8X30)

09108-08142

$3.18

6

NUT

08313-20087

$2.19

7

BOLT, FRONT UPPER

09104-08026

$3.76

8

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$15.57

8A

CONNECTOR, MUFFLER | MODEL W/X

14771-14D00

$23.87

8A

CONNECTOR, MUF | MODEL Y/K1/K2/K3/K4 This part replaces 14771-13E00.

14771-13E10

$15.57

9

BOLT

09106-08137

$5.92

10

MUFFLER, LOWER RH | MODEL W/X This part replaces 14305-10F20-H01.

14305-10F50-H01

Unavailable

10

MUFFLER, LOWER RH | MODEL Y/K1/K2/K3/K4

14305-10F50-H01

Unavailable

11

BODY, MUFFLER UPPER LH | MODEL W/X This part replaces 14340-10F20-H01.

14340-10F50-H01

Unavailable

11

BODY, MUFFLER UPPER LH | MODEL Y/K1/K2/K3/K4

14340-10F50-H01

Unavailable

12

BRACKET, MUFFLER SUPPORT

14770-10F00

$31.05

13

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

14

BOLT, MUFFLER SUPPORT

09103-08069

$4.32

15

SPACER

09180-08156

$6.70

16

CUSHION

09320-12049

$10.68

17

BOLT This part replaces 01550-08453.

01550-0845A

$3.14

18

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

19

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

20

NUT This part replaces 08361-25088.

08361-2508A

$1.97

21

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

22

GUARD, EXHAUST RH | MODEL W/X This part replaces 14780-10F00.

14780-10F10

Unavailable

22

GUARD, EXHAUST RH | MODEL Y/K1/K2/K3/K4

14780-10F10

Unavailable

23

GUARD, EXHAUST LH | MODEL W/X This part replaces 14790-10F00.

14790-10F10

Unavailable

23

GUARD, EXHAUST LH | MODEL Y/K1/K2/K3/K4

14790-10F10

Unavailable

24

SCREW

09139-06078

$2.79
