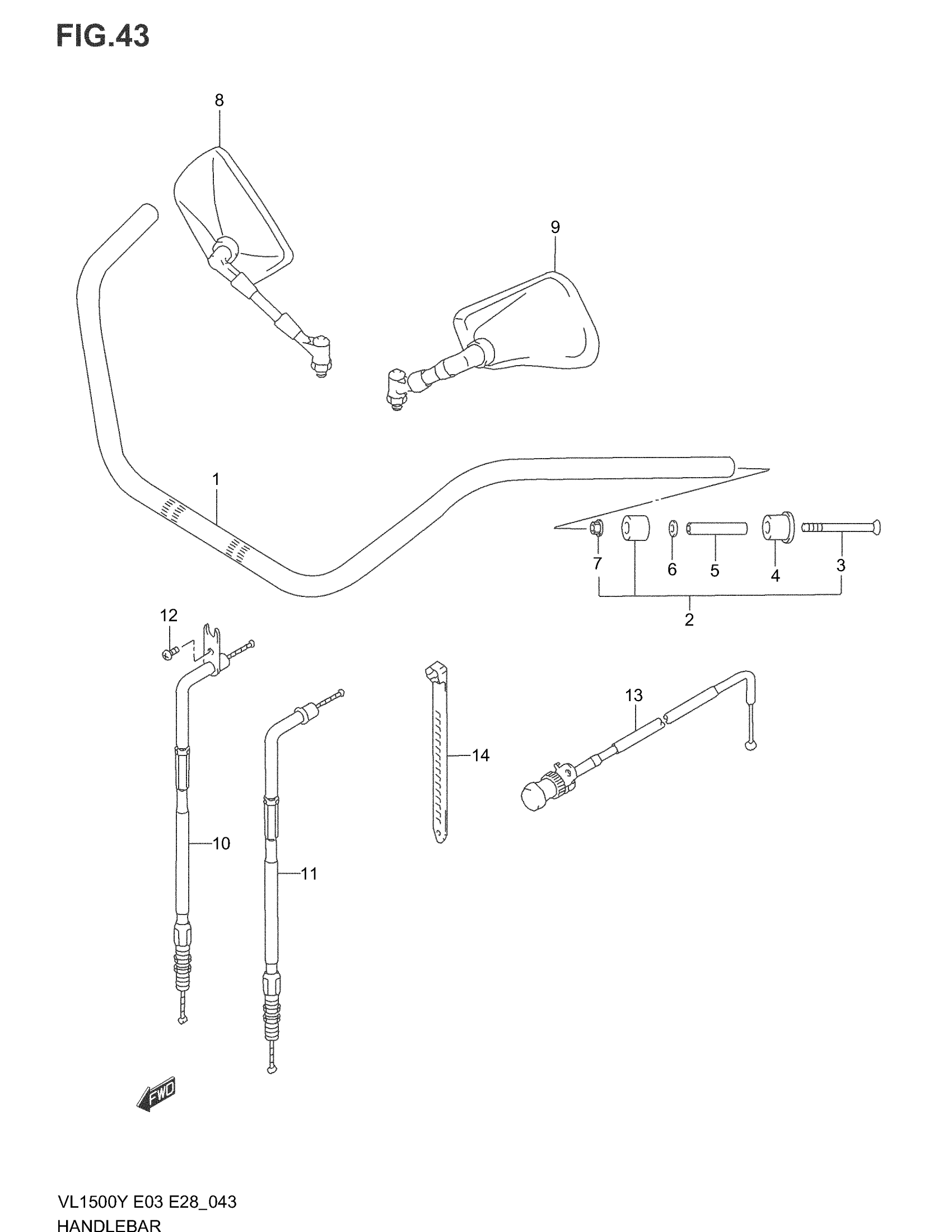

Suzuki VL1500 (2004) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-10F00

$354.95

2

BALANCER SET,HA | MODEL W/X This part replaces 56200-10860.

56200-10862

$130.38

2

BALANCER SET,HA | MODEL Y/K1/K2/K3/K4; Includes Item(s) 3 - 7 This part replaces 56200-10861.

56200-10862

$130.38

3

SCREW

09127-06017

$2.78

4

EXPANDER, OUTER

56272-26D01

$7.25

5

SPACER | MODEL W/X This part replaces 56276-09D00.

56276-09D01

Unavailable

5

SPACER | MODEL Y/K1/K2/K3/K4

56276-09D01

Unavailable

6

WASHER (6.5X18X2) | MODEL W/X This part replaces 09160-06013.

09160-06121

$3.38

6

WASHER | MODEL Y/K1/K2/K3/K4

09160-06121

$3.38

7

NUT

09159-06024

$2.11

8

MIRROR ASSY,REA | MODEL W/X/Y/K1/K2 This part replaces 56500-03F10.

56500-03FB0

$271.37

8

MIRROR ASSY, REAR VIEW RH | MODEL K3/K4 This part replaces 56500-41F00.

56500-41F01

$84.38

9

MIRROR ASSY,REA | MODEL W/X/Y/K1/K2 This part replaces 56600-03F10.

56600-03FB0

$376.91

9

MIRROR ASSY, REAR VIEW LH | MODEL K3/K4 This part replaces 56600-41F00.

56600-41F01

$84.38

10

CABLE ASSY,THRO This part replaces 58300-10F00.

58300-10F0V

$48.77

11

CABLE ASSY,THRO This part replaces 58300-10F10.

58300-10F1V

$48.77

12

SCREW

02142-05087

$1.49

13

CABLE ASSY, STARTER

58400-10F00

$35.94

14

CLAMP

09407-14403

$2.26
