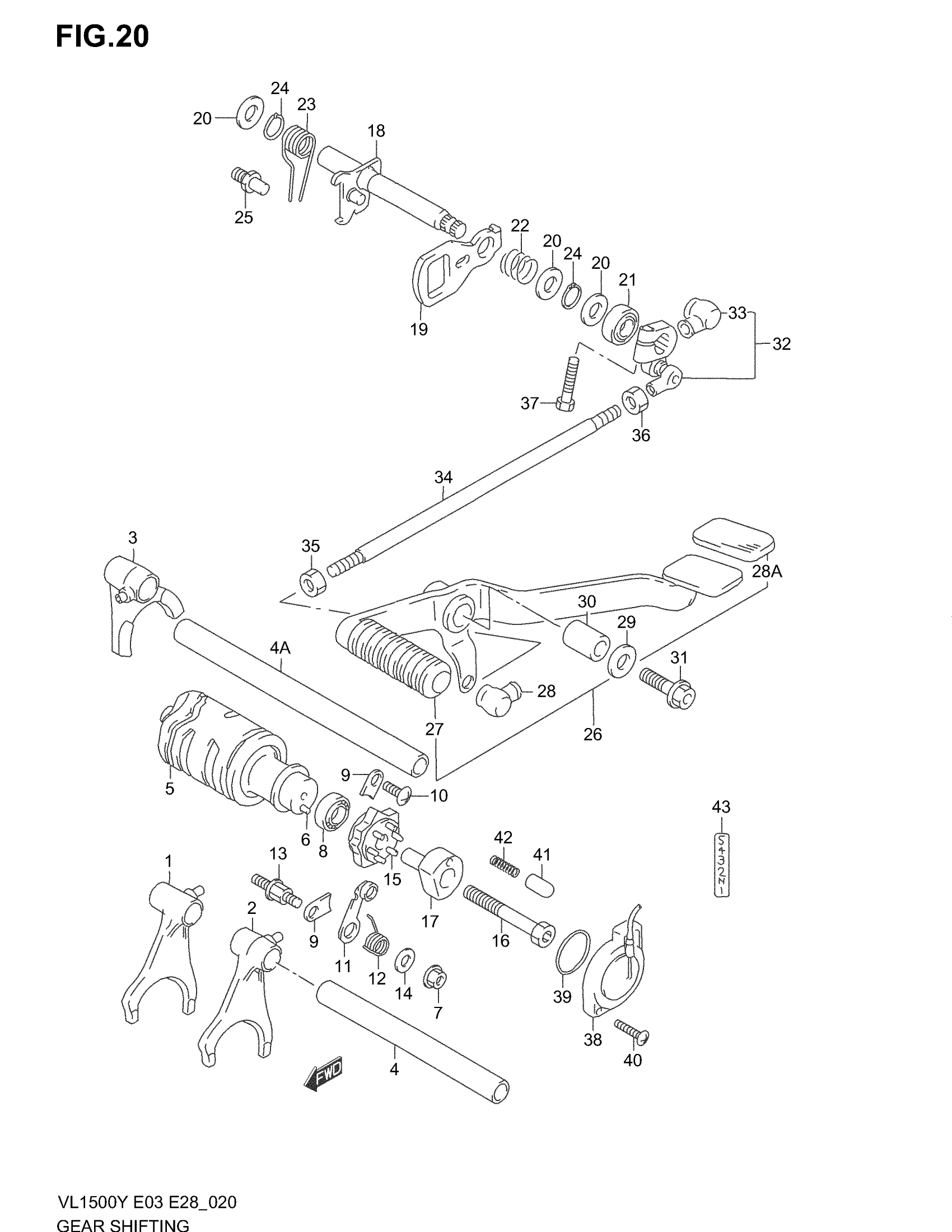

Suzuki VL1500 (2004) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-38B11

$83.08

2

FORK, GEAR SHIFTING NO.2

25221-38B10

Unavailable

3

FORK, GEAR SHIFTING NO.3 This part replaces 25231-10F00.

25231-10F01

Unavailable

4

SHAFT, GEAR SHIFTING FORK

25411-10F10

Unavailable

4A

SHAFT, GEAR SHIFTING FORK NO.2

25411-10F20

Unavailable

5

CAM, GEAR SHIFTING | MODEL W/X/Y/K1/K2 This part replaces 25310-10F00.

25310-10F01

Unavailable

5

CAM, GEAR SHIFTING | MODEL K3/K4; Includes Item(s) 6

25310-10F01

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

BEARING (25X47X8)

09262-25006

$25.54

9

RETAINER, SHIFT CAM BEARING

24742-18A00

$4.35

10

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

11

STOPPER, CAM

25350-24B00

$14.85

12

SPRING

25355-13E10

Unavailable

13

SUPPORT

25356-12C00

$17.37

14

WASHER

08211-06181

$1.80

15

PLATE, GEAR SHIFT CAM This part replaces 25380-10F00.

25381-10F10

$69.32

16

BOLT

09106-06083

$5.00

17

HOLDER, NEUTRAL SWITCH

25312-38B01

$27.28

18

SHAFT, GEAR SHIFT | MODEL W This part replaces 25510-10F00.

25510-10F01

Unavailable

18

SHAFT, GEAR SHIFT | MODEL X/Y/K1/K2/K3/K4

25510-10F01

Unavailable

19

PLATE, GEAR SHIFT

25512-13E11

$30.26

20

WASHER, RH (14X22X1.0)

09181-14167

$2.53

21

SEAL, SHIFT SHAFT (14X22X6)

09283-14006

$6.70

22

SPRING, SHIFT PLATE

09440-17009

$1.71

23

SPRING

09444-20001

$5.24

24

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

25

STOPPER, ARM | MODEL W/X/Y This part replaces 25671-01000.

25671-01011

$4.48

25

STOPPER, ARM | MODEL K1/K2/K3/K4

25671-01011

$4.48

26

LEVER ASSY,GEAR | MODEL W This part replaces 25600-10F01.

25600-10F03

$159.77

26

LEVER ASSY,GEAR | MODEL X/Y/K1/K2/K3/K4; Includes Item(s) 27 - 28A This part replaces 25600-10F02.

25600-10F03

$159.77

27

RUBBER, FRONT

25652-10F00

$6.58

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

28A

RUBBER, REAR

43151-01400

$6.00

29

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10127.

09160-10093

$2.35

30

SPACER, GEAR SHIFT LEVER

25617-10F00

$14.02

31

BOLT, GEAR SHIFT

09103-10300

$6.28

32

ARM,GEAR SHIFT | %F.NO.2104756 This part replaces 25520-19C02.

25520-19C03

$34.66

32

ARM,GEAR SHIFT | F.NO.2104757%; Includes Item(s) 33 This part replaces 25520-47000.

25520-47021

$42.92

33

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

34

ROD, LINK

25525-17E11

$11.88

35

NUT | MODEL W/X/Y/K1/K2

09140-06011

$1.49

35

NUT | MODEL K3/K4

09140-06025

$2.05

36

NUT This part replaces 08310-00063.

08310-0006A

$1.84

37

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

38

BASE ASSY, NEUT SW TERM

37720-10F00

Unavailable

39

O RING (D:2.4,ID:35.5)

09280-35006

$3.04

40

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

41

CONTACT, SWITCH

09209-04021

$10.60

42

SPRING

09440-02003

$1.92

43

LABEL, GEAR SHIFT

68392-38B00

Unavailable
