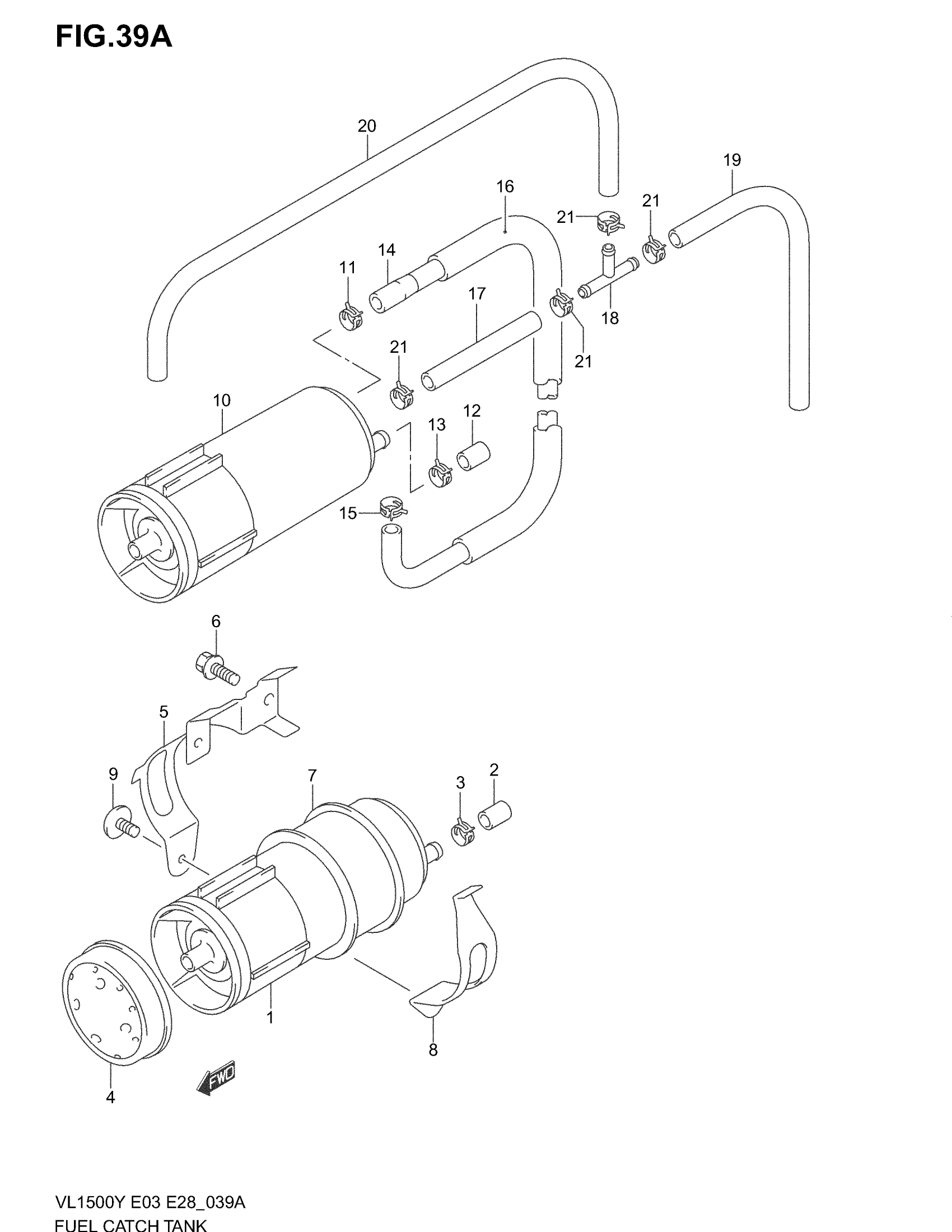

Suzuki VL1500 (2004) FUEL CATCH TANK (MODEL X/Y/K1/K2/K3/K4) Diagram

#

Description
Price

1

TANK, FUEL CATCH

44390-10F00

$84.32

2

CAP

09251-07003

$2.53

3

CLIP This part replaces 09401-11407.

09401-11415

$2.23

4

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

5

BRACKET, CATCH TANK

44881-10F00

Unavailable

6

BOLT, BRACKET

09116-06168

$2.50

7

CUSHION CANISTER

44883-26E00

Unavailable

8

HOLDER

44882-10F00

Unavailable

9

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

10

CANISTER ASSY CHARCOAL | E33

17210-26E00

$324.10

11

CLIP, CANISTER | E33

09401-11413

$2.26

12

CAP | E33

09251-07003

$2.53

13

CLIP | E33 This part replaces 09401-11407.

09401-11415

$2.23

14

HOSE, CARB PURGE | E33

44433-10F00

Unavailable

15

CLIP, CARB PURGE | E33

09401-10402

$2.42

16

PROTECTOR (L:600!280) | E33

09351-14152-600

$10.62

17

HOSE, CATCH TANK BREATHER (L:600!80) | E33

09355-54116-600

$12.06

18

.JOINT,3 WAY | E33

09367-06002

$2.50

19

HOSE, BREATHER VALVE (L:600!360) | E33

09355-54116-600

$12.06

20

HOSE, CARB CONTROL VALVE (L:600!500) | E33

09355-54116-600

$12.06

21

CLIP (ID:10.5,H:8) | E33

09401-10409

$2.26
