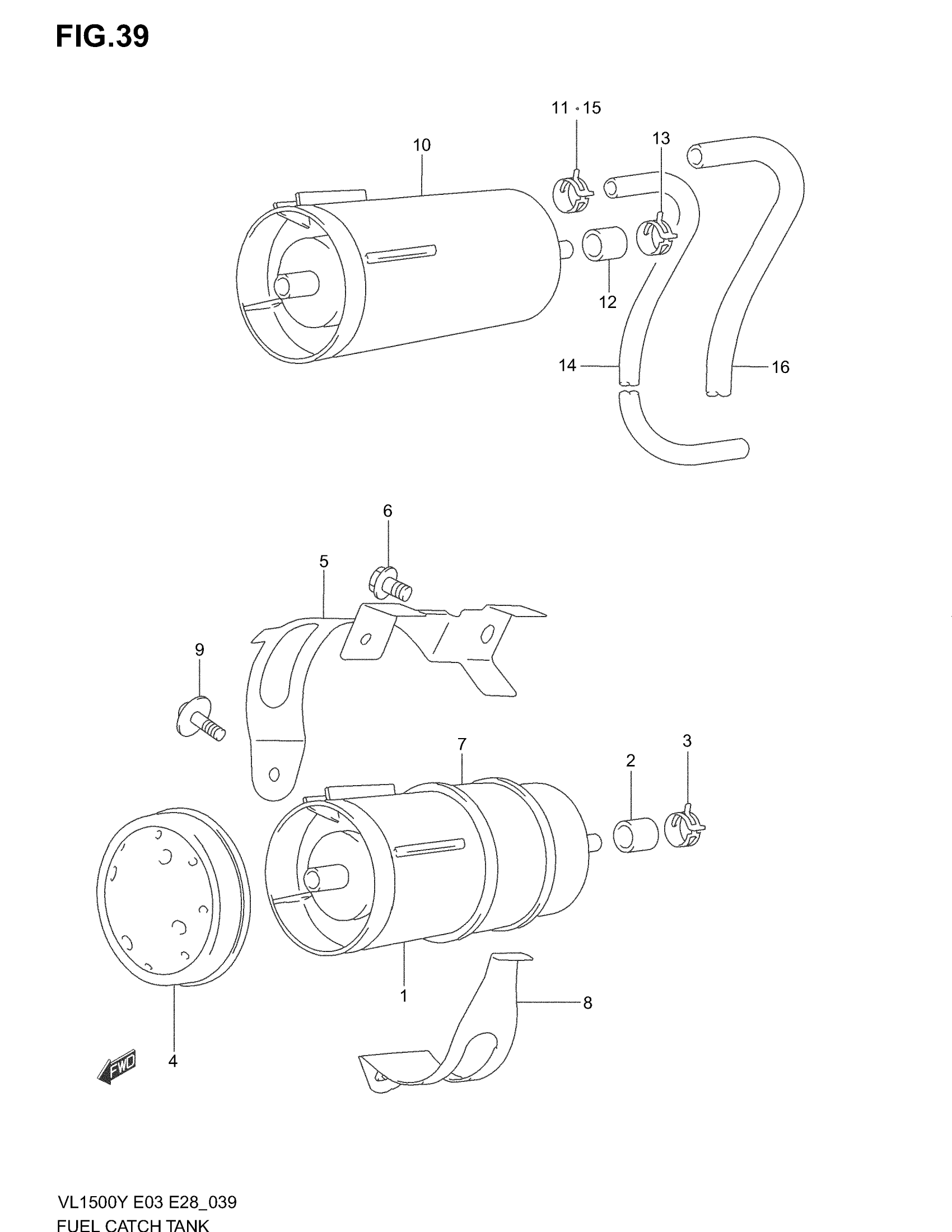

Suzuki VL1500 (2004) FUEL CATCH TANK (MODEL W) Diagram

#

Description
Price

1

TANK, FUEL CATCH

44390-10F00

$84.32

2

CAP

09251-07003

$2.53

3

CLIP This part replaces 09401-11407.

09401-11415

$2.23

4

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

5

BRACKET, CATCH TANK

44881-10F00

Unavailable

6

BOLT, BRACKET

09116-06168

$2.50

7

CUSHION CANISTER

44883-26E00

Unavailable

8

HOLDER

44882-10F00

Unavailable

9

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

10

CANISTER ASSY CHARCOAL | E33

17210-26E00

$324.10

11

CLIP, CANISTER | E33

09401-11413

$2.26

12

CAP | E33

09251-07003

$2.53

13

CLIP | E33 This part replaces 09401-11407.

09401-11415

$2.23

14

HOSE, CARB PURGE | E33

44433-10F00

Unavailable

15

CLIP, CARB PURGE | E33

09401-10402

$2.42

16

PROTECTOR (L:600!280) | E33

09351-14152-600

$10.62
