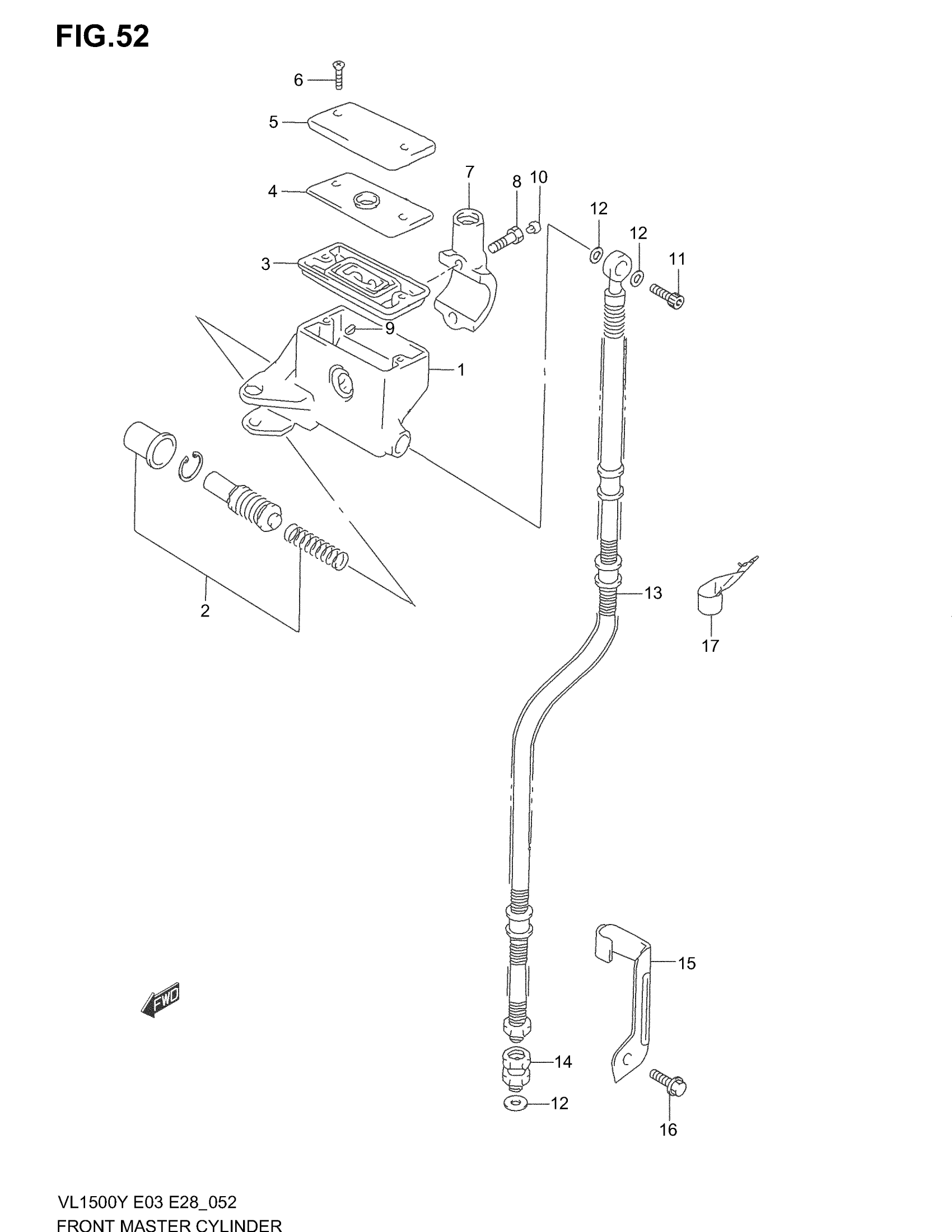

Suzuki VL1500 (2004) FRONT MASTER CYLINDER (MODEL W/X/Y/K1) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-10F00

Unavailable

2

PISTON & CUP SET

59600-04810

$45.20

3

DIAPHRAGM

59667-49460

$9.78

4

PLATE

59668-41C00

$9.32

5

CAP

59669-10F00

$71.45

6

SCREW

02122-04127

$1.97

7

HOLDER

59671-38A00

$37.11

8

BOLT

07130-06207

$3.04

9

PROTECTOR

59664-48B00

$11.02

10

CAP

09250-05008

$3.76

11

UNION This part replaces 09360-10042.

09360-10062

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE, FRONT BRAKE | MODEL W

59480-10F00

Unavailable

13

HOSE, FRONT BRAKE | MODEL X/Y/K1

59480-10F10

Unavailable

14

ADAPTER, BRAKE HOSE | MODEL W/X

59290-43500

$36.17

14

ADAPTER, BRAKE HOSE | MODEL Y/K1

59290-14501

$36.17

15

GUIDE, BRAKE HOSE

59268-10F00

Unavailable

16

BOLT

01550-06127

$2.30

17

CLAMP, BRAKE HOSE UPPER | MODEL X/Y/K1

59266-10F00

Unavailable
