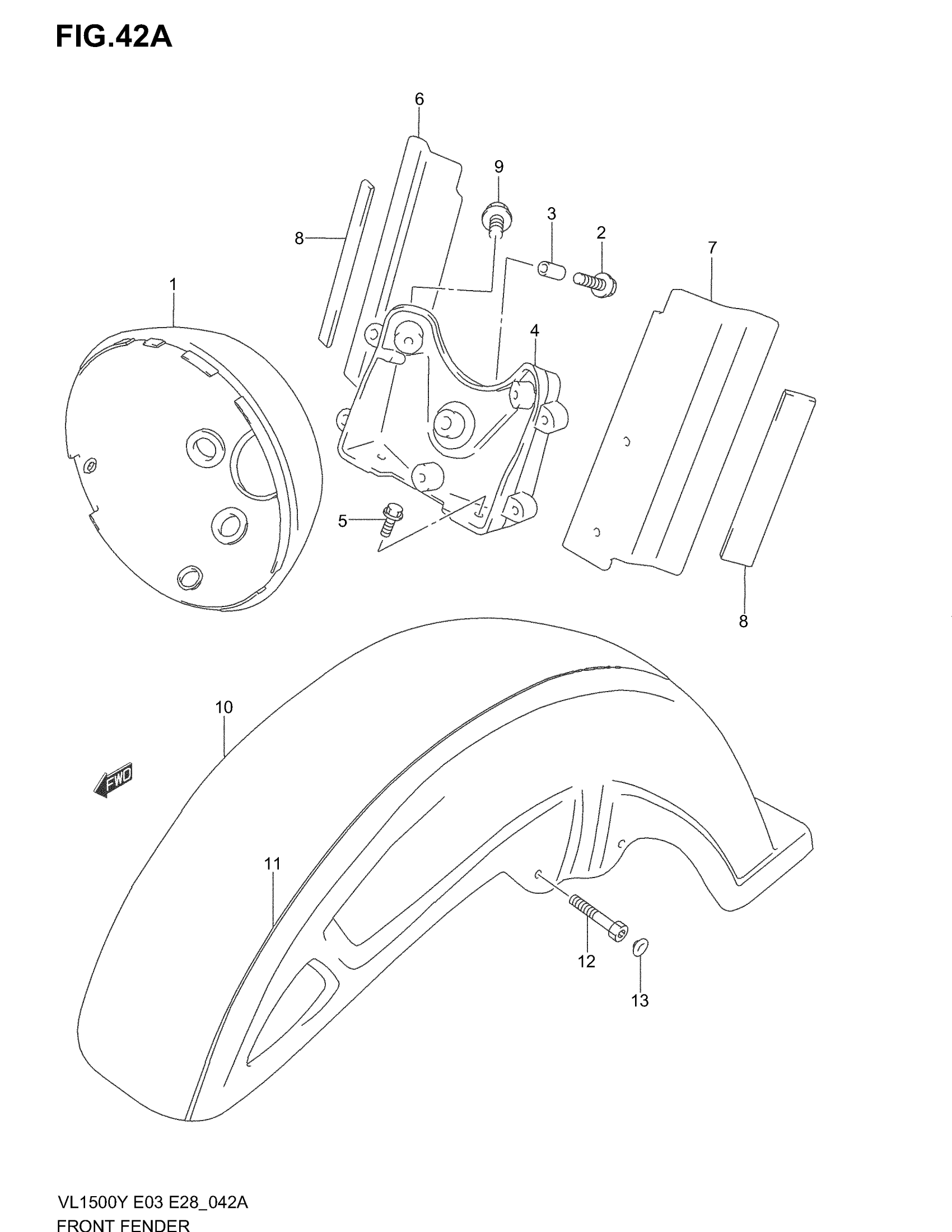

Suzuki VL1500 (2004) FRONT FENDER (MODEL Y/K1/K2) Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51810-10F00

$311.85

2

BOLT

09116-06147

$3.20

3

SPACER

09180-06076

$2.68

4

BRACKET

51850-10F01

Unavailable

5

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

6

PLATE, BRACKET RH

51871-10F00

Unavailable

7

PLATE, BRACKET LH

51881-10F00

Unavailable

8

CUSHION

33651-37000

$4.48

9

SCREW

09139-06027

$2.16

10

NO DESCRIPTION AVAILABLE | MODEL Y/K1 This part replaces 53110-10F10-33J.

53110-10F11-33J

Unavailable

10

FENDER,FRONT | MODEL Y This part replaces 53110-10F10-BU6.

53110-10F11-BU6

Unavailable

10

FENDER,FRONT | MODEL Y This part replaces 53110-10F10-BU7.

53110-10F11-BU7

Unavailable

10

FENDER,FRONT | MODEL K1 This part replaces 53110-10F10-FG1.

53110-10F11-FG1

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 53110-10F10-FG2.

53110-10F11-FG2

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL K2 This part replaces 53110-10F20-2AX.

53110-10F21-2AX

Unavailable

10

FENDER,FRONT | MODEL K2 This part replaces 53110-10F20-JE2.

53110-10F21-JE2

Unavailable

10

FENDER,FRONT | MODEL K2; Includes Item(s) 11 - 11 This part replaces 53110-10F20-JE3.

53110-10F21-JE3

Unavailable

11

TAPE SET | MODEL Y/K1 FOR 33J

68150-10F00-BU8

Unavailable

11

TAPE SET | MODEL Y FOR BU6

68150-10F00-BU9

Unavailable

11

TAPE SET | MODEL Y FOR BU7

68150-10F00-BV1

Unavailable

11

TAPE SET | MODEL K1 FOR FG1

68150-10F00-EZ7

Unavailable

11

TAPE SET | MODEL K1 FOR FG2

68150-10F00-EZ9

Unavailable

11

TAPE SET | MODEL K2 FOR 2AX

68150-10F00-FH5

Unavailable

11

TAPE SET | MODEL K2 FOR JE2

68150-10F00-JE5

Unavailable

11

TAPE SET | MODEL K2 FOR JE3

68150-10F00-JE4

Unavailable

12

BOLT

07130-08407

$3.14

13

CAP

09250-06011

$2.50
