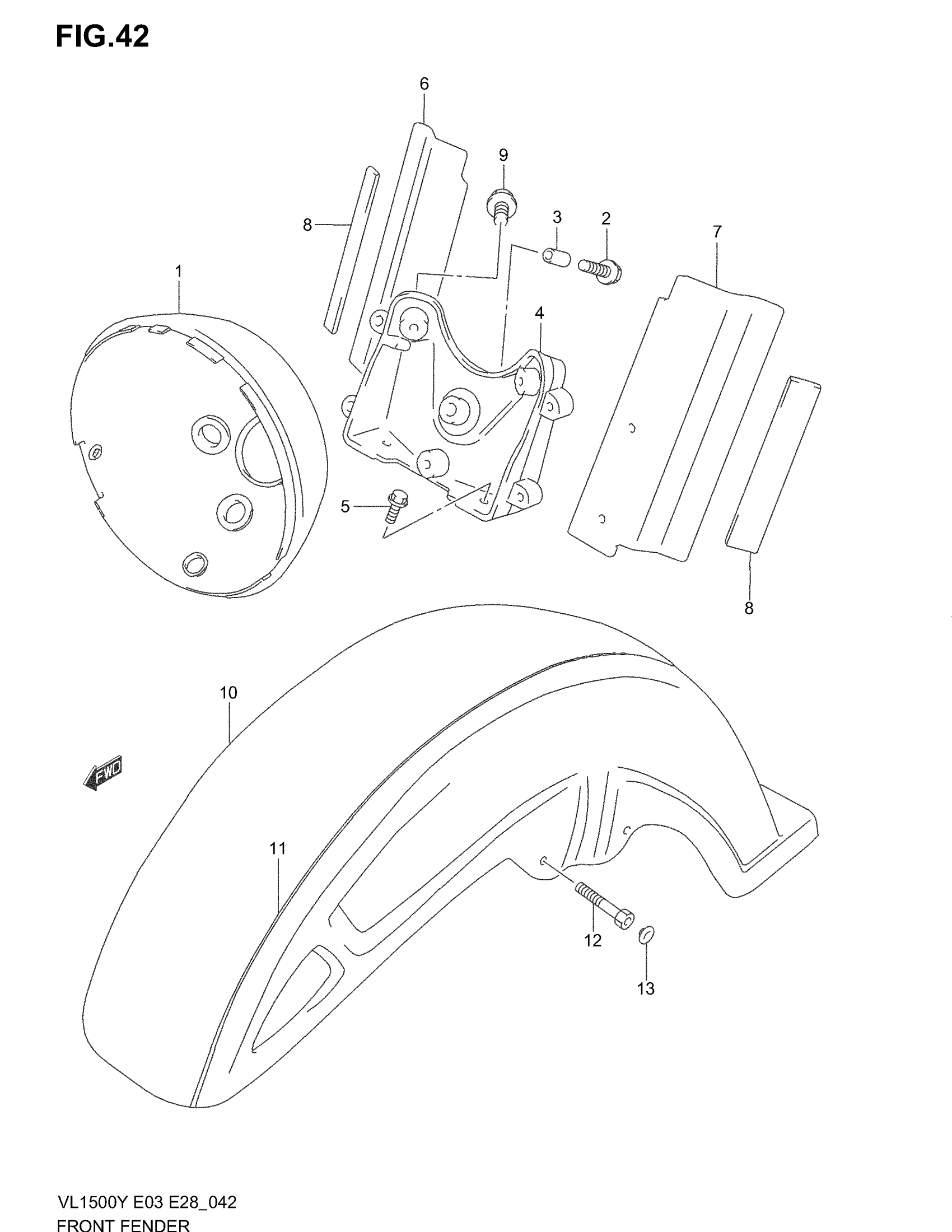

Suzuki VL1500 (2004) FRONT FENDER (MODEL W/X) Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51810-10F00

$311.85

2

BOLT

09116-06147

$3.20

3

SPACER

09180-06076

$2.68

4

BRACKET This part replaces 51850-10F00.

51850-10F01

Unavailable

5

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

6

PLATE, BRACKET RH

51871-10F00

Unavailable

7

PLATE, BRACKET LH

51881-10F00

Unavailable

8

CUSHION

33651-37000

$4.48

9

SCREW

09139-06027

$2.16

10

FENDER,FRONT This part replaces 53110-10F00-E6M.

53110-10F01-E6M

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 53110-10F00-K7D.

53110-10F01-K7D

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 53110-10F00-K7E.

53110-10F11-K7E

Unavailable

10

FENDER,FRONT | MODEL X This part replaces 53110-10F00-M4P.

53110-10F01-M4P

Unavailable

10

FENDER, FRONT | MODEL X E28; Includes Item(s) 11 - 11

53110-10F00-M4R

Unavailable

11

TAPE SET | FOR E6M

68150-10F00-K7W

Unavailable

11

TAPE SET | FOR K7D

68150-10F00-K7Y

Unavailable

11

TAPE SET | FOR K7E

68150-10F00-K8A

Unavailable

11

TAPE SET | FOR M4P

68150-10F00-M5M

Unavailable

11

TAPE SET | E28 FOR M4R

68150-10F00-M5N

Unavailable

12

BOLT

07130-08457

$4.60

13

CAP

09250-06011

$2.50
