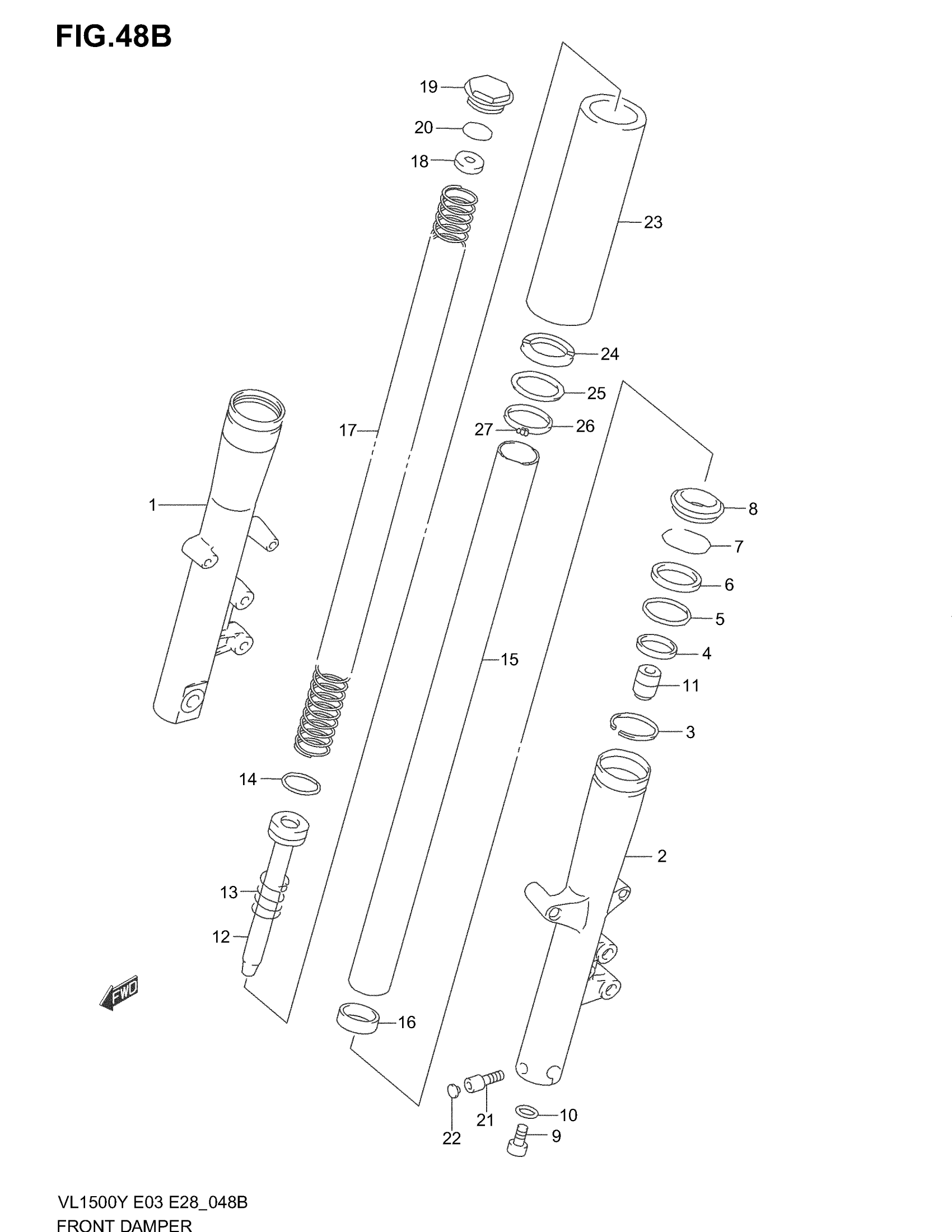

Suzuki VL1500 (2004) FRONT DAMPER (MODEL K2/K3/K4) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-10F50

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 21

51104-10F50

Unavailable

1

TUBE, OUTER RH

51131-10F50

$639.30

2

TUBE, OUTER LH

51141-10F50

Unavailable

3

GUIDE, CASE

51469-10F00

$17.70

4

BUSH, GUIDE

51152-11D60

$14.26

5

SPACER, SEAL

51168-38B00

$6.49

6

SEAL, OIL

51153-08D00

$22.96

7

RING

51556-38B00

$7.22

8

SEAL, DUST

51571-47D50

$21.90

9

.BOLT, CENTER This part replaces 51147-42AA0.

51147-06F10

$5.98

10

GASKET

51148-36011

$3.56

11

PIECE, OIL LOCK

51195-10F00

$30.22

12

PIPE, SEAT

51146-10F00

Unavailable

13

SPRING

51177-10F00

Unavailable

14

RING

51196-47D00

$8.83

15

TUBE, INNER

51110-10F20

Unavailable

16

BUSH, SLIDE This part replaces 51121-10F00.

51121-42E00

$18.32

17

SPRING, FRONT

51171-10F00

Unavailable

18

BOLT, INNER

51353-10F00

Unavailable

19

BOLT, FORK

51351-38B00

$86.82

20

O RING

51117-38B00

$3.43

21

BOLT, LH

51166-10F00

$8.93

22

CAP

09250-06009

$3.42

23

CASE, UNDER

51464-10F00

Unavailable

24

SEAT, RUBBER

51468-10F00

$21.83

25

WASHER

51467-10F00

$12.65

26

SPACER

51465-10F00

Unavailable

27

BOLT

51466-10F00

$7.53
