Description

Price

CALIPER ASSY, FRONT RH

59100-33DD0-999

$348.87

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 10

59300-33DD0-999

Unavailable

1

PISTON SET This part replaces 59300-33831.

59301-20820

$37.59

2

SEAL SET, PISTON

59300-33841

$15.45

3

.SPRING, PAD RH

59115-33D00

$14.90

3

.SPRING, PAD LH

59315-33D00

$14.90

4

BOOT

59112-44B00

$8.91

5

.PIN, PAD

59141-44B01

$9.09

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.CLIP, PAD PIN

69142-45000

$4.34

8

.GUIDE, PAD

59116-33D00

$7.97

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

PAD & SHIM SET RH

59102-33880

$70.97

11

PAD & SHIM SET LH | Includes Item(s) 12 - 13

59302-33870

$57.92

12

.SHIM, PAD

59171-33D00

$14.85

13

.SHIM, PAD NO.2

59172-33D00

$16.78

14

BOLT

09106-10038

$3.55

15

CAP, BOLT

09250-08014

$2.85

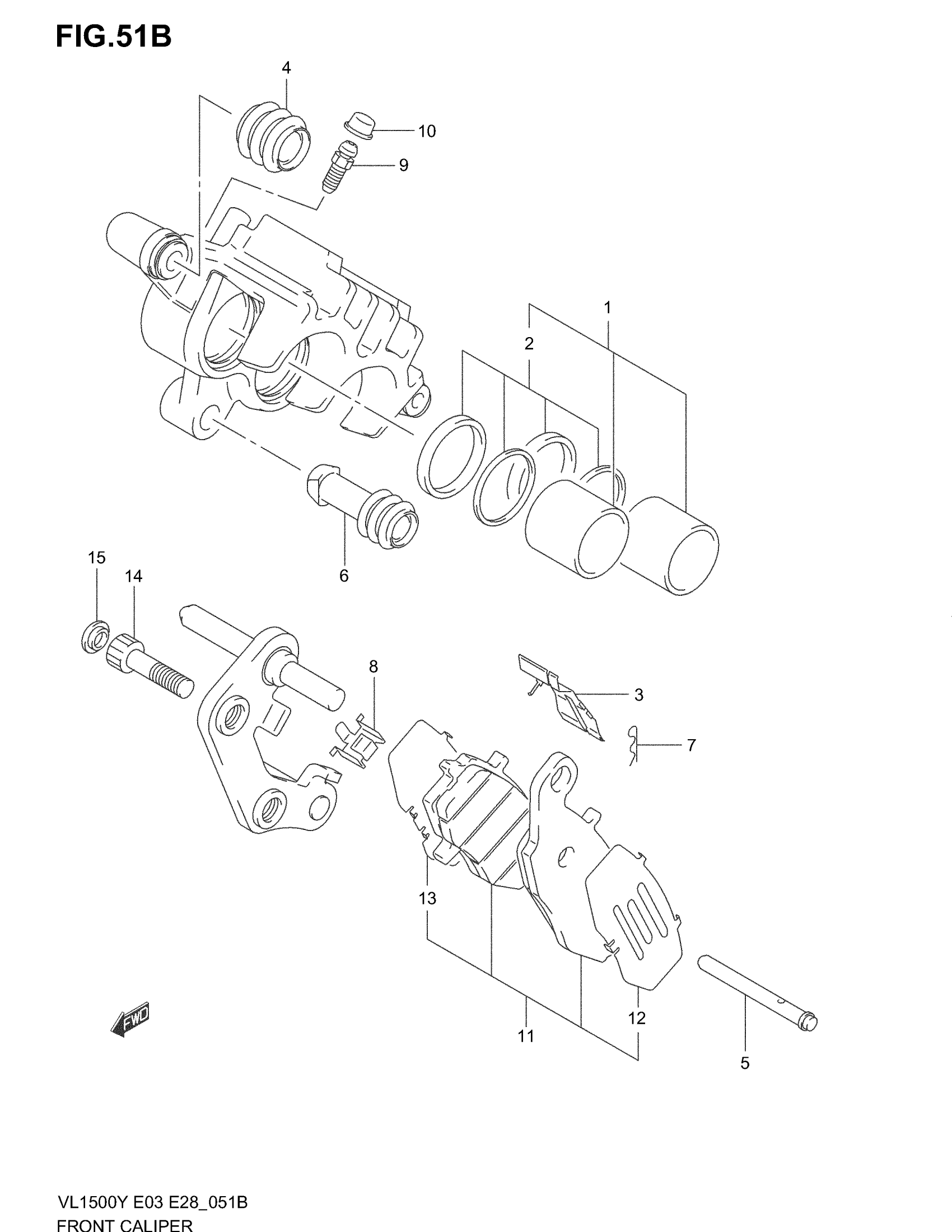

Suzuki VL1500 (2004) FRONT CALIPER (MODEL K2/K3/K4) Diagram
