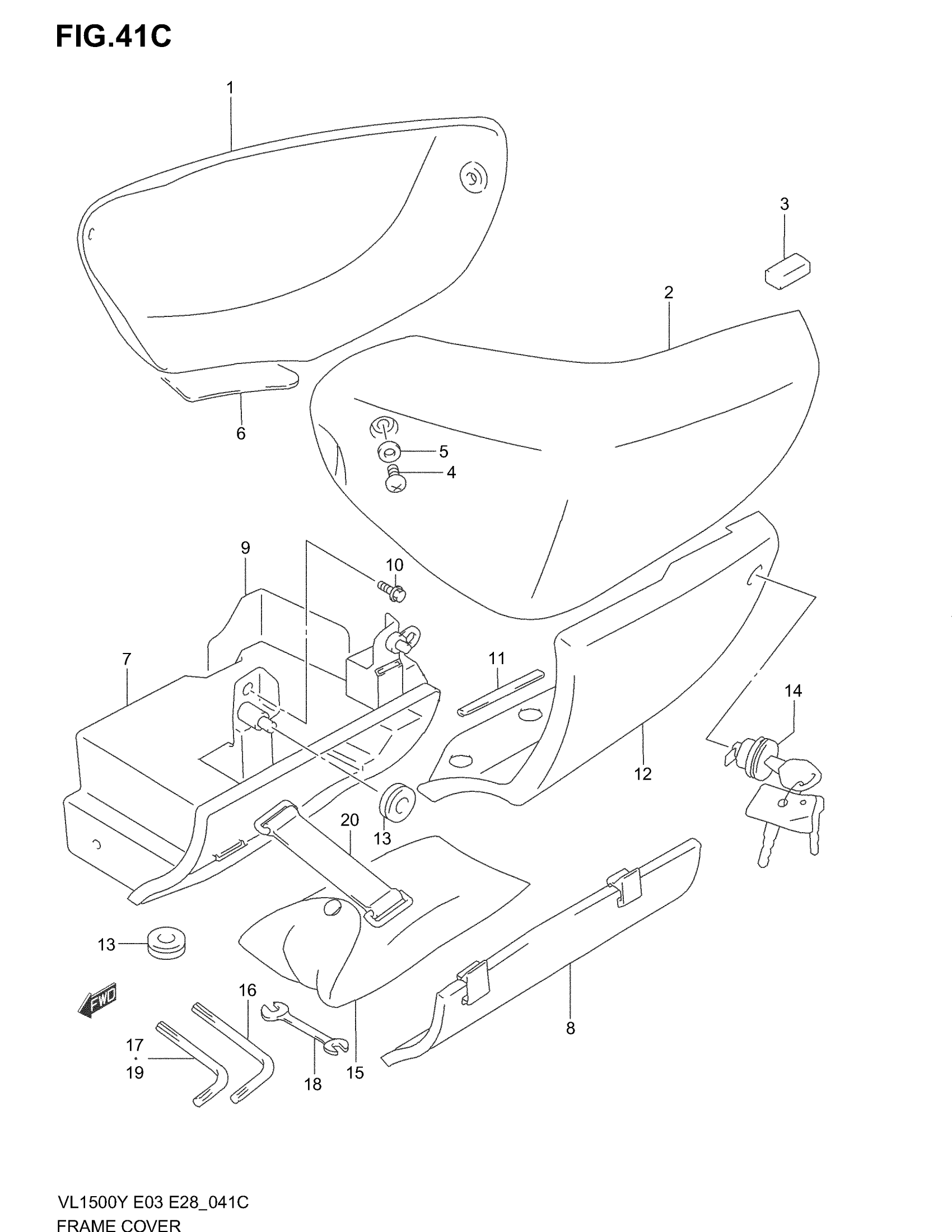

Suzuki VL1500 (2004) FRAME COVER (MODEL K4) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR YAY

47110-10F00-YAY

Unavailable

1

COVER, FRAME RH (SILVER) | FOR AAV

47110-10F00-YV2

Unavailable

1

COVER,FRAME,R(S | FOR AAW This part replaces 47110-10F00-YAR.

47110-10F00-13L

$361.75

2

COVER COMP,FRAM | FOR YAY This part replaces 47210-10F00-YAY.

47210-10F00-13L

$346.60

2

COVER, FRAME LH (SILVER) | FOR AAV

47210-10F00-YV2

Unavailable

2

COVER COMP,FRAM | FOR AAW This part replaces 47210-10F00-YAR.

47210-10F00-13L

$346.60

3

CUSHION

47117-45000

$2.14

4

SCREW

09139-06030

$3.70

5

WASHER

09160-06094

$1.49

6

SHIELD, FRAME COVER RH

47166-10F00

Unavailable

7

BODY, TOOL HOLDER

47431-10F00

Unavailable

8

CAP, TOOL HOLDER

47432-10F00

$29.90

9

SHIELD, BODY

47436-10F00

Unavailable

10

BOLT

09113-06001

$2.73

11

MOLDING, LH

47212-10F00

$5.33

12

COVER, TOOL HOLDER

47440-10F00

Unavailable

13

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.60

14

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

15

TOOL ASSY This part replaces 09800-21016.

09800-21073

$96.88

16

HEXAGON SPANNER, 12

09816-00139

Unavailable

17

HEXAGON SPANNER, 4

09816-00103

$6.17

18

SPANNER (8X10)

09813-00027

Unavailable

19

HEXAGON SPANNER, 5

09816-00059

$8.45

20

BAND, TOOL

09462-00067

$5.11
