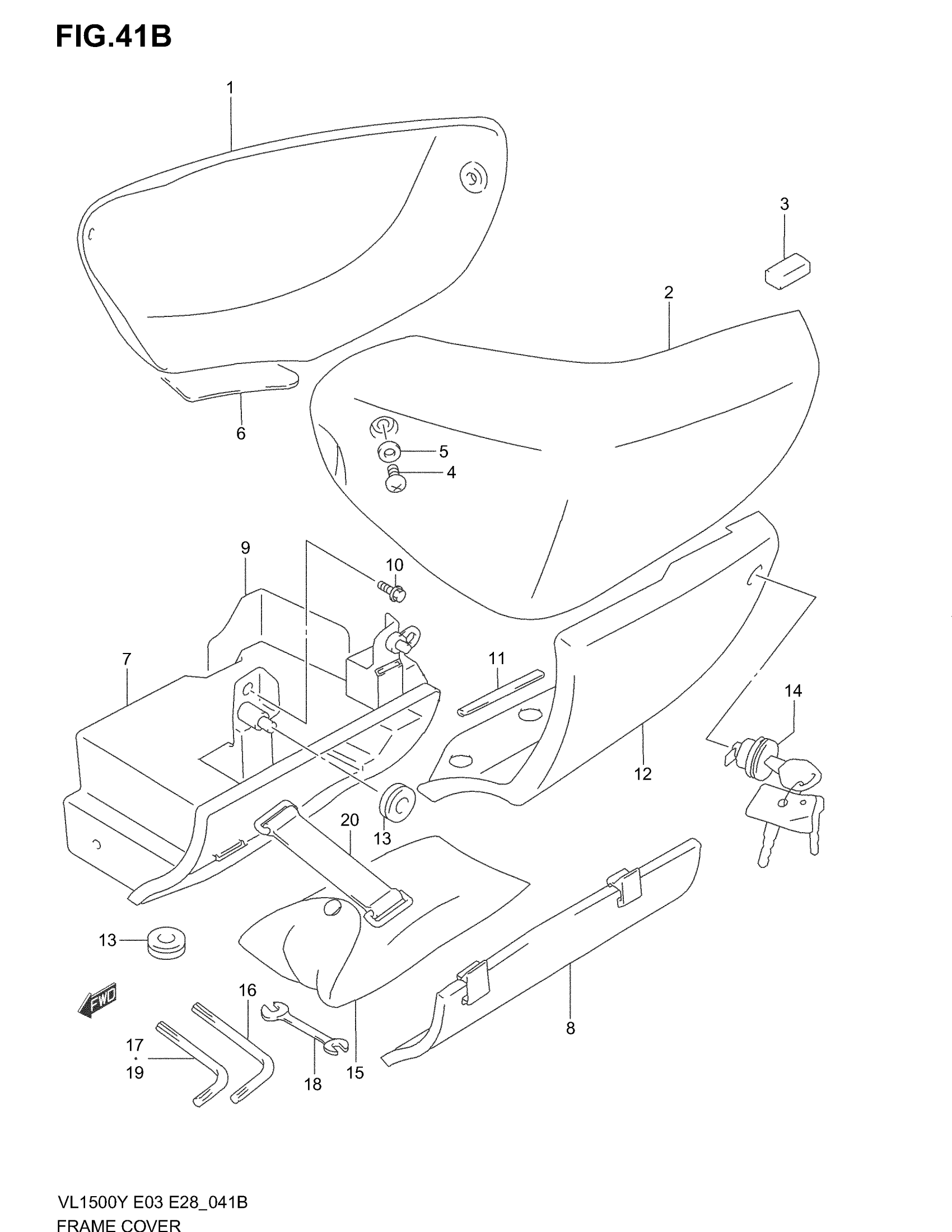

Suzuki VL1500 (2004) FRAME COVER (MODEL K2/K3) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR 33J

47110-10F00-33J

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K2 FOR JE2

47110-10F00-1LF

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL K2 FOR JE3

47110-10F00-YM6

Unavailable

1

COVER, FRAME RH (GRAY) | MODEL K3 FOR LA1

47110-10F00-YU8

Unavailable

1

COVER, FRAME RH (GREEN) | MODEL K3 FOR LT9

47110-10F00-Y7G

Unavailable

2

COVER, FRAME LH (BLACK) | FOR 33J

47210-10F00-33J

Unavailable

2

COVER COMP,FRAM | MODEL K2 FOR JE2 This part replaces 47210-10F00-1LF.

47210-10F00-13L

$346.60

2

COVER, FRAME LH (SILVER) | MODEL K2 FOR JE3

47210-10F00-YM6

Unavailable

2

COVER, FRAME LH (GRAY) | MODEL K3 FOR LA1

47210-10F00-YU8

Unavailable

2

COVER, FRAME LH (GREEN) | MODEL K3 FOR LT9

47210-10F00-Y7G

Unavailable

3

CUSHION

47117-45000

$2.14

4

SCREW

09139-06030

$3.70

5

WASHER

09160-06094

$1.49

6

SHIELD, FRAME COVER RH

47166-10F00

Unavailable

7

BODY, TOOL HOLDER

47431-10F00

Unavailable

8

CAP, TOOL HOLDER

47432-10F00

$29.90

9

SHIELD, BODY

47436-10F00

Unavailable

10

BOLT

09113-06001

$2.73

11

MOLDING, LH

47212-10F00

$5.33

12

COVER, TOOL HOLDER

47440-10F00

Unavailable

13

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.60

14

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

15

TOOL ASSY This part replaces 09800-21016.

09800-21073

$96.88

16

HEXAGON SPANNER, 12

09816-00139

Unavailable

17

HEXAGON SPANNER, 4

09816-00103

$6.17

18

SPANNER (8X10)

09813-00027

Unavailable

19

HEXAGON SPANNER, 5

09816-00059

$8.45

20

BAND, TOOL

09462-00067

$5.11
