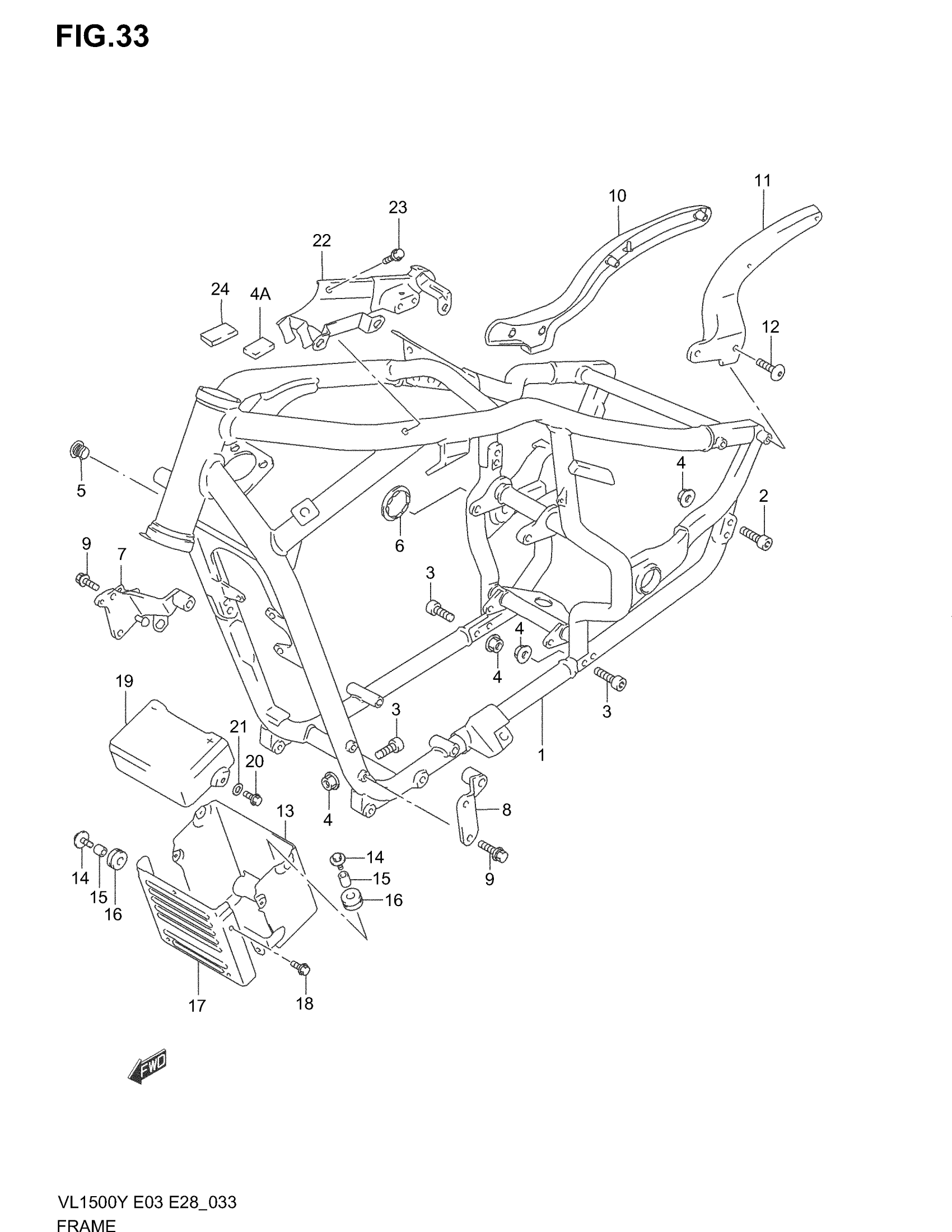

Suzuki VL1500 (2004) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL W/X

41100-10F01-019

Unavailable

1

FRAME (BLACK) | MODEL Y/K1/K2/K3/K4

41100-10F20-019

Unavailable

2

BOLT This part replaces 07130-10253.

07130-1025B

$5.27

3

BOLT This part replaces 07130-10353.

07130-1035B

$5.18

4

NUT This part replaces 08319-31103.

08319-3110A

$2.73

4A

CUSHION

61374-08010

Unavailable

5

CAP,FRAME U-LOC This part replaces 41898-10F00.

41898-10F01

$18.73

6

CAP, PIVOT RH

41899-10F00

Unavailable

7

PLATE, ENGINE MOUNT RH | MODEL W/X This part replaces 41910-10F00.

41910-10F10

Unavailable

7

PLATE, ENGINE MOUNT RH | MODEL Y/K1/K2/K3/K4

41910-10F10

Unavailable

8

PLATE, ENGINE MOUNT LH This part replaces 41920-10F00.

41920-10F10

Unavailable

9

BOLT This part replaces 01580-08303.

01580-0830A

$4.32

10

GRIP, FRAME HANDLE RH | MODEL W This part replaces 41610-10F00.

41610-10F20

Unavailable

10

GRIP, FRAME HANDLE RH | MODEL X This part replaces 41610-10F01.

41610-10F20

Unavailable

10

GRIP, FRAME HANDLE RH | MODEL Y/K1/K2/K3/K4

41610-10F20

Unavailable

11

GRIP, FRAME HANDLE LH | MODEL W This part replaces 41620-10F00.

41620-10F20

Unavailable

11

GRIP, FRAME HANDLE LH | MODEL X This part replaces 41620-10F01.

41620-10F20

Unavailable

11

GRIP, FRAME HANDLE LH | MODEL Y/K1/K2/K3/K4

41620-10F20

Unavailable

12

BOLT | MODEL W

41629-10F00

Unavailable

12

BOLT | MODEL X This part replaces 41629-10F10.

09139-10003

$6.93

12

BOLT | MODEL Y/K1 This part replaces 41629-10F11.

09139-10003

$6.93

12

BOLT | MODEL K2/K3/K4

09139-10003

$6.93

13

HOLDER, BATTERY | MODEL W/X This part replaces 41540-10F00.

41540-10F01

$83.08

13

HOLDER, BATTERY | MODEL Y/K1/K2/K3/K4

41540-10F01

$83.08

14

BOLT

09116-06168

$2.50

15

SPACER

09180-06261

$1.91

16

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

17

HOLDER, BATTERY FRONT

41548-10F00

$40.22

18

SCREW This part replaces 02142-06083.

02142-0608A

$1.49

19

COVER, UPPER | MODEL W/X This part replaces 41549-10F00.

41549-10F02

$29.22

19

COVER, UPPER | MODEL Y/K1/K2/K3/K4 This part replaces 41549-10F01.

41549-10F02

$29.22

20

BOLT, CLAMP | MODEL W/X This part replaces 01550-06123.

01550-0612A

$1.97

20

BOLT (6X12) | MODEL Y/K1/K2/K3/K4 This part replaces 63161-43E00.

09111-06107

$2.60

21

WASHER

09169-06071

$2.50

22

HOLDER, ELECTRIC PARTS

47410-10F00

Unavailable

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

24

CUSHION

11179-45D00

Unavailable
