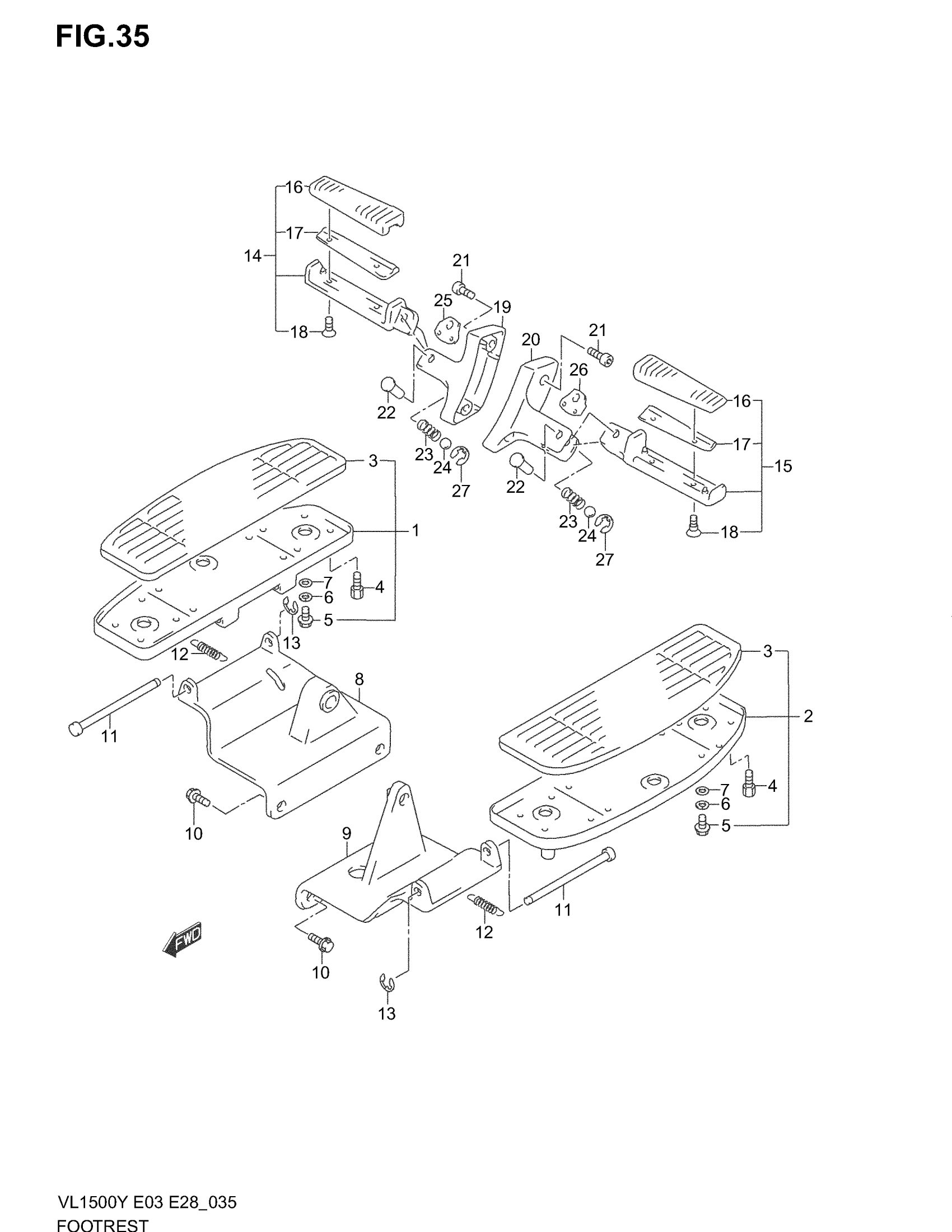

Suzuki VL1500 (2004) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-10F00

Unavailable

2

FOOTREST ASSY, FRONT LH | Includes Item(s) 3 - 7

43502-10F00

Unavailable

3

RUBBER

43550-10F00

Unavailable

4

.BOLT,BANK SENSOR

43576-07D01

$8.85

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

WASHER This part replaces 09160-06503.

09160-06054

$1.62

7

CUSHION

09320-10016

Unavailable

8

BRACKET, FRONT FOOTREST RH

43510-10F00

$230.77

9

BRACKET, FRONT FOOTREST LH

43520-10F00

$230.77

10

BOLT This part replaces 01580-10353.

01580-1035A

$4.77

11

PIN,FRONT FOOTREST

43539-10F00

$8.13

12

SPRING

09443-11033

$4.50

13

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

14

FOOTREST ASSY, PILLION RH | MODEL W/X

43600-48E10

$121.25

14

FOOTREST ASSY,P | MODEL Y/K1/K2/K3/K4 This part replaces 43600-38E00.

43600-38E01

$75.53

15

FOOTREST ASSY, PILLION LH | MODEL W/X

43700-48E10

Unavailable

15

FOOTREST ASSY,P | MODEL Y/K1/K2/K3/K4; Includes Item(s) 16 - 18 This part replaces 43700-38E00.

43700-38E01

$65.73

16

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$8.57

17

PLATE, RUBBER STOP

43632-38A00

$7.37

18

SCREW

09127-05017

$2.47

19

BRACKET, PILLION FOOTREST RH | MODEL W/X This part replaces 43811-10F00.

43811-10F10

$134.22

19

BRACKET, PILLION FOOTREST RH | MODEL Y/K1/K2/K3/K4

43811-10F10

$134.22

20

BRACKET, PILLION FOOTREST LH | MODEL W/X This part replaces 43821-10F00.

43821-10F10

$131.73

20

BRACKET, PILLION FOOTREST LH | MODEL Y/K1/K2/K3/K4

43821-10F10

$131.73

21

BOLT (8X25) This part replaces 09106-08104.

09106-08165

$4.03

22

PIN | MODEL W/X

09208-08014

$4.32

22

PIN | MODEL Y/K1/K2/K3/K4

09208-08010

$2.91

23

SPRING

09440-05005

$1.58

24

BALL

06111-07004

$1.49

25

PLATE, RH

43816-10F00

$6.47

26

PLATE, LH

43826-10F00

$6.47

27

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49
