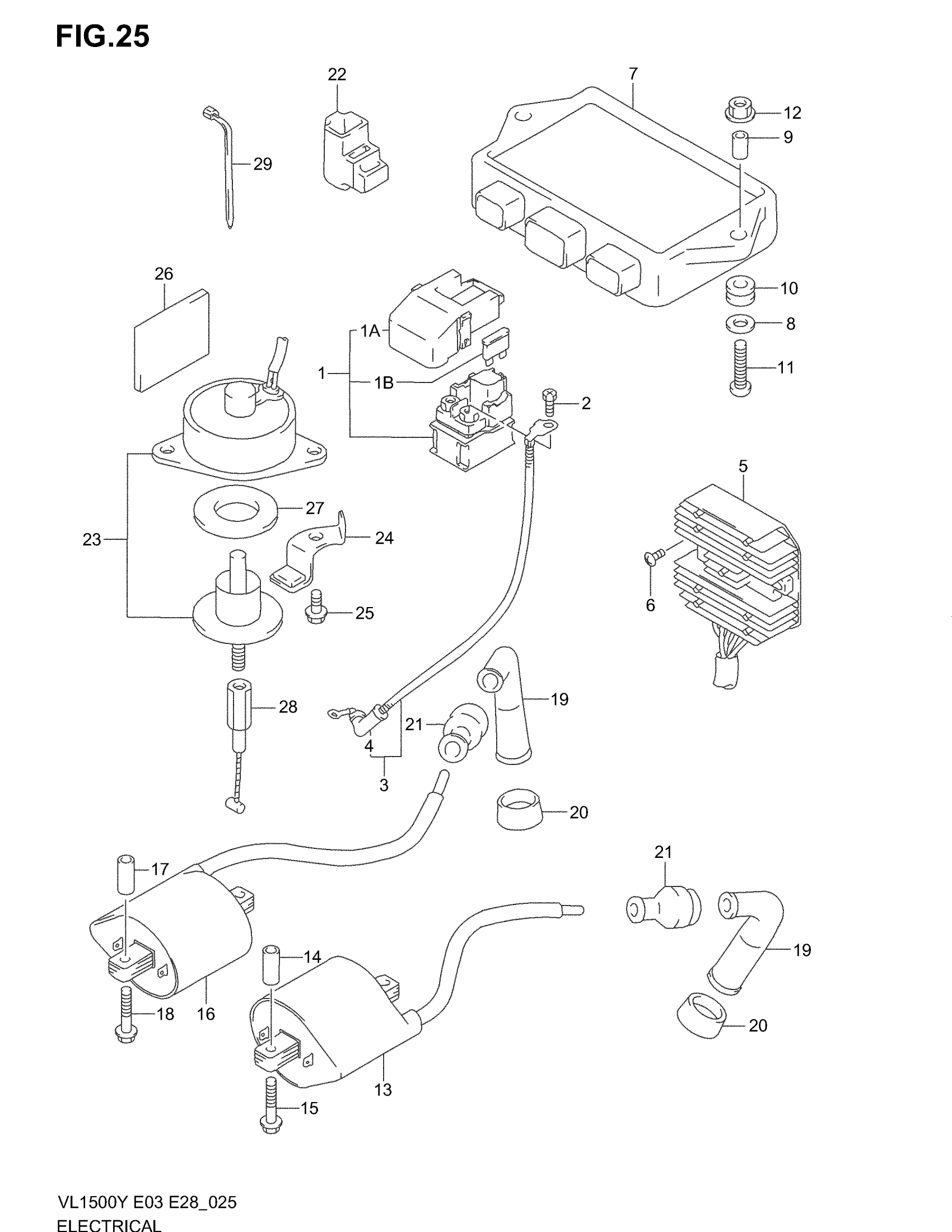

Suzuki VL1500 (2004) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR | Includes Item(s) 1A - 1B This part replaces 31800-21E20.

31800-21E30

$67.32

.COVER This part replaces 31861-21E20.

31861-47E00

$16.15

FUSE, 30A

09481-30101

$2.26

BOLT (6X8)

09128-06013

$1.49

WIRE, STARTER MOTOR LEAD | Includes Item(s) 4

33810-10F00

$41.22

CAP

31861-48B10

$6.55

RECTIFIER ASSY This part replaces 32800-33E00.

32800-44D11

$318.90

SCREW This part replaces 02142-06253.

02142-0625A

$1.49

IGNITER ASSY | MODEL W

32900-10F10

Unavailable

IGNITER ASSY | MODEL X/Y/K1/K2/K3/K4

32900-10F60

Unavailable

WASHER (6.5X20X1.6)

09160-06066

$1.89

SPACER (6.1X8X9.5)

09180-06248

$2.12

CUSHION

09320-09009

$4.64

SCREW This part replaces 02142-06303.

02142-0630B

$2.62

NUT This part replaces 08316-10063.

08316-1006B

$2.50

COIL ASSY,IGNIT This part replaces 33420-38B00.

33420-38B01

$117.70

SPACER (6.4X10X18)

09180-06195

$3.68

BOLT

01547-05403

Unavailable

COIL ASSY,IGNIT This part replaces 33420-10F00.

33420-10F11

$126.62

SPACER (6.4X10X18)

09180-06195

$3.68

BOLT

01547-05403

Unavailable

CAP, SPARK PLUG

33510-38B00

$31.72

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

SOLENOID ASSY, DECOMP

33970-10F00

$327.20

STOPPER, DECOMP SOLENOID

33971-10F00

$6.47

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

CUSHION, DECOMP (8X27X3)

33652-19B00

$6.03

CUSHION, DECOMP

33972-31D10

$5.02

CABLE, DECOMP FRONT

58900-10F00

$17.21

CLAMP, HIGH TENSION (L:225)

09407-25401

$4.66
