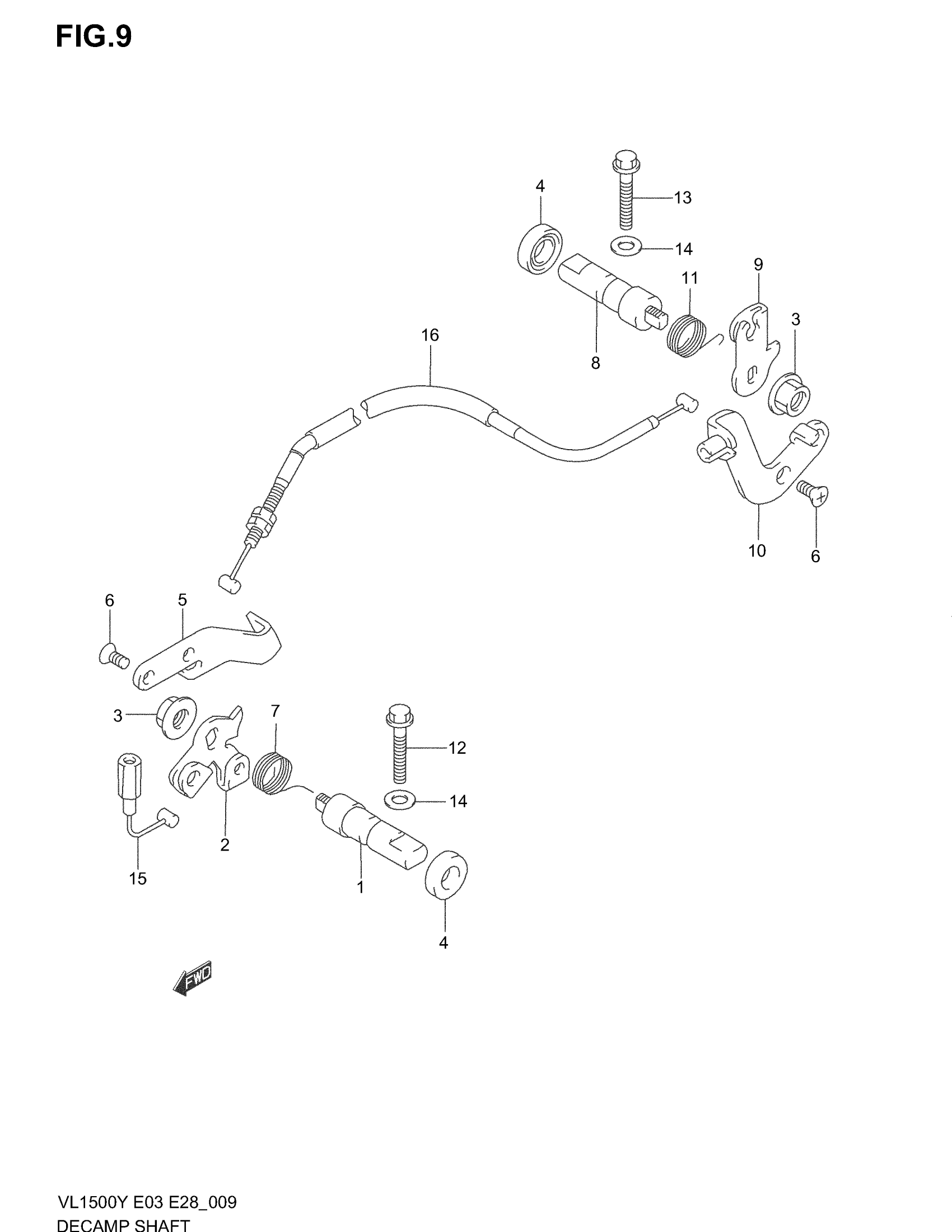

Suzuki VL1500 (2004) DECOMP SHAFT Diagram

#

Description
Price

1

SHAFT, DECOMP FRONT

12939-38B00

Unavailable

2

LEVER, DECOMP FRONT

12942-10F00

$9.42

3

NUT This part replaces 08316-10083.

08316-1008B

$2.66

4

OIL SEAL (10X20X6)

09282-10012

$7.98

5

HOLDER, DECOMP CABLE FRONT

12944-10F00

Unavailable

6

SCREW This part replaces 02122-05103.

02122-0510A

Unavailable

7

SPRING, DECOMP SHAFT FRONT

09448-17031

Unavailable

8

SHAFT, DECOMP REAR

12941-38B00

Unavailable

9

LEVER, DECOMP REAR

12952-10F00

Unavailable

10

HOLDER, DECOMP CABLE REAR

12950-10F00

Unavailable

11

SPRING, DECOMP SHAFT REAR

09448-17020

Unavailable

12

BOLT | MODEL W/X/Y This part replaces 01550-06303.

01550-0630A

$2.32

12

BOLT, RECTIFIER | MODEL K1/K2/K3/K4 This part replaces 02162-06303.

02162-0630A

$2.07

13

BOLT | MODEL W/X/Y This part replaces 01550-06253.

01550-0625A

$1.97

13

SCREW | MODEL K1/K2/K3/K4 This part replaces 02162-06253.

02162-0625A

$1.78

14

GASKET

09168-06023

$2.35

15

CABLE, DECOMP FRONT

58900-10F00

$17.21

16

CABLE, DECOMP REAR This part replaces 58910-10F00.

58910-10F10

$42.27
