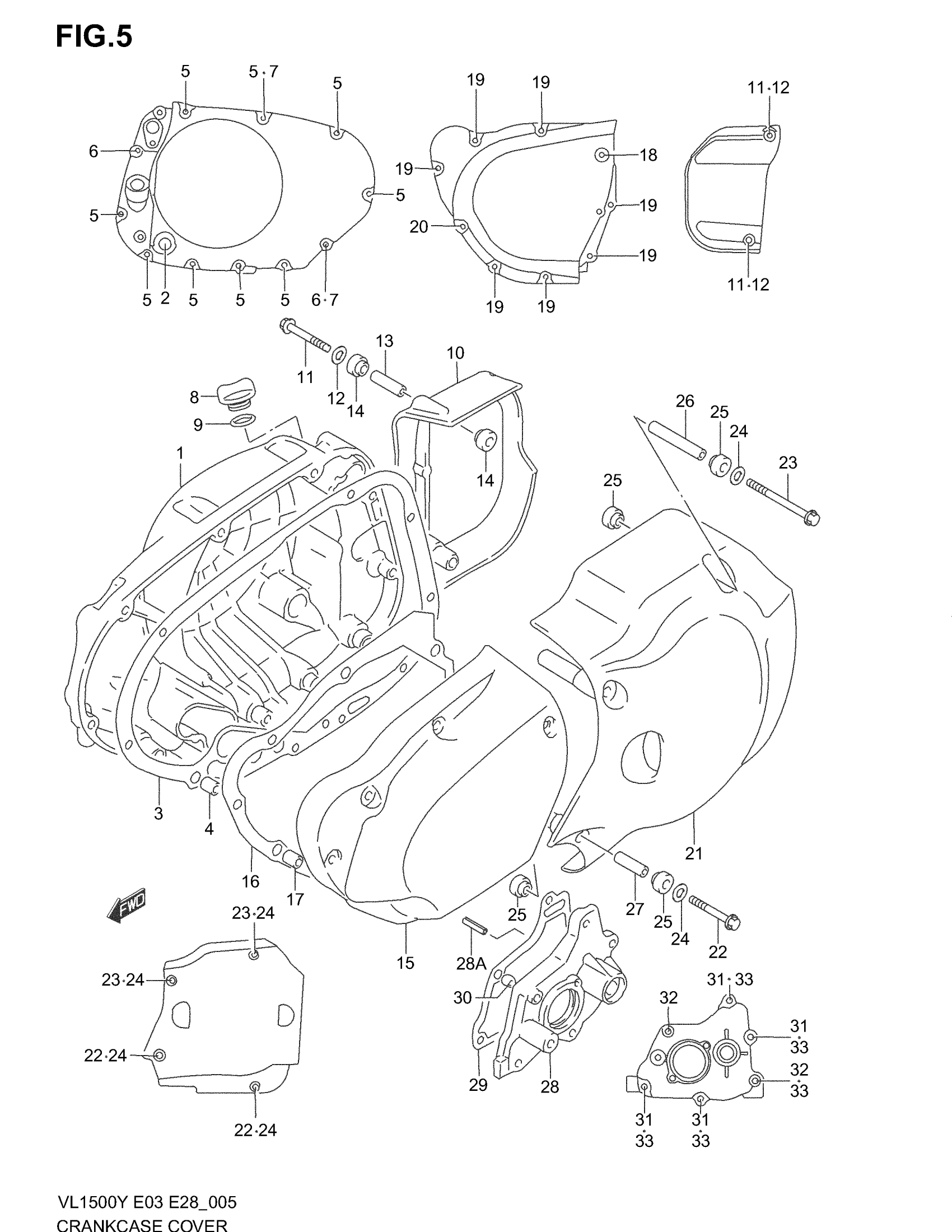

Suzuki VL1500 (2004) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-10F00

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER This part replaces 11482-38B10.

11482-38B20

$23.07

4

PIN

04211-09189

$1.65

5

BOLT

01547-06307

$2.03

6

BOLT

01547-06407

$2.32

7

GASKET (5.8X11X1.2) | MODEL W

09168-06024

$2.20

7

GASKET (5.8X13X1.2) | MODEL X/Y/K1/K2/K3/K4

09168-06023

$2.35

8

PLUG, OIL FILLER | MODEL W

09259-20007

$7.53

8

.PLUG | MODEL X/Y/K1/K2/K3/K4 This part replaces 09259-20008.

09259-20008-XC0

$7.50

9

O RING

09280-17003

$1.65

10

COVER, CLUTCH REAR

11381-10F00

$204.20

11

BOLT

07130-06457

$4.17

12

WASHER

09160-06125

$1.91

13

SPACER

09180-06277

$3.89

14

CUSHION

09161-09005

$2.36

15

COVER, GENERATOR

11351-10F00

$495.37

16

GASKET, GENERATOR COVER This part replaces 11483-10F00.

11483-10F10

$14.26

17

PIN

09206-11017

$6.30

18

BOLT

01547-06957

$3.43

19

BOLT

01547-06357

$2.03

20

BOLT

01547-06457

$2.32

21

COVER, SECONDARY DRIVE UNIT

11361-10F00

Unavailable

22

BOLT

01547-06407

$2.32

23

BOLT

01547-06707

$2.75

24

WASHER

09160-06125

$1.91

25

CUSHION

09161-09005

$2.36

26

SPACER (L:55.9)

09180-06233

$6.62

27

SPACER (L:26.0)

09180-06302

$6.13

28

COVER, GEAR SHIFT | Includes Item(s) 28A

11370-10F00

$104.75

28A

PIN, GEAR SHIFT COVER

09205-03023

$2.07

29

GASKET, GEAR SHIFT COVER This part replaces 11485-10F00.

11485-10F10

$6.54

30

PIN

04211-09109

$1.65

31

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

32

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

33

GASKET (5.8X11X1.2) | MODEL W

09168-06024

$2.20

33

GASKET (5.8X13X1.2) | MODEL X/Y/K1/K2/K3/K4

09168-06023

$2.35
