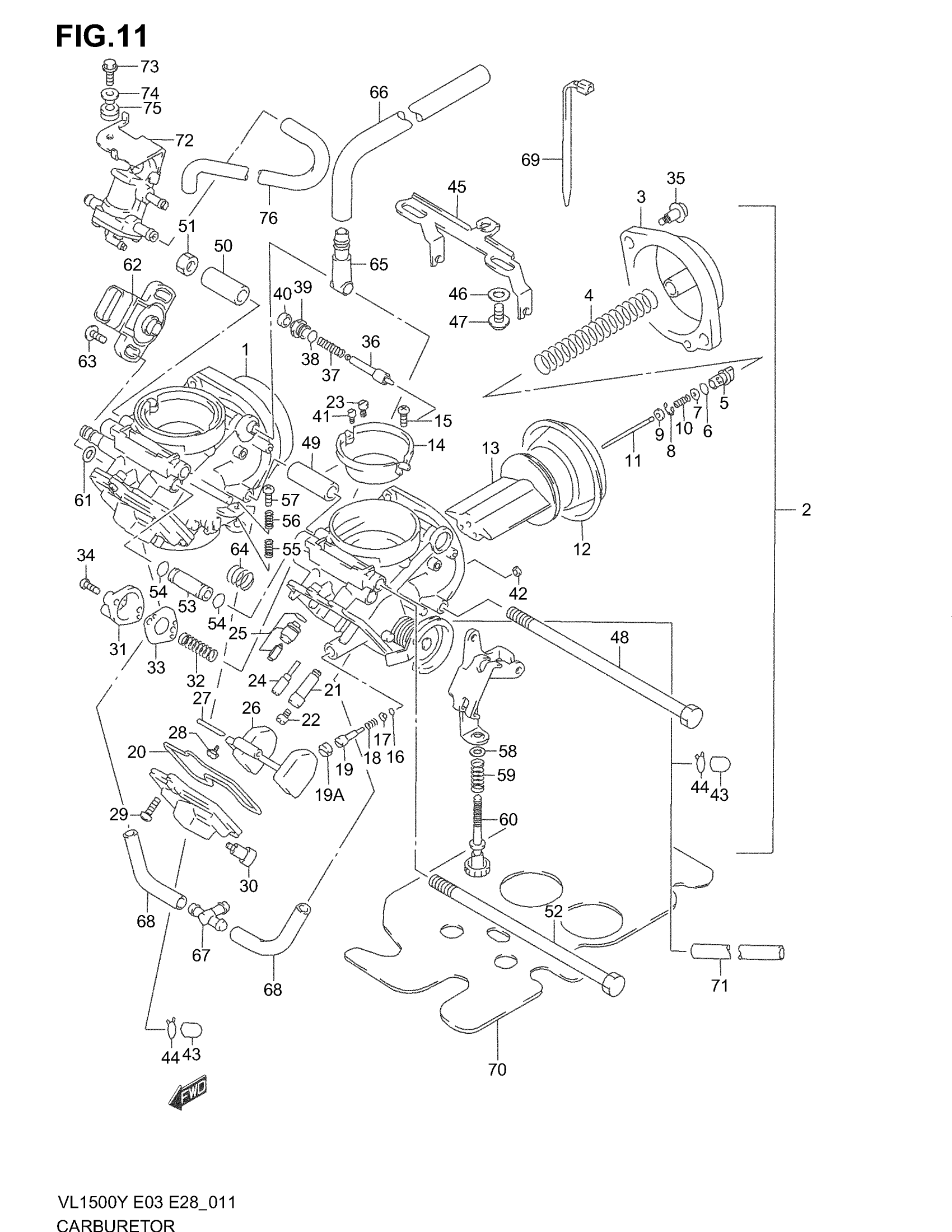

Suzuki VL1500 (2004) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, RH | MODEL W/X/Y This part replaces 13201-10F10.

13201-10F11

Unavailable

1

CARBURETOR ASSY, RH | MODEL K1/K2/K3/K4

13201-10F11

Unavailable

1

CARBURETOR ASSY, RH | MODEL W E33

13201-10F41

Unavailable

1

CARBURETOR ASSY, RH | MODEL X/Y/K1/K2/K3/K4 E33

13201-10F70

Unavailable

2

CARBURETOR ASSY, LH | MODEL W/X/Y This part replaces 13202-10F10.

13202-10F12

Unavailable

2

CARBURETOR ASSY, LH | MODEL K1/K2/K3/K4

13202-10F12

Unavailable

2

CARBURETOR ASSY, LH | MODEL W E33

13202-10F41

Unavailable

2

CARBURETOR ASSY, LH | MODEL X/Y E33 This part replaces 13202-10F70.

13202-10F71

Unavailable

2

CARBURETOR ASSY, LH | MODEL K1/K2/K3/K4 E33; Includes Item(s) 3 - 44

13202-10F71

Unavailable

3

COVER ASSY, DIAPHRAGM

13502-34E00

Unavailable

4

SPRING

13573-10F00

$11.23

5

HOLDER

13418-33E00

$5.68

6

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

7

WASHER

13382-44030

$3.71

8

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

9

RING | MODEL W/X This part replaces 13387-33E00.

13387-44030

$5.83

9

RING | MODEL Y/K1/K2/K3/K4

13387-44030

$5.83

10

SPRING

13481-33E00

$3.70

11

NEEDLE, JET (5D95-56-1) | RH

13383-10F20

$20.10

11

NEEDLE, JET (5E09-56-1) | LH

13383-10F30

$20.10

12

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

13

VALVE, PISTON

13501-34E00

$63.76

14

FUNNEL

13667-34E00

Unavailable

15

SCREW

02112-04107

$1.55

16

O-RING This part replaces 13295-29900.

13295-29901

$4.34

17

WASHER

13291-29900

$1.98

18

SPRING,THROTTLE SCREW

13268-48700

$4.34

19

ADJUSTER (2 1/4) | RH

13279-33E00

$12.48

19

ADJUSTER (2 1/8) | LH

13279-33E00

$12.48

19A

PLUG

13281-05A00

$4.60

20

O RING

13258-33E00

$10.23

21

HOLDER, JET

13385-33E00

$22.74

22

JET, MAIN (112.5) | RH

09491-22014

$17.37

22

JET, MAIN (110) | LH

09491-22013

$11.38

23

JET, PILOT AIR (#55)

09491-55004

$11.38

24

JET, PILOT (32.5)

09492-32010

$14.76

25

VALVE ASSY,NEED This part replaces 13370-33E80.

13370-33E81

$55.10

26

FLOAT ASSY

13250-33E00

$35.41

27

PIN, FLOAT

13254-92910

$2.80

28

SCREW

13602-05A10

$3.56

29

SCREW

13603-14A00

$4.02

30

SCREW, DRAIN | MODEL W/X This part replaces 13247-13A00.

13247-02340

$4.99

30

SCREW, DRAIN | MODEL Y/K1/K2

13247-02340

$4.99

30

SCREW, DRAIN | MODEL K3/K4 This part replaces 13247-13A00.

13247-02340

$4.99

31

COVER ASSY

13502-10F00

$39.68

32

SPRING

13271-10F10

Unavailable

33

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

$16.79

34

SCREW

13601-04148

$2.81

35

SCREW

13247-33E00

$2.92

36

PLUNGER

13411-05300

$24.17

37

SPRING

13417-26D00

$6.08

38

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

39

.HOLDER, GUIDE

13418-44080

$10.00

40

.CAP, STARTER VALVE

13682-31210

$4.37

41

JET, PILOT AIR (1.9)

09493-38004

$16.87

42

O RING

13295-33010

$4.48

43

CAP

13274-84000

$3.82

43

CAP | MODEL W E33

13274-84000

$3.82

43

CAP | MODEL X/Y/K1/K2/K3/K4 E33

13274-84000

$3.82

44

CLIP

09401-06101

$2.03

44

CLIP | MODEL W E33

09401-06101

$2.03

44

CLIP | MODEL X/Y/K1/K2/K3/K4 E33

09401-06101

$2.03

45

LEVER

13413-10F00

Unavailable

46

PACKING

13557-33E00

$3.47

47

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

48

BOLT

13612-10F10

Unavailable

49

PIPE

13685-10F20

Unavailable

50

PIPE

13685-10F30

Unavailable

51

NUT

13324-03010

Unavailable

52

BOLT

13612-10F00

Unavailable

53

PIPE

13685-10F10

Unavailable

54

O RING

13246-87400

$4.11

55

SPRING

13268-96111

$4.35

56

SPRING

13271-44B00

$3.89

57

SCREW

13267-44B00

$4.10

58

WASHER

13392-78B00

Unavailable

59

SPRING

13271-33C00

$6.03

60

ADJUST SCREW ASSY

13267-10F00

Unavailable

61

WASHER

13663-31010

$2.80

62

SENSOR ASSY,THR This part replaces 13580-02F00.

13580-02F01

$86.81

63

SCREW, SENSOR

13605-20C00

$3.84

64

SPRING

13573-06C10

$7.77

65

HOSE

13683-10F00

$12.39

66

HOSE, AIR VENT

13683-21E10

$42.22

66

HOSE ASSY | MODEL W E33

13245-10F40

Unavailable

66

HOSE ASSY | MODEL X/Y/K1/K2/K3/K4 E33

13245-10F70

Unavailable

67

NIPPLE | E33

13685-04F10

$11.07

68

HOSE (3.5X7.5X600) | E33 L:600!40 This part replaces 09355-35755-600.

09355-35007-600

$6.94

69

CLAMP, AIR VENT HOSE | E33

09407-14403

$2.26

70

SHEET, HEAT SHIELD | E33

13840-10F00

Unavailable

71

HOSE | MODEL X/Y/K1/K2/K3/K4 E33 This part replaces 13683-19B80.

13683-19B81

$17.37

72

VALVE, AIR VENT | MODEL X/Y/K1/K2/K3/K4 E33

13590-10F00

$202.52

73

BOLT | MODEL X/Y/K1/K2/K3/K4 E33 This part replaces 01550-06203.

01550-0620A

$1.97

74

WASHER | MODEL X/Y/K1/K2/K3/K4 E33

09169-07007

Unavailable

75

CUSHION | MODEL X/Y/K1/K2/K3/K4 E33

09320-09009

$4.64

76

HOSE, AIR VENT (9X14X600) | MODEL X/Y/K1/K2/K3/K4 E33 L:600!440

09355-90145-600

$14.57
